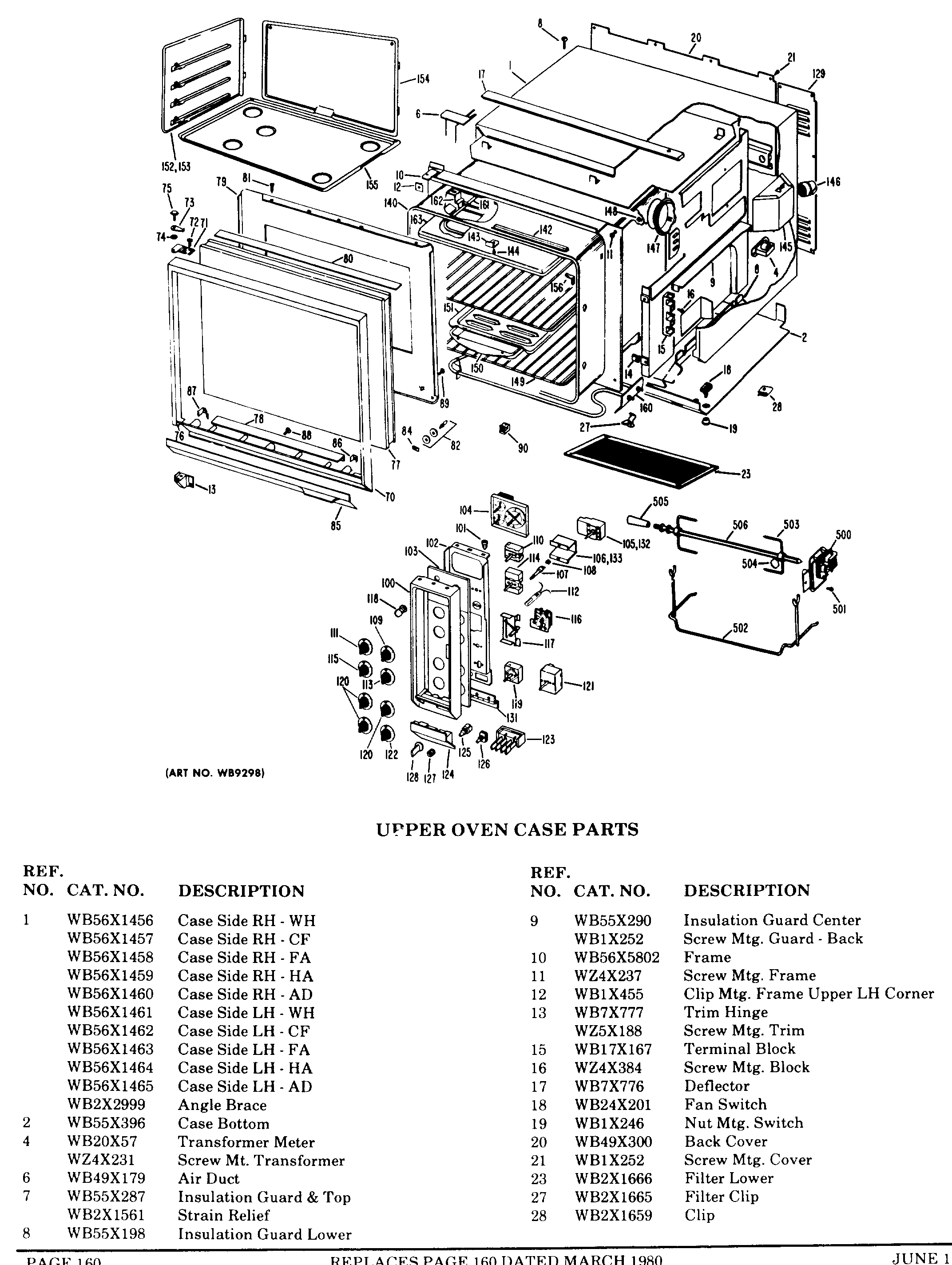

JHP67G*V5 UPPER OVEN CASE PARTS

JHP67G*V5 UPPER OVEN CASE PARTS

Written by

in

JHP67G*V5 UPPER OVEN CASE PARTS

Products

PositionProduct
1CASE SIDE, LH-CF
1ANGLE BRACE
1CASE SIDE, LH-FA
1CASE SIDE-LT WHITE
1CASE SIDE-RT WHITE
1CASE SIDE RH HA
1CASE SIDE LH HA
1CASE SIDE-RT-
1CASE SIDE, RH-CF
1CASE SIDE, RH-FA
1GEN WB56X1465
2CASE BOTTOM
4GEN WB20X0057
6GEN WB49X0179
7GEN WB02X1561
7GUARD TOP INSULATION
8INSULATION GUARD-LOWER
9INSULATION GUARD
10FRONT FRAME ASM
12GEN WB01X0455
13GEN WZ05X0188
13HINGE TRIM-UPPER OVEN
15BLOCK TERM DISTRIBUTION
16GEN WZ04X0384
17GEN WB07X0776
18GEN WB24X0201
19NUT SWITCH
20COVER BACK
23GEN WB02X1666
27GEN WB02X1665
28SPEEDNUT
70GEN WB07X0778
71HINGE PLATE
72GEN WB01X0425
73GEN WB02X2655
74GEN WB01X0517
76GEN WB01X0459
77WINDOW ASSEMBLY
78WINDOW BRACKET
79OV DOOR LINING-UPPER
80GEN WB02X2823
81GEN WZ04X0336
82DOOR STRIKE
85DOOR HANDLE-UPPER OVEN
86HANDLE CLIP-UPPER OVEN
87HANDLE SPRING CLIP
89GEN WZ05X0187
90SPRING CATCH
100GEN WZ04X0237
100GEN WB07X0779
101GEN WB01X0519
102INSTRUMENT BRACKET
102GEN WB02X1422
103GEN WB36X0511
104GEN WB19X0123
104NUT
105THERMOSTAT – UPPER OVEN
105GEN WB02X6274
106THERMOSTAT BRACKET-UPP
106WZ4X345D GE Screw Package 12 C92
107SHAFT EXTENSION-LOWER OV
107SHAFT EXTENSION-UPPER
108CLIP SPRING
109THERMO KNOB
110GEN WB22X0035
111OVEN KNOB
113GEN WB03X0463
114GEN WB22X5092
115GEN WB03X0462
116CIRCUIT BOARD ASM THERMO
117GEN WB07X0981
118TIMER KNOB
118WB1X536 GE Oven Screw
119WB21X36771 GE Surface Element Switch
119SCR 8-32 M PHR 3/16 S
119NEON LAMP 118V
120GEN WB03X0477
121GEN WB01X0277
121GEN WB21X0231
122GEN WB03X0478
123GEN WB23X0074
124WZ5X158D GE Screw Package of 12
124GEN WB07X0780
125GEN WB24X5093
126GEN WB01X0245
126OVEN & RET. LIGHT SW.
127COMPRESSION SPRING
128PUSH BUTTON
129INSTRUMENT COVER
131CONTROL PANEL HINGE-UP
132GEN WB24X0184
132SCR 8/32 TF FLR 5/16 S
133GEN WB02
