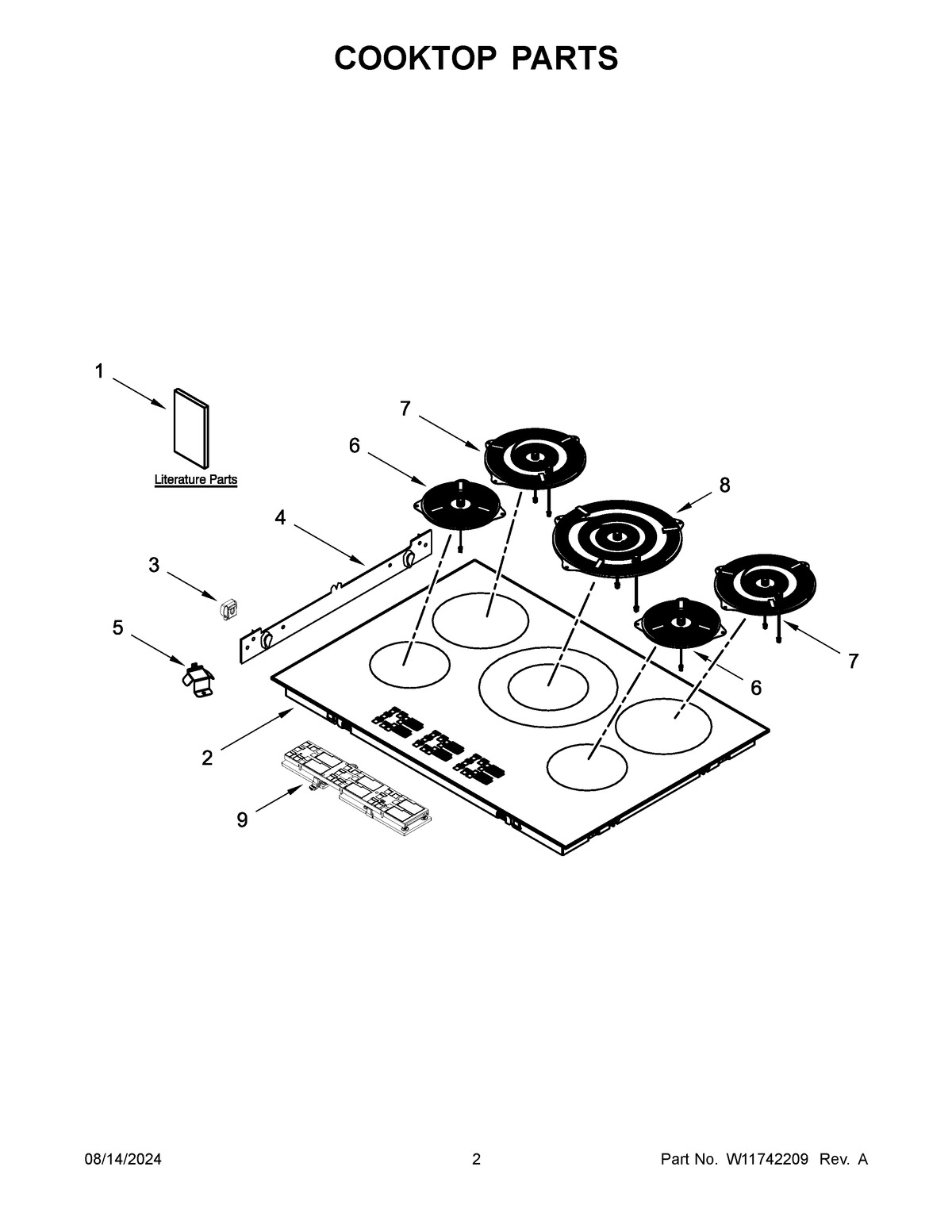

JIC4530KB02 02 – COOKTOP PARTS

Written by

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1C	TECH SHEET
1B	OWNER'S MANUAL
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
2	W11638079 Whirlpool Cooktop
3	W11495019 Whirlpool Spring
4	BRKT-SUPRT
5	FILTER SUPPORT
6	ELEMENT (6 INCH) (LEFT REAR AND RIGHT FRONT)
7	ELEMENT (7 INCH) (RIGHT FRONT)
8	W11560537 Whirlpool Hotplate
9	W11727274-includeCORE Whirlpool Console+Core
