JIC4536KS01 02 – COOKTOP PARTS

JIC4536KS01 02 – COOKTOP PARTS

Written by

in

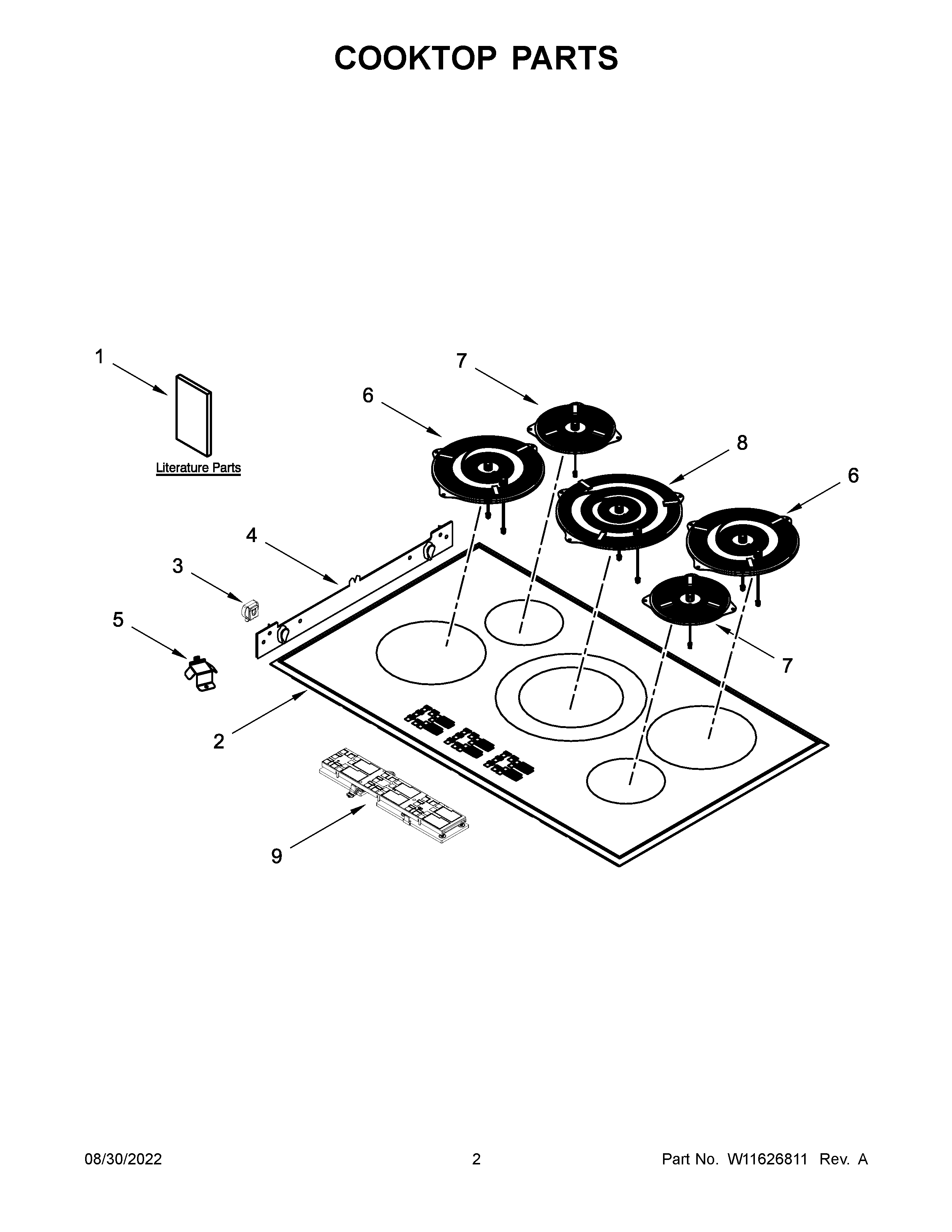

JIC4536KS01 02 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AINSTRUCTIONS, UNDERCOUNTER INSTALLATION
1BOWNER'S MANUAL
1CTECH SHEET
2GLASS COOKTOP ASSEMBLY (INCLUDES STAINLESS TRIM)
3W11495019 Whirlpool Spring
4BRKT-SUPRT
5FILTER SUPPORT
6W11586461 Whirlpool Hotplate
7ELEMENT (6 INCH) (LEFT REAR AND RIGHT FRONT)
8W11586463 Whirlpool Hotplate
9W11727272-includeCORE Whirlpool Console+Core
