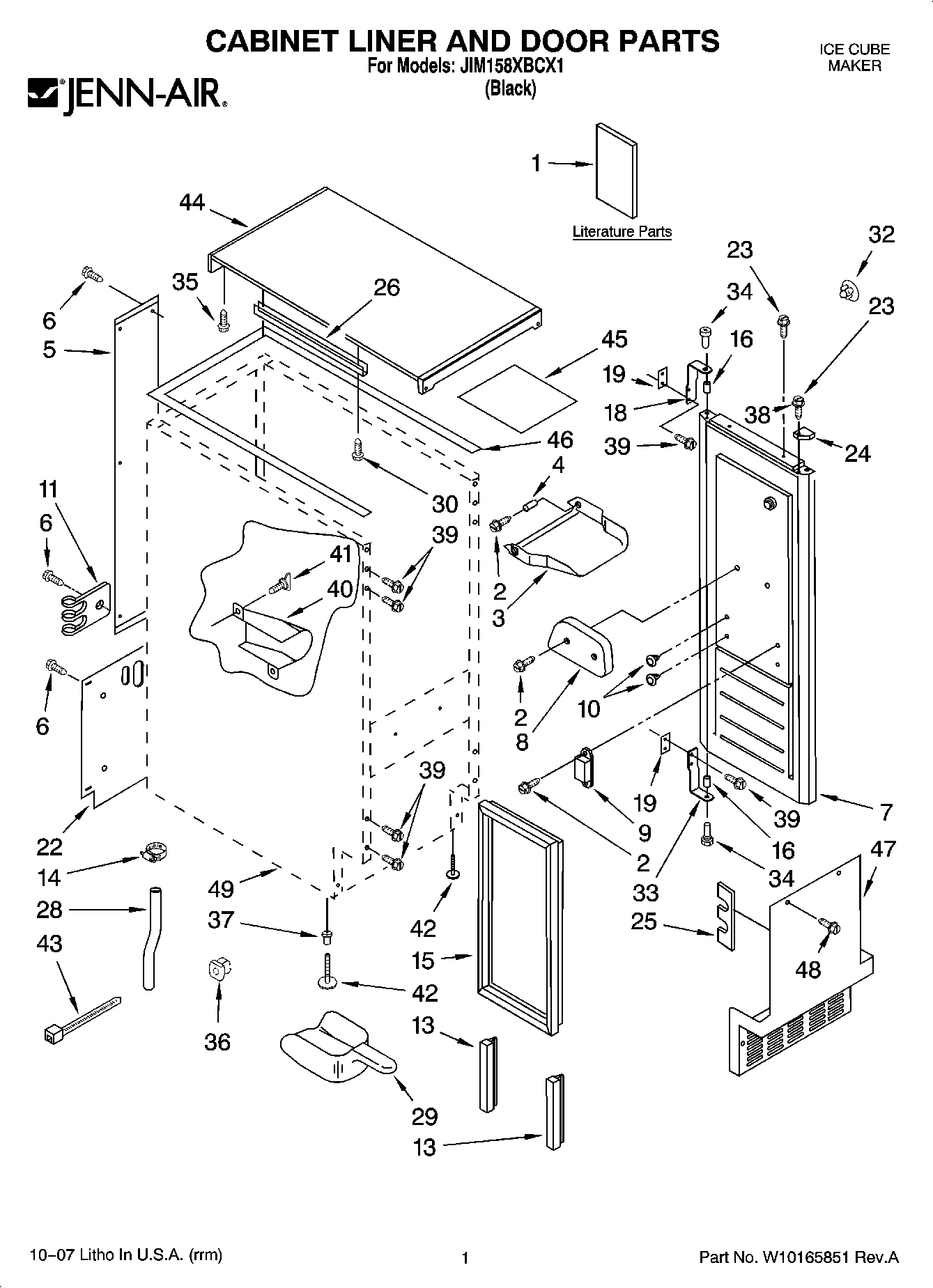

JIM158XBCX1 01 – CABINET LINER AND DOOR PARTS

JIM158XBCX1 01 – CABINET LINER AND DOOR PARTS

Written by

in

JIM158XBCX1 01 – CABINET LINER AND DOOR PARTS

Products

Position	Product
1	MAY W10136129
1	MAY 2324311
2	SCREW (STAINLESS)
3	MAY 2185742
4	SPACER
5	COVER, WIRING
6	MAY 489442
7	Door
8	MAY 2185695
9	MAY 2217393
10	MAY 941839
11	Clip, Tube
13	MAY 2217367
14	MAY 489503
15	GASKET, DOOR
16	MAY 2185640
18	MAY W10136166
19	MAY 2185709
22	Cover Unit
23	Screw
24	Filler, Endcap (Left Side)
24	Filler, Endcap (Right Side)
25	MAY 2185756
26	MAY 2185691
28	MAY 2185989
29	MAY 585158
30	SCREW (STAINLESS)
32	Hole Plug, Handle
33	MAY W10136164
34	PIN, HINGE
35	SCREW
36	NUT, PUSH-IN
37	NUT
38	SCREW
39	MAY 489423
40	HOLDER, SCOOP
41	MAY 8281228
42	LEG, LEVELING
43	MAY 2155774
44	Top
45	MAY 2185690
46	GASKET, TOP PANEL
47	Grill, Front
48	MAY 489474
