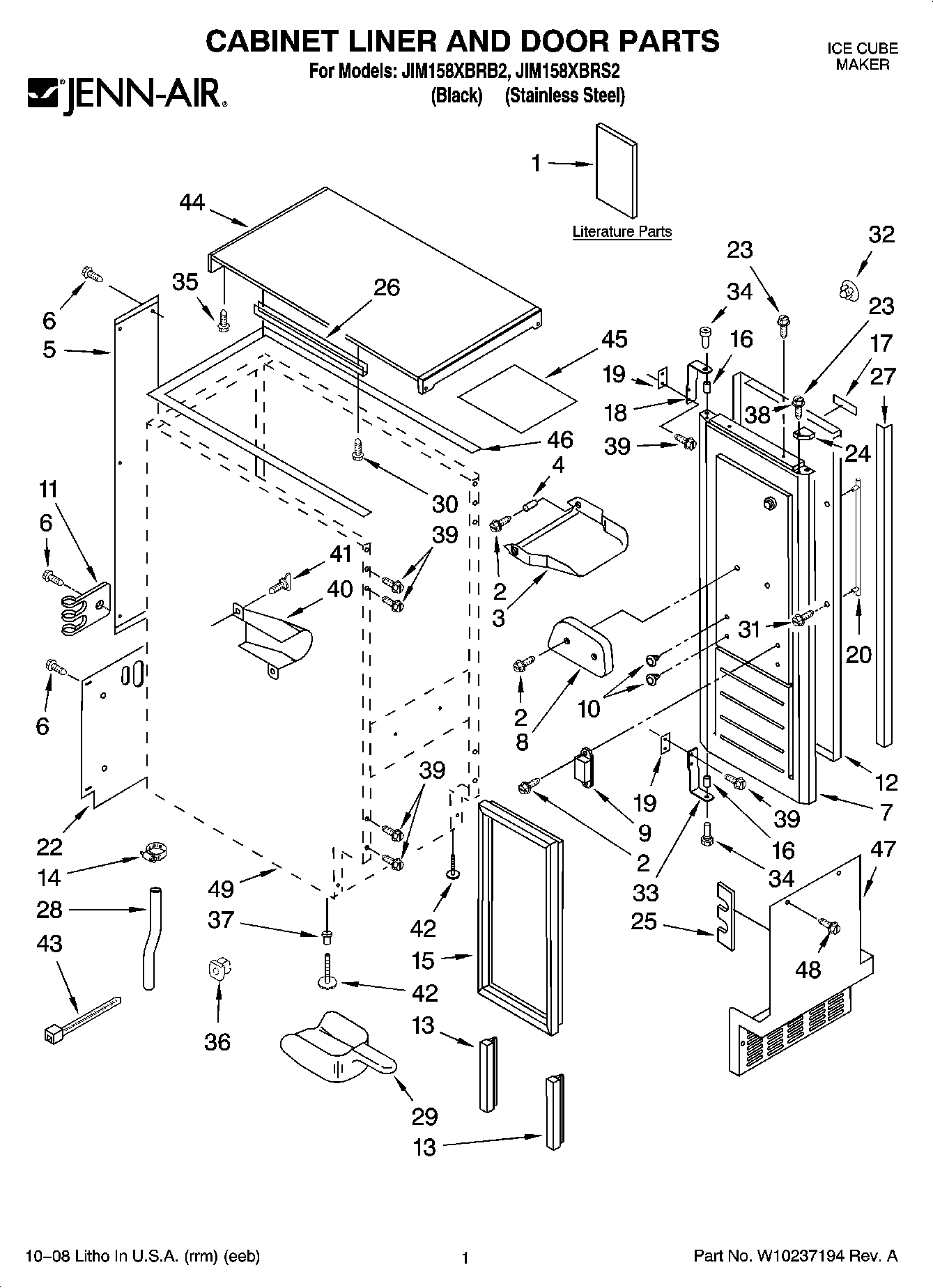

JIM158XBRB2 01 – CABINET LINER AND DOOR PARTS

Products

Position	Product
1	MAY W10163556
1	MAY W10122019
2	SCREW (STAINLESS)
3	MAY 2185742
4	SPACER
5	COVER, WIRING
6	MAY 489442
7	Door
8	MAY 2185695
9	MAY 2217393
10	MAY 941839
11	Clip, Tube
12	MAY W10122008
12	MAY W10122051
13	MAY 2217367
14	MAY 489503
15	GASKET, DOOR
16	MAY 2185640
17	12848704 Whirlpool Refrigerator Nameplate
18	MAY 2185710
19	MAY 2185709
20	MAY W10122050
22	Cover Unit
23	Screw
24	Filler, Endcap (Left Side)
24	Filler, Endcap (Right Side)
25	MAY 2185756
26	MAY 2185691
27	Grommet, Edge Guard (2)
28	MAY 2185989
29	MAY 585158
30	SCREW (STAINLESS)
31	MAY 3400237
32	Hole Plug, Handle
33	MAY 2185711
34	PIN, HINGE
35	SCREW
36	Nut, Push-In
37	NUT
38	SCREW
39	MAY 8281265
40	HOLDER, SCOOP
41	MAY 8281228
42	LEG, LEVELING
43	MAY 2155774
44	Top
45	MAY 2185690
46	MAY W10163530
47	Grill, Front
48	MAY 489474
