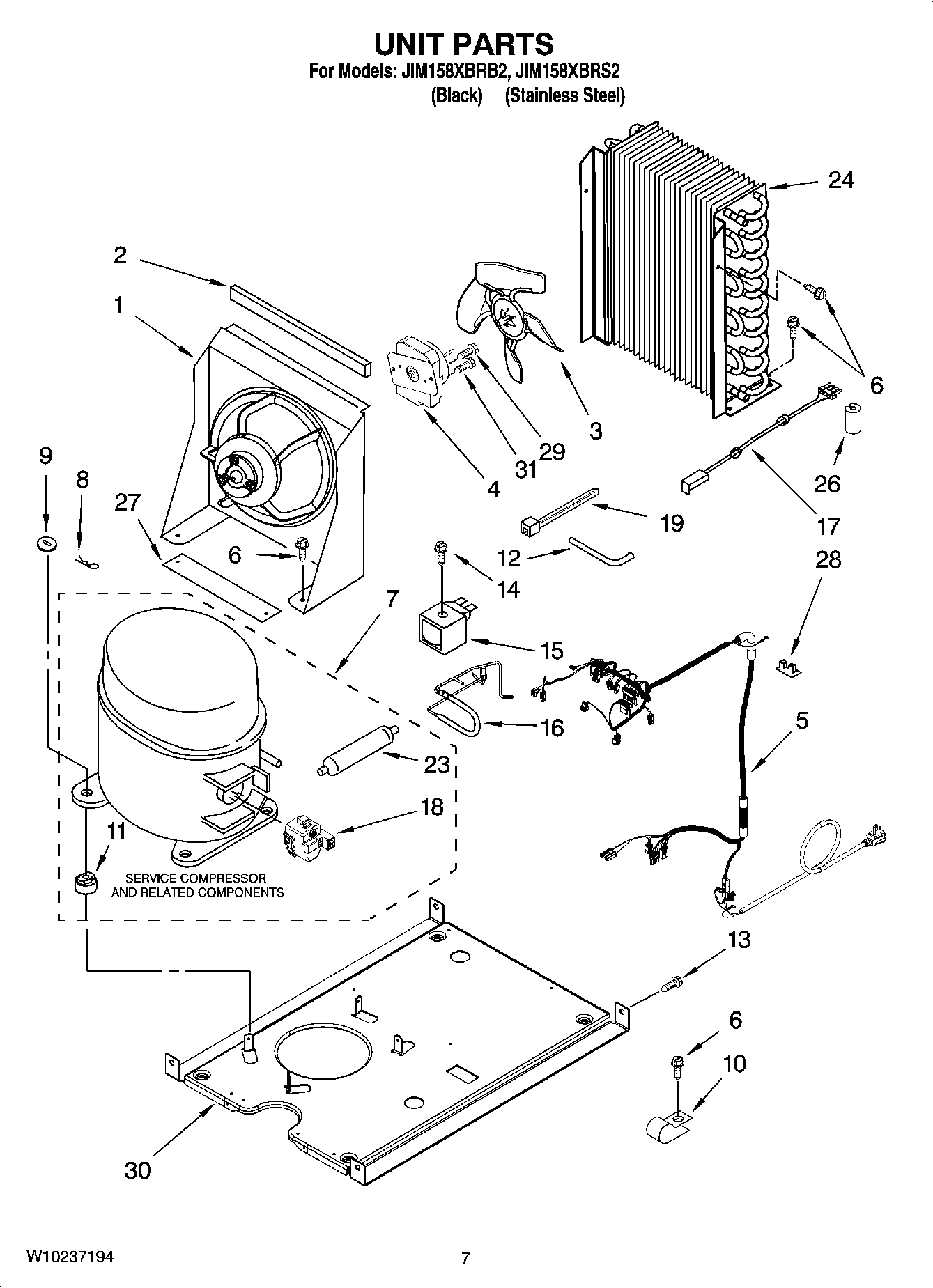

JIM158XBRS2 05 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	Valve, Access (5/16“)
NI	Cleaner, Icemaker
NI	MAY 479976
NI	Cement, Insulation (1 Oz.)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	MAY 8537055
NI	SEALER, GUM (4 FEET)
NI	MAY 503695
NI	MAY 505587
NI	VALVE, ACCESS (1/4“)
1	BRACKET, FAN MOUNTING
2	PAD, FOAM
3	MAY 2188935
4	MAY 2315558
5	Wiring Harness, Complete Unit (Includes Power Cord)
6	Screw
7	MAY W10136195
8	CLIP, COMPRESSOR MOUNTING
9	SHIM
10	CLAMP, POWER CORD
11	GROMMET, COMPRESSOR
11	MAY 4387558
12	MAY 2208415
13	MAY 8281265
14	SCREW
15	COIL, SOLENOID
16	MAY 2313806
17	JUMPER, WIRE (CONDENSER FAN)
18	MAY W10136197
19	MAY 2155774
23	MAY 2319826
23	MAY 4387019
24	CONDENSER
26	GROMMET, CONDENSER
27	PAD, FOAM
28	Clip-Wiring
29	MAY 8281197
30	MAY 2217388
31	MAY 8281196
