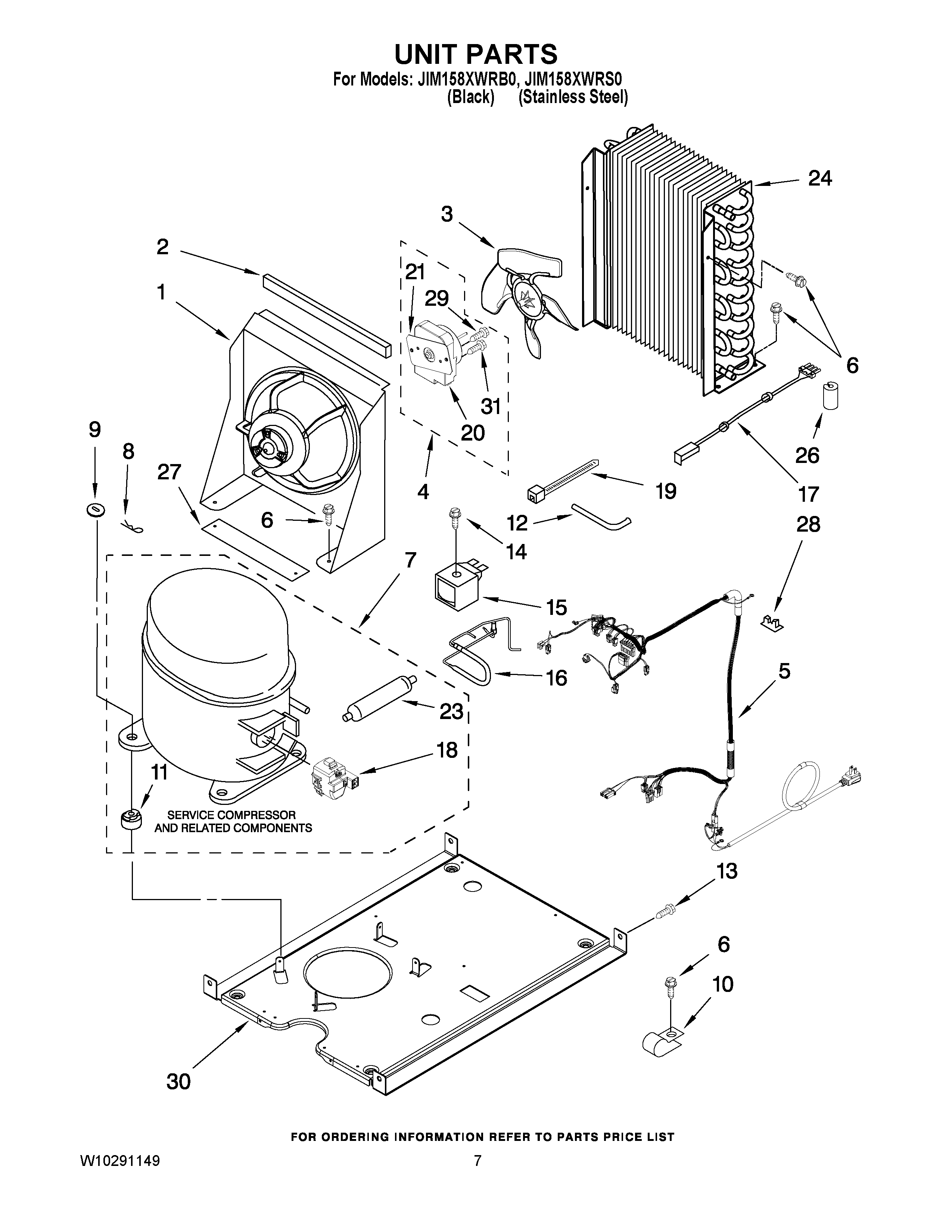

JIM158XWRB0 05 – UNIT PARTSadmin2025-04-26T09:24:59+00:00JIM158XWRB0 05 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | BRACKET, FAN MOUNTING |
| 2 | PAD, FOAM |
| 3 | MAY 2188935 |
| 4 | MAY 2315558 |
| 5 | Wiring Harness, Complete Unit (Includes Power Cord) |
| 6 | Screw |
| 7 | MAY W10136195 |
| 8 | CLIP, COMPRESSOR MOUNTING |
| 9 | SHIM |
| 10 | CLAMP, POWER CORD |
| 11 | GROMMET, COMPRESSOR |
| 11 | MAY 4387558 |
| 12 | MAY 2208415 |
| 13 | MAY 489420 |
| 14 | SCREW |
| 15 | COIL, SOLENOID |
| 16 | BODY, SOLENOID VALVE |
| 17 | JUMPER, WIRE (CONDENSER FAN) |
| 18 | MAY W10136197 |
| 19 | MAY 2155774 |
| 20 | MOTOR |
| 21 | Plate, Motor |
| 23 | DRIER (SERVICE) |
| 23 | MAY 2319826 |
| 24 | CONDENSER |
| 26 | GROMMET, CONDENSER |
| 27 | PAD, FOAM |
| 28 | Clip-Wiring |
| 29 | MAY 8281197 |
| 30 | BASE, UNIT |
| 31 | MAY 8281188 |
