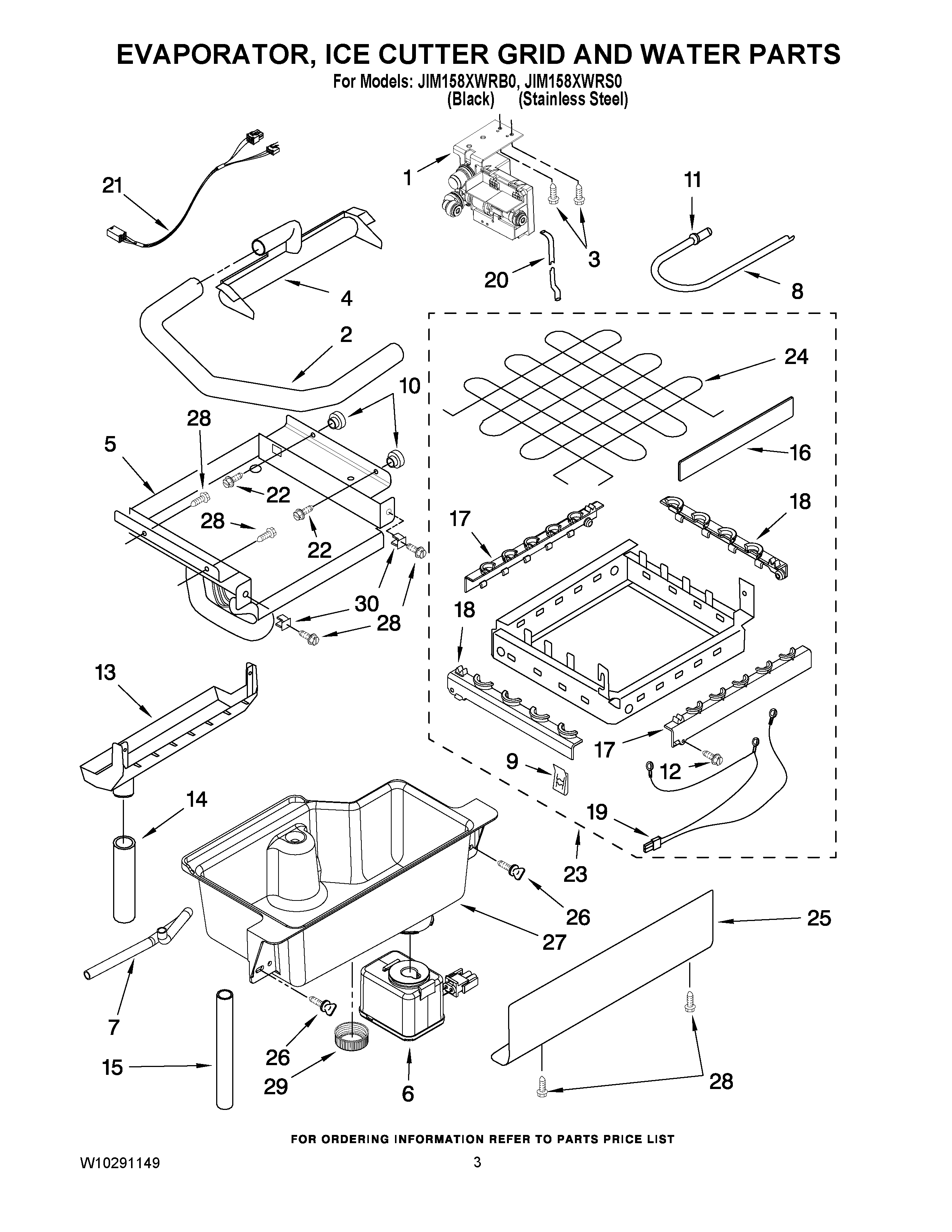

JIM158XWRS0 02 – EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

JIM158XWRS0 02 – EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

Written by

in

JIM158XWRS0 02 – EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

Products

PositionProduct
1MAY W10217917
2MAY 2217286
3Screw
4DISPENSER, WATER
5EVAPORATOR
6MAY 2313705
7Tube,Reservoir Pump
8MAY 2172593
9MAY 488660
10SPACER
11MAY 2208539
12SCREW (STAINLESS)
13RESERVOIR, WATER SLIDE
14MAY 2185626
15MAY 2313890
16MAY 2313604
17MAY 2313603
18Bracket, Side Left and Right
19MAY 2185681
20MAY W10136146
21Wire Assembly Valve
22SCREW (STAINLESS)
23MAY 2313637
24MAY 2174754
25MAY 2185570
26MAY 8281228
27MAY 2324334
28SCREW (STAINLESS)
29MAY 2185696
30GROMMET, SCREW
