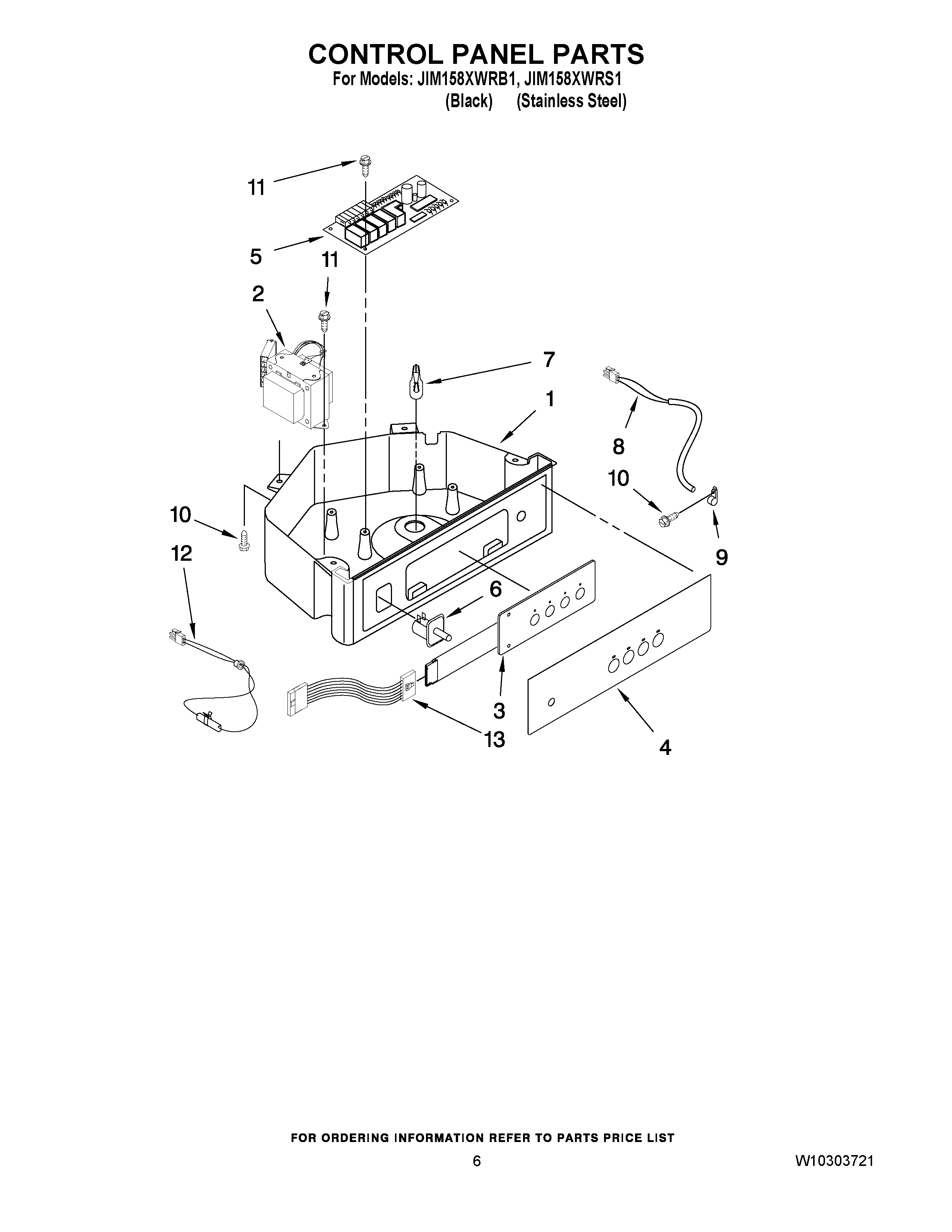

JIM158XWRS1 04 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	MAY 2185738
2	MAY 2310139
3	MAY W10122017
4	MAY W10206469
5	MAY W10226156
6	MAY 2149705
7	Bulb
8	MAY 2313633
9	MAY 2185825
10	SCREW (STAINLESS)
11	MAY 3400850
12	Thermister,
13	Wire Assy. Active Overlay Jumper Ice Control
