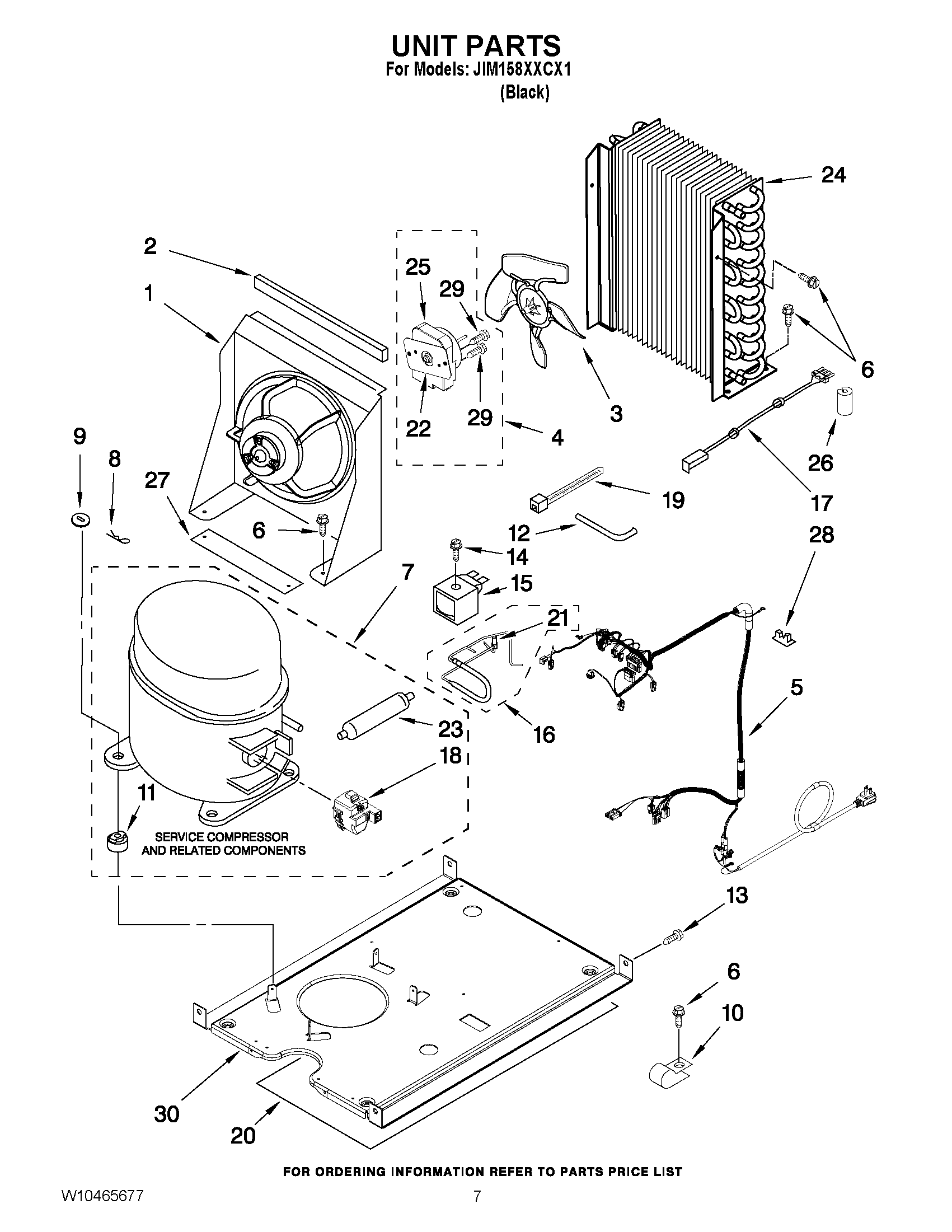

JIM158XXCX1 05 – UNIT PARTS

JIM158XXCX1 05 – UNIT PARTS

Written by

in

JIM158XXCX1 05 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	BRACKET, FAN MOUNTING
2	PAD, FOAM
3	MAY 2188935
4	MAY 2315558
5	MAY W10340990
6	Screw
7	MAY W10136195
8	CLIP, COMPRESSOR MOUNTING
9	SHIM
10	CLAMP, POWER CORD
11	GROMMET, COMPRESSOR
11	MAY 4387558
12	MAY 2208415
13	MAY 8281265
14	SCREW
15	COIL, SOLENOID
16	MAY 2313806
17	JUMPER, WIRE (CONDENSER FAN)
18	MAY W10136197
19	MAY 2155774
20	SHIELD, HEAT
21	BODY, SOLENOID VALVE
22	Plate, Motor
23	DRIER (SERVICE)
23	MAY 2319826
24	CONDENSER
25	MOTOR
26	GROMMET, CONDENSER
27	PAD, FOAM
28	Clip-Wiring
29	MAY 489420
30	MAY 2217388
