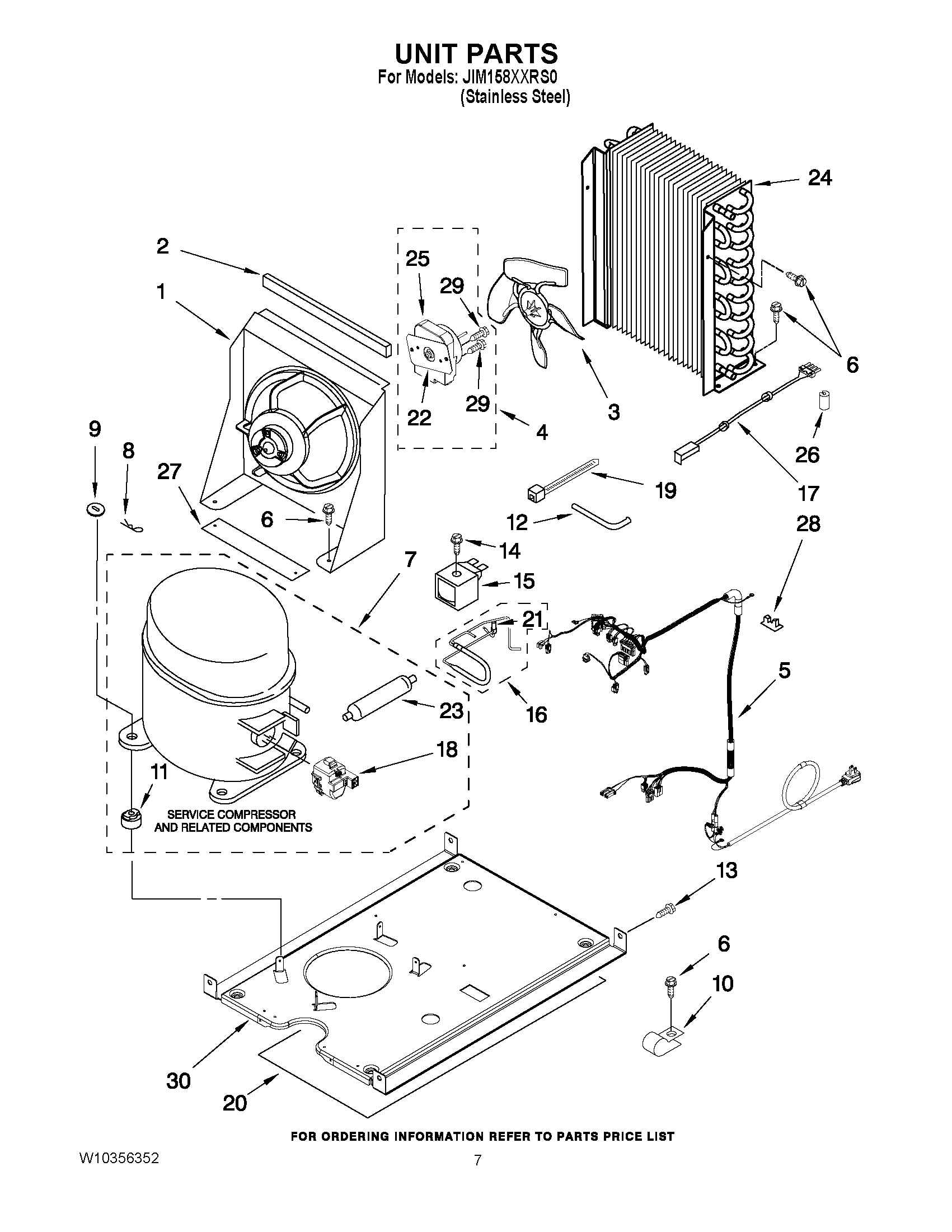

JIM158XXRS0 05 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	BRACKET, FAN MOUNTING
2	PAD, FOAM
3	MAY 2188935
4	MAY 2315558
5	WIRING HARNESS, COMPLETE UNIT (INCLUDES POWER CORD
6	Screw
7	MAY W10136195
8	CLIP, COMPRESSOR MOUNTING
9	SHIM
10	CLAMP, POWER CORD
11	MAY 4387558
11	GROMMET, COMPRESSOR
12	MAY 2208415
13	MAY 8281265
14	SCREW
15	COIL, SOLENOID
16	MAY 2313806
17	JUMPER, WIRE (CONDENSER FAN)
18	MAY W10136197
19	TIE, WIRE
20	SHIELD, HEAT
21	BODY, SOLENOID VALVE
22	Plate, Motor
23	DRIER (SERVICE)
23	MAY 2319826
24	CONDENSER
25	MOTOR
26	GROMMET, CONDENSER
27	PAD, FOAM
28	Clip-Wiring
29	MAY 486420
30	MAY 22177388
