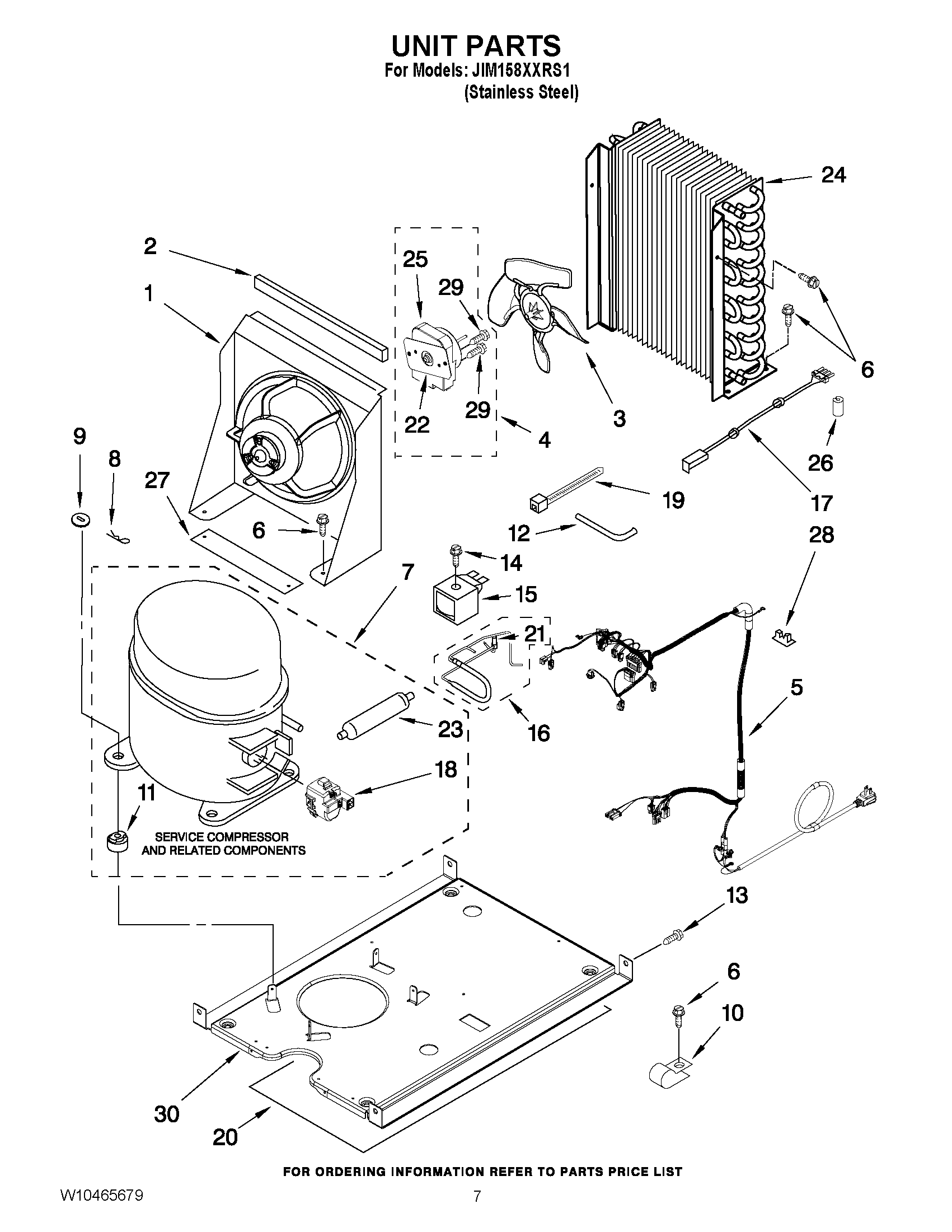

JIM158XXRS1 05 – UNIT PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
1BRACKET, FAN MOUNTING
2PAD, FOAM
3MAY 2188935
4MAY 2315558
5MAY W10340990
6Screw
7MAY W10136195
8CLIP, COMPRESSOR MOUNTING
9SHIM
10CLAMP, POWER CORD
11GROMMET, COMPRESSOR
11MAY 4387558
12MAY 2208415
13MAY 8281265
14SCREW
15COIL, SOLENOID
16MAY 2313806
17JUMPER, WIRE (CONDENSER FAN)
18MAY W10136197
19TIE, WIRE
20SHIELD, HEAT
21BODY, SOLENOID VALVE
22Plate, Motor
23DRIER (SERVICE)
23MAY 2319826
24CONDENSER
25MOTOR
26GROMMET, CONDENSER
27PAD, FOAM
28Clip-Wiring
29MAY 486420
30MAY 2217388
