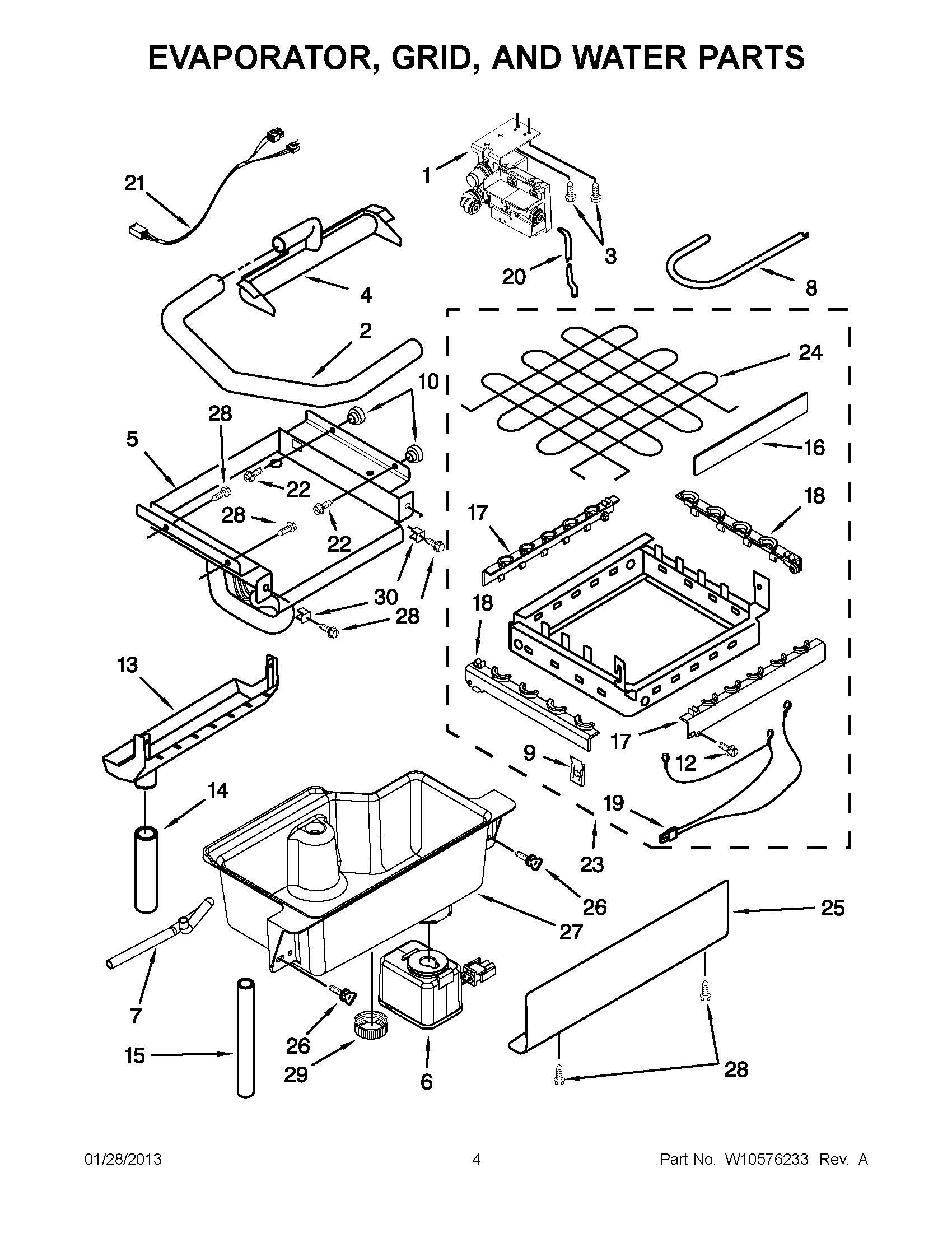

JIM158XXRS2 02 – EVAPORATOR, GRID, AND WATER PARTS

JIM158XXRS2 02 – EVAPORATOR, GRID, AND WATER PARTS

Written by

in

JIM158XXRS2 02 – EVAPORATOR, GRID, AND WATER PARTS

Products

PositionProduct
1MAY W10340983
2MAY 2217286
3Screw
4DISPENSER, WATER
5EVAPORATOR
6MAY 2313705
7Tube,Reservoir Pump
8MAY W10418868
9MAY 488660
10SPACER
11GROMMET, SCREW
12SCREW (STAINLESS)
13RESERVOIR, WATER SLIDE
14MAY 2185626
15MAY 2313890
16MAY 2313604
17CAP-DRAIN
18Bracket, Side Left and Right
18SCREW (STAINLESS)
20MAY W10217922
21Wire Assembly Valve
22SCREW (STAINLESS)
23MAY W10536696
24MAY 2174754
25MAY 2185570
26MAY 8281228
27MAY 2324334
