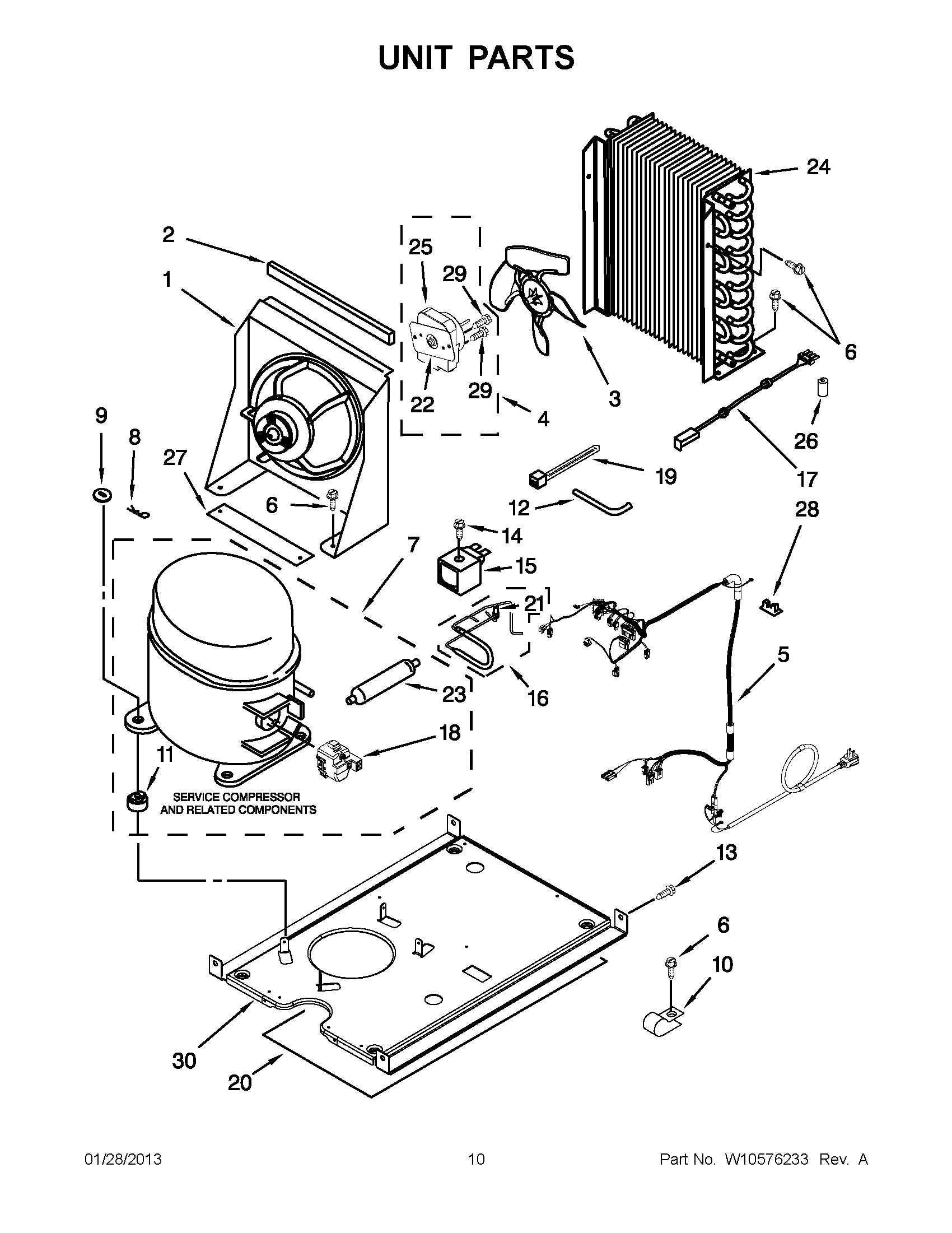

JIM158XXRS2 05 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	BRACKET, FAN MOUNTING
2	PAD, FOAM
3	MAY 2188935
4	MAY 2315558
5	MAY W10340990
6	Screw
7	COMPRESSOR
8	CLIP, COMPRESSOR MOUNTING
9	SHIM
10	GROMMET, COMPRESSOR
10	CLAMP, POWER CORD
12	TUBE, PROCESS
13	MAY 8281265
14	SCREW
15	COIL, SOLENOID
16	VALVE, HOT GAS
17	JUMPER, WIRE (CONDENSER FAN)
18	MAY W10136197
19	MAY 2155774
20	SHIELD, HEAT
21	BODY, SOLENOID VALVE
22	Overload (Production)
22	DRIER (SERVICE)
24	CONDENSER
25	DEVICE, START
26	GROMMET, CONDENSER
27	PAD, FOAM
28	Clip-Wiring
29	MAY 486420
30	BASE, UNIT
31	COVER, TERMINAL
