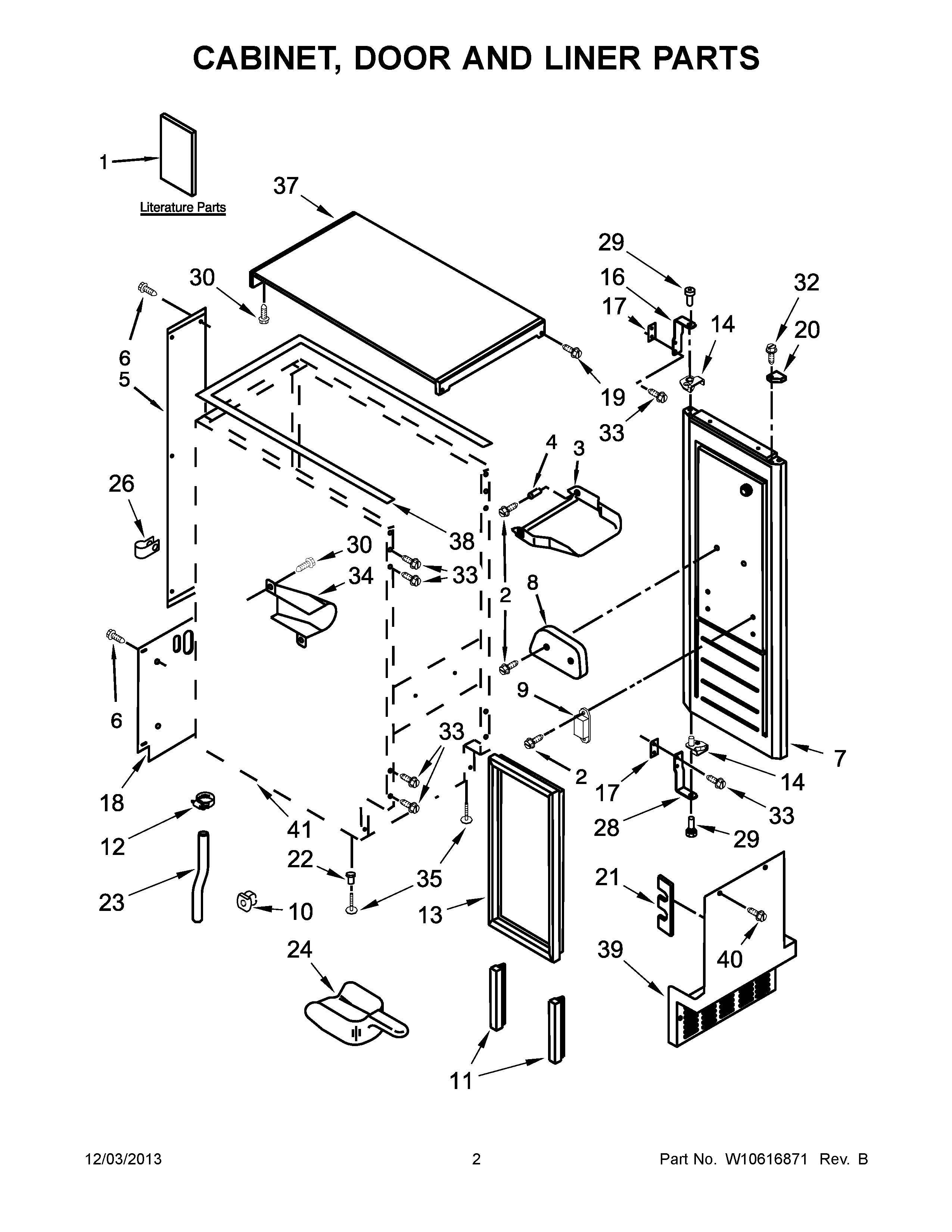

JIM158XYCX0 02 – CABINET, DOOR AND LINER PARTS

JIM158XYCX0 02 – CABINET, DOOR AND LINER PARTS

Written by

in

JIM158XYCX0 02 – CABINET, DOOR AND LINER PARTS

Products

PositionProduct
1MAY W10492485
1MAY W10541636
1MAY W10541616
2SCREW (STAINLESS)
3MAY 2185742
4SPACER
5COVER, WIRING
6MAY 489442
7MAY W10502166
8CAM, DOOR
9ASSEMBLY, MAGNETIC CATCH
10NUT, PUSH-IN
11MAY 2217367
12MAY 489503
13GASKET, DOOR
14MAY W10486561
14MAY W10486559
16MAY W10476703
17MAY W10544727
17MAY W10544734
18Cover Unit
19SCREW (BLACK)
20MAY W10501849
20MAY W10501833
21MAY W10532250
22NUT
23MAY 2185989
24SCOOP
26Clip, Tube
28MAY W10476696
29PIN, HINGE
30SCREW
32SCREW
33SCREW (BLACK)
34HOLDER, SCOOP
35LEG, LEVELING
37PANEL, TOP (BLACK)
38GASKET, TOP PANEL
39Grill, Front
40MAY W10531302
41LINER (NOT A SERVICEABLE PART)
