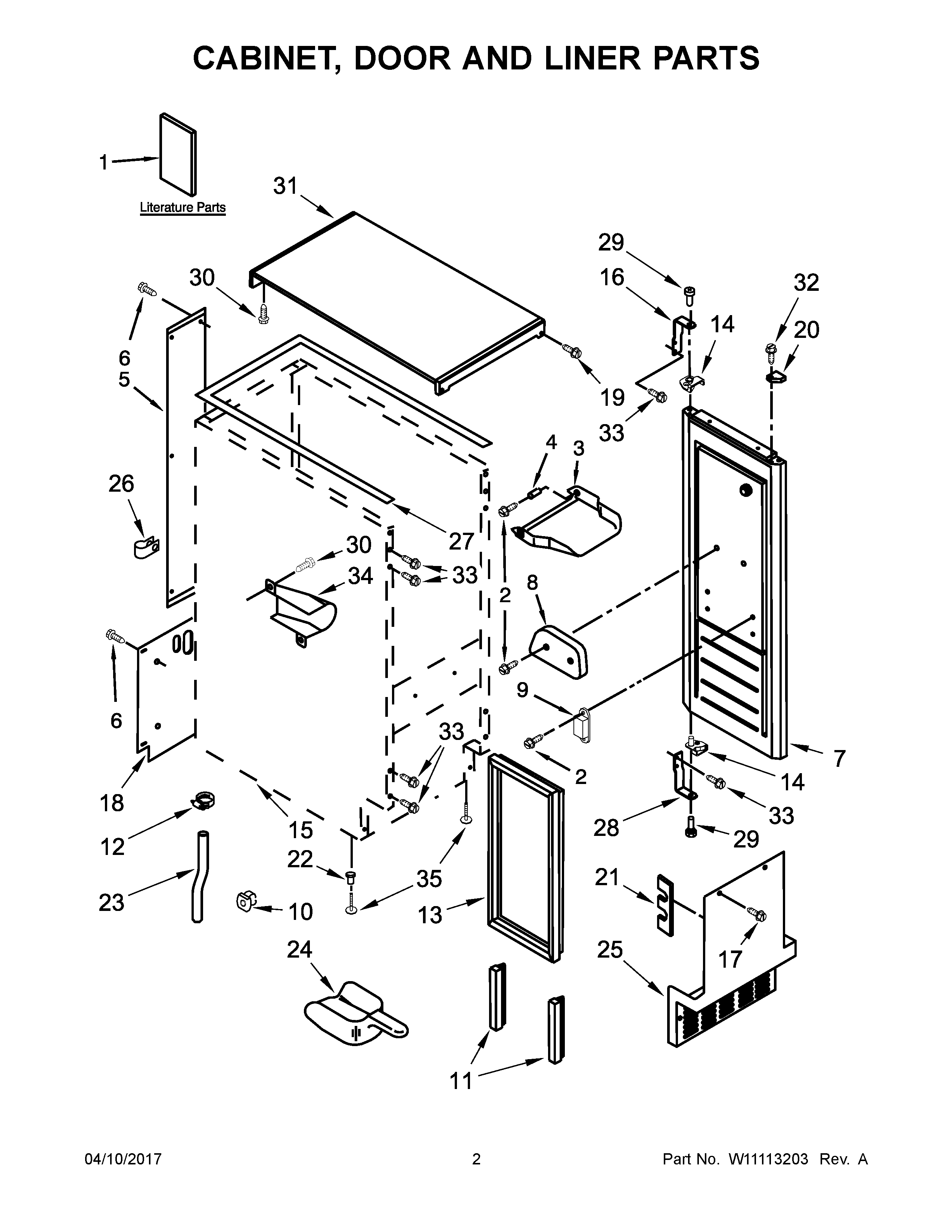

JIM158XYCX2 02 – CABINET, DOOR AND LINER PARTS

JIM158XYCX2 02 – CABINET, DOOR AND LINER PARTS

Written by

in

JIM158XYCX2 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1	MAY W10541616
1A	MAY W10761663
1B	TECH SHEET
2	SCREW (STAINLESS)
3	MAY 2185742
4	SPACER
5	COVER, WIRING
6	MAY 489442
7	MAY W10502166
8	CAM, DOOR
9	ASSEMBLY, MAGNETIC CATCH
10	NUT, PUSH-IN
11	MAY 2217367
12	CLAMP, HOSE
13	GASKET, DOOR
14	MAY W10486559
14A	MAY W10486561
15	LINER (NOT A SERVICEABLE PART)
16	MAY W10476703
17	MAY W10531302
18	Cover Unit
19	SCREW (BLACK)
20A	MAY W10501849
20	MAY W10501833
21	MAY W10532250
22	NUT
23	TUBE, DRAIN
24	SCOOP
25	Grill, Front
26	Clip, Tube
27	GASKET, TOP PANEL
28	MAY W10476696
29	PIN, HINGE
30	SCREW
31	PANEL, TOP (BLACK)
32	SCREW
33	SCREW (BLACK)
34	HOLDER, SCOOP
35	LEG, LEVELING
