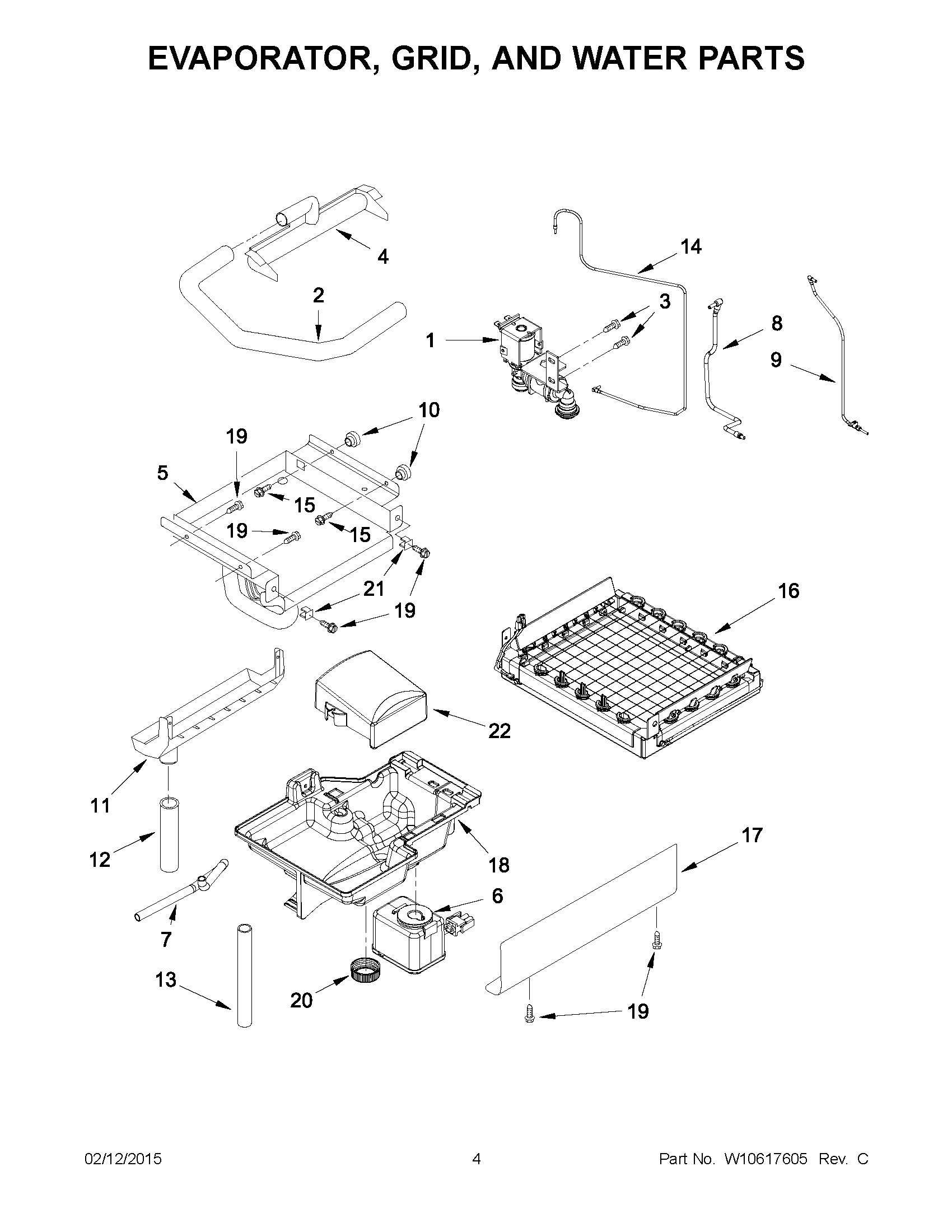

JIM158XYRS0 03 – EVAPORATOR, GRID, AND WATER PARTS

JIM158XYRS0 03 – EVAPORATOR, GRID, AND WATER PARTS

Written by

in

JIM158XYRS0 03 – EVAPORATOR, GRID, AND WATER PARTS

Products

PositionProduct
1MAY W10217918
2MAY W10635837
3Screw
4DISPENSER, WATER
5EVAPORATOR
6PUMP, RESERVOIR DRAIN
7TUBE, RESERVOIR DRAIN
8WATERLINE, RESERVOIR
9MAY W10218065
10SPACER
11RESERVOIR, WATER SLIDE
12TUBE, WATER SLIDE
13MAY W10539377
14WATERLINE, VALVE
15SCREW (STAINLESS)
16MAY W10485968
17COVER, GRID
18RESERVOIR, WATER
19SCREW (STAINLESS)
20CAP-DRAIN
21GROMMET, SCREW
22COVER, BRACKET
