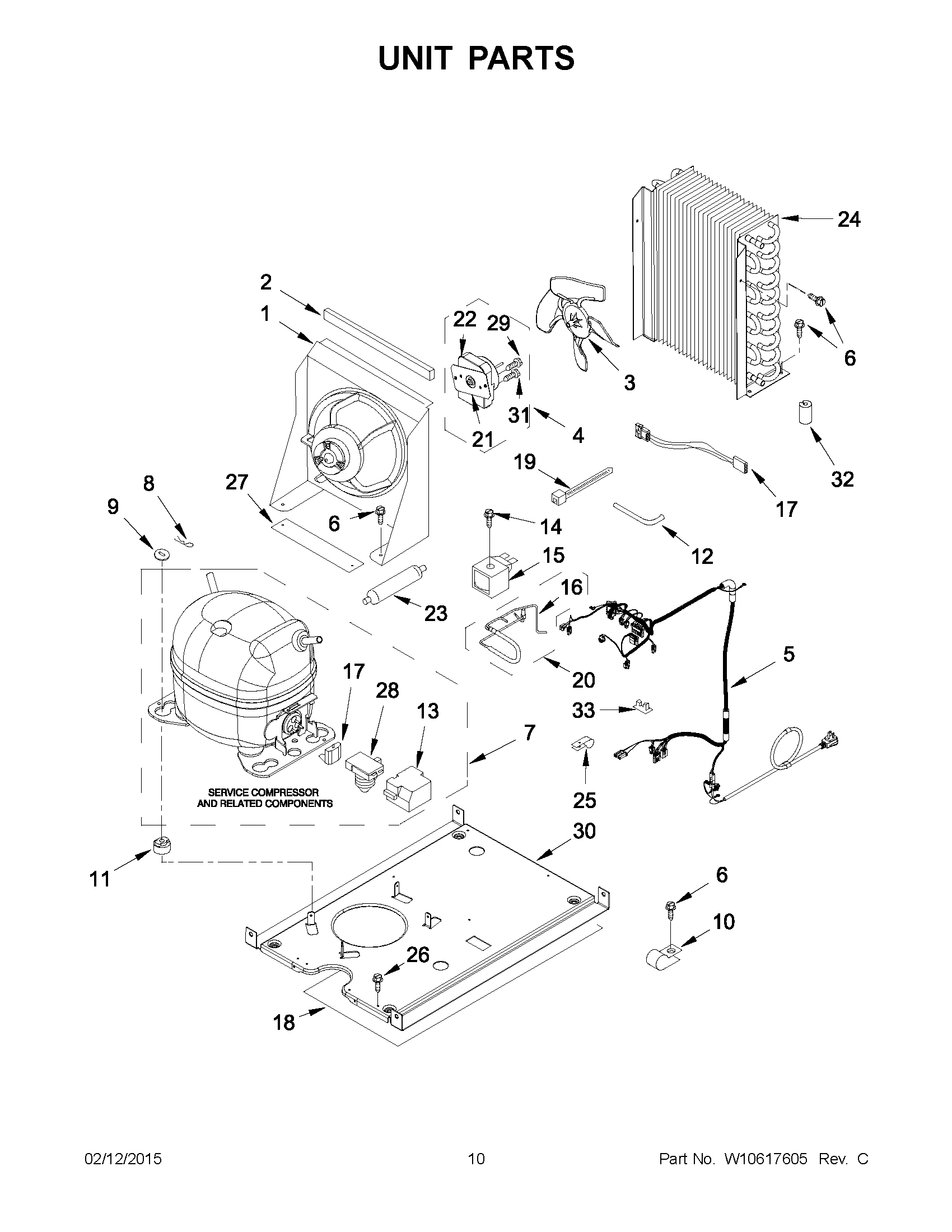

JIM158XYRS0 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	BRACKET, FAN MOUNTING
2	PAD, FOAM
3	MAY 2188935
4	MAY 2315558
5	MAY W10460856
6	Screw
7	MAY W10482479
8	CLIP, COMPRESSOR MOUNTING
9	SHIM
10	CLAMP, POWER CORD
11	GROMMET, COMPRESSOR
12	TUBE, PROCESS
13	MAY W10364944
14	SCREW
15	COIL, SOLENOID
16	BODY, SOLENOID VALVE
17	MAY W10520264
18	SHIELD, HEAT
19	TIE, WIRE
20	VALVE, HOT GAS
21	Plate, Motor
22	MAY W10509333
23	DRIER
24	CONDENSER
25	Clamp, Cable
26	MAY 488500
27	PAD, FOAM
28	MAY W10482495
29	MAY 8281197
30	BASE, UNIT
31	MAY 8281196
32	GROMMET, CONDENSER
33	Clip-Wiring
