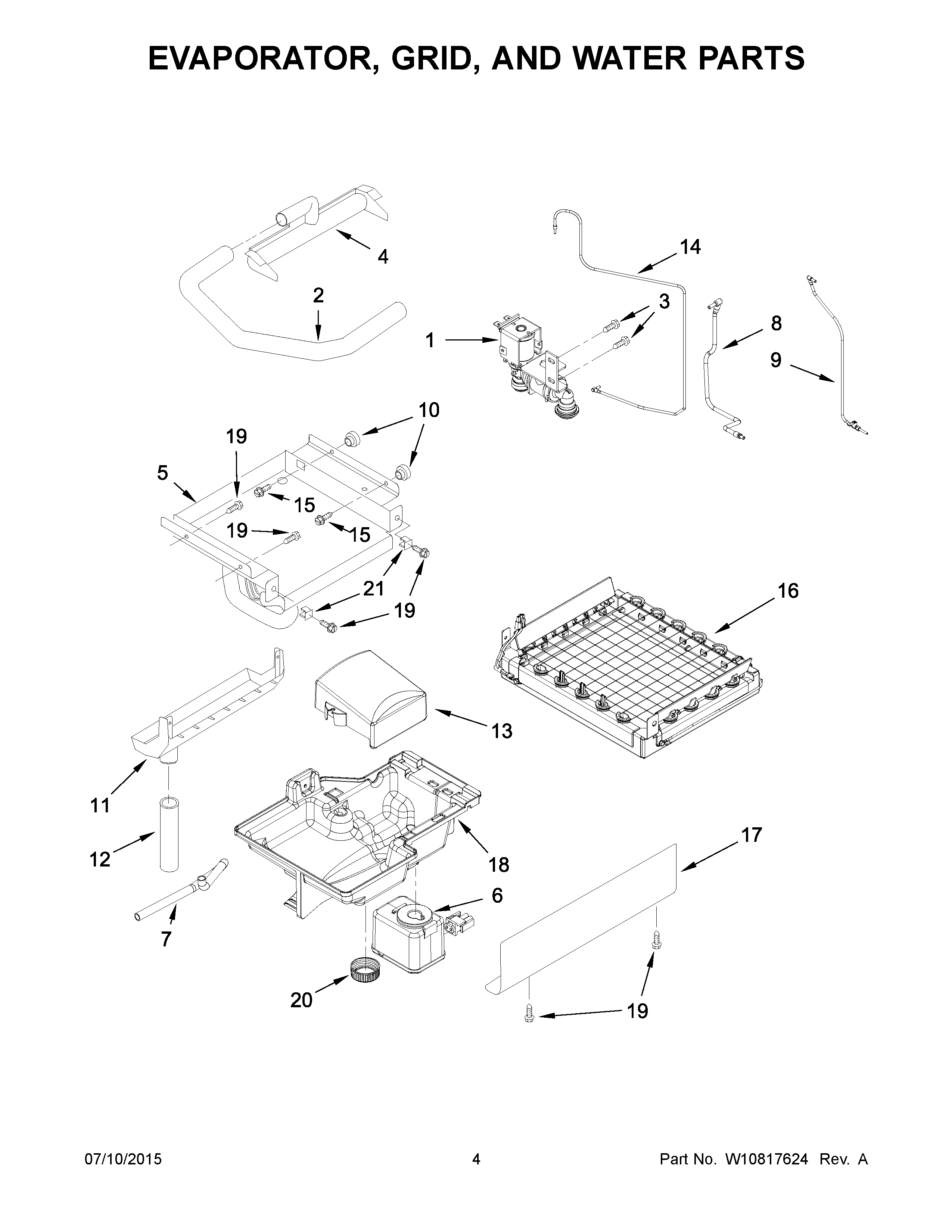

JIM158XYRS1 03 – EVAPORATOR, GRID, AND WATER PARTS

Products

Position	Product
1	VALVE, WATER
2	MAY W10635837
3	Screw
4	DISPENSER, WATER
5	EVAPORATOR
6	PUMP, RESERVOIR DRAIN
7	TUBE, RESERVOIR DRAIN
8	WATERLINE, RESERVOIR
9	MAY W10776033
10	SPACER
11	RESERVOIR, WATER SLIDE
12	TUBE, WATER SLIDE
13	COVER, BRACKET
14	WATERLINE, VALVE
15	SCREW (STAINLESS)
16	MAY W10485968
17	COVER, GRID
18	RESERVOIR, WATER
19	SCREW (STAINLESS)
20	CAP, DRAIN
21	GROMMET, SCREW
