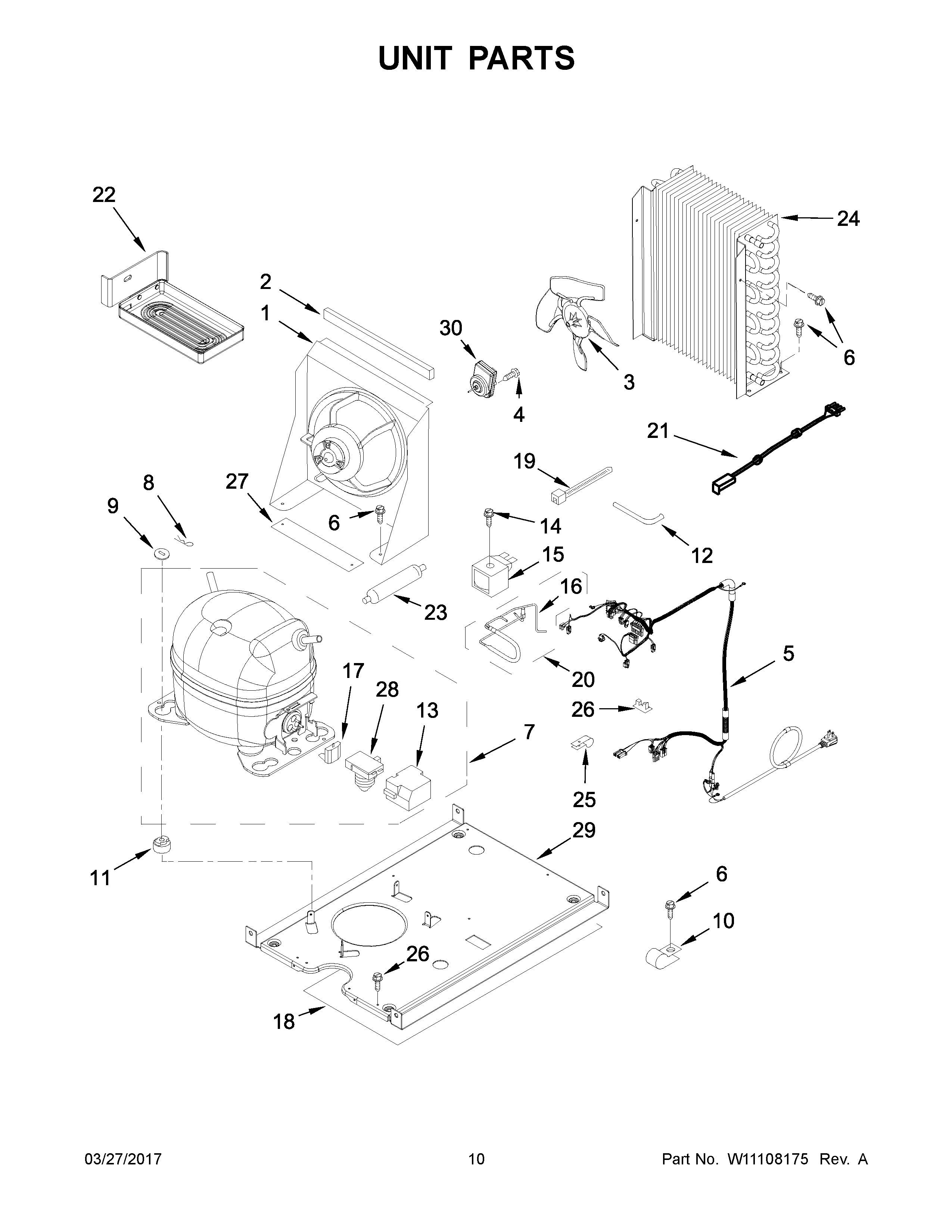

JIM158XYRS2 06 – UNIT PARTSadmin2025-04-26T09:24:38+00:00JIM158XYRS2 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | BRACKET, FAN MOUNTING |
| 2 | PAD, FOAM |
| 3 | MAY 2188935 |
| 4 | MAY 8281196 |
| 5 | MAY W10460856 |
| 6 | Screw |
| 7 | COMPRESSOR |
| 8 | CLIP, COMPRESSOR MOUNTING |
| 9 | SHIM |
| 10 | CLAMP, POWER CORD |
| 11 | GROMMET, COMPRESSOR |
| 12 | TUBE, PROCESS |
| 13 | COVER, TERMINAL |
| 14 | SCREW |
| 15 | COIL, SOLENOID |
| 16 | BODY, SOLENOID VALVE |
| 17 | PROTECTOR, OVERLOAD |
| 18 | SHIELD, HEAT |
| 19 | TIE, WIRE |
| 20 | VALVE, HOT GAS |
| 21 | JUMPER, WIRE (CONDENSER FAN) |
| 22 | TRAY, DRIP |
| 23 | DRIER |
| 24 | CONDENSER |
| 25 | Clamp, Cable |
| 26 | Clip-Wiring |
| 27 | PAD, FOAM |
| 28 | DEVICE, START |
| 29 | BASE, UNIT |
| 30 | MAY W10609117 |
