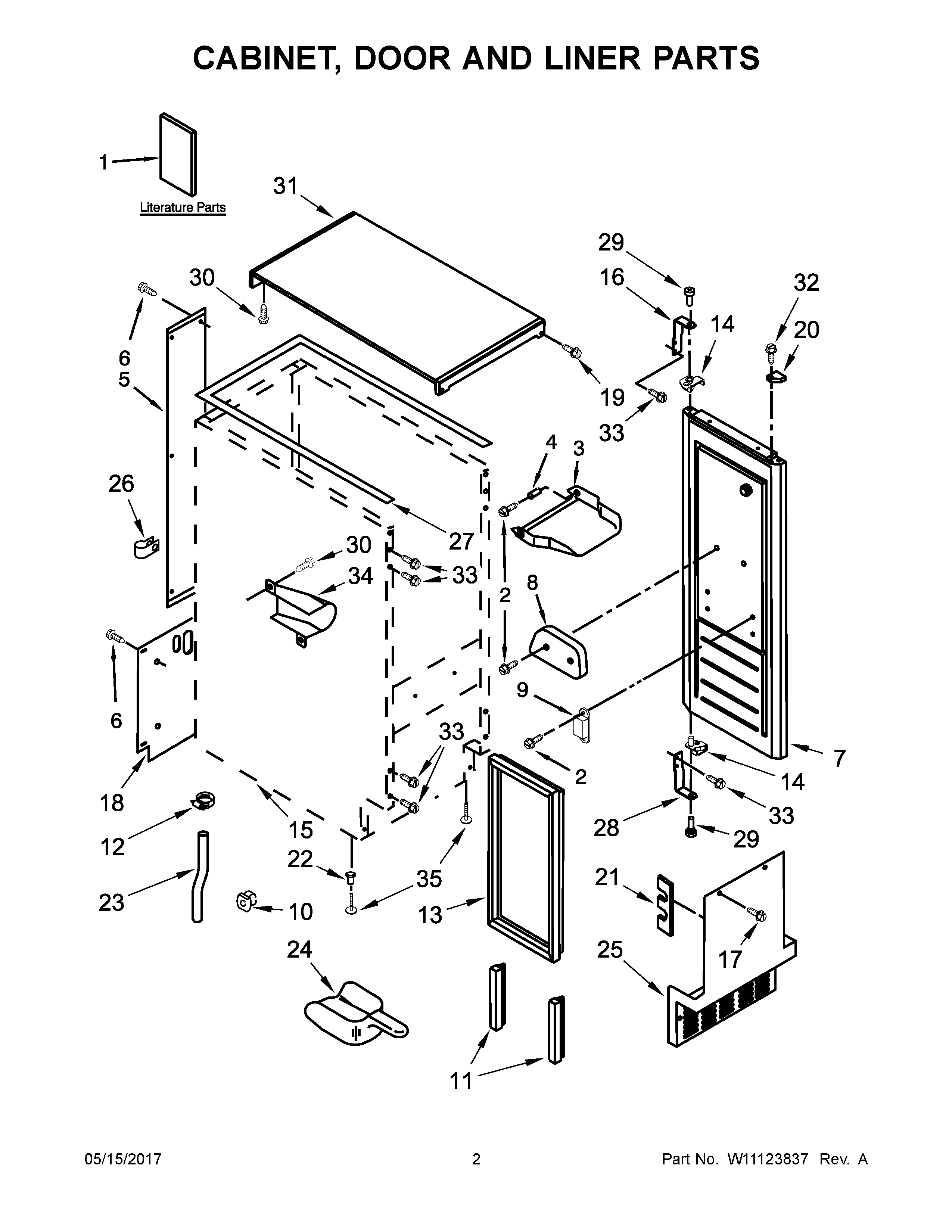

JIM159XYCX0 02 – CABINET, DOOR AND LINER PARTS

Products

PositionProduct
1AMAY W10761663
1MAY W10541616
1BTECH SHEET
2SCREW (STAINLESS)
3BIN, DOOR
4SPACER
5COVER, WIRING
6MAY 489442
7MAY W10502166
8CAM, DOOR
9ASSEMBLY, MAGNETIC CATCH
10NUT, PUSH-IN
11MAY 2217367
12CLAMP, HOSE
13GASKET, DOOR
14AMAY W10486561
14MAY W10486559
15LINER (NOT A SERVICEABLE PART)
16MAY W10476703
17MAY W10531302
18Cover Unit
19SCREW (BLACK)
20AMAY W10501849
20MAY W10501833
21MAY W10532250
22NUT
23TUBE, BIN TO PUMP
24SCOOP
25Grill, Front
26Clip, Tube
27GASKET, TOP PANEL
28MAY W10476696
29PIN, HINGE
30SCREW
31PANEL, TOP (BLACK)
32SCREW
33SCREW (BLACK)
34HOLDER, SCOOP
35LEG, LEVELING
