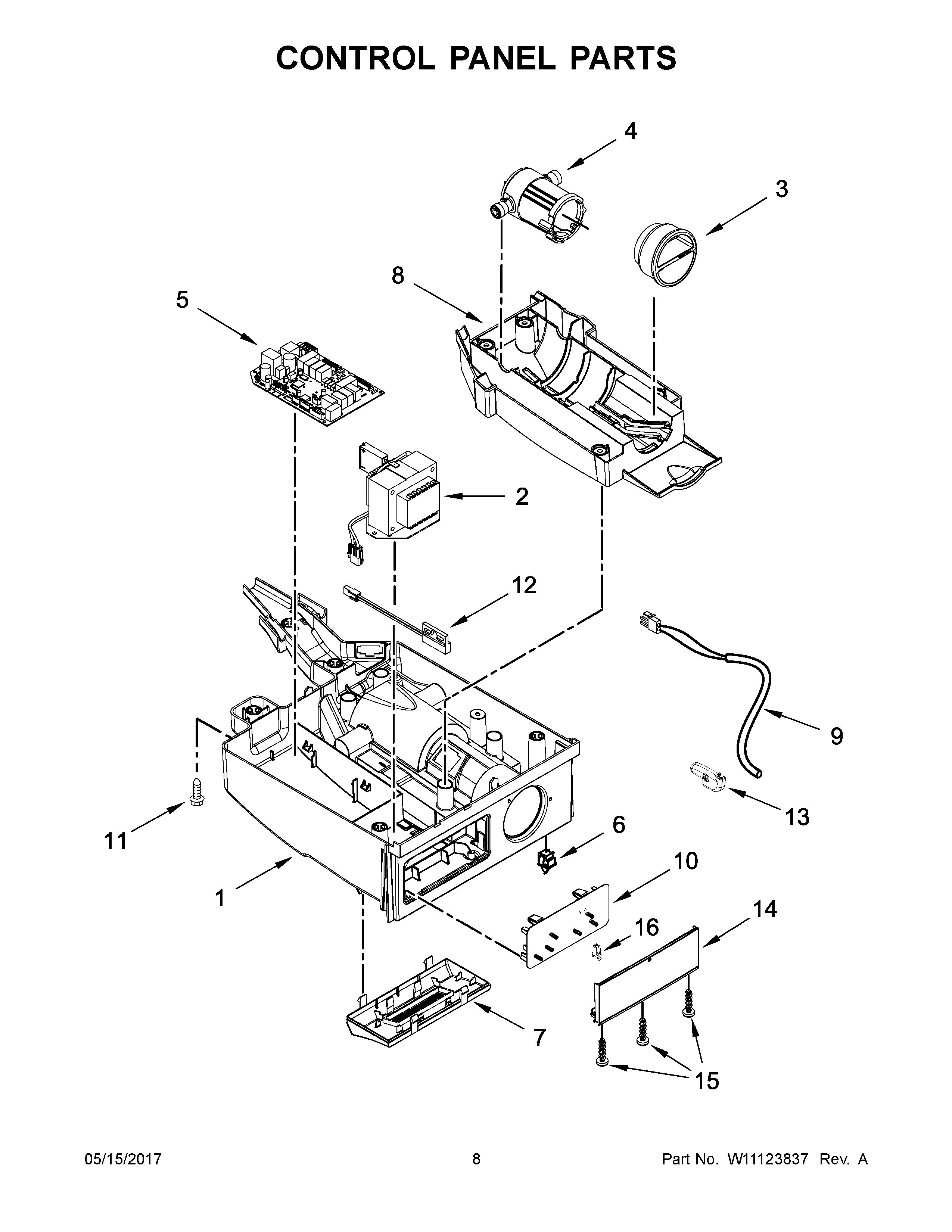

JIM159XYCX0 05 – CONTROL PANEL PARTS

Products

Position	Product
1	HOUSING, CONTROL
2	TRANSFORMER
3	FILTER CAP
4	MAY W10555394
5	MAY W10485960
6	W11291138 Whirlpool Refrigerator Door Switch
7	ASSEMBLY, DIAMOND LED
8	COVER, FILTER
9	THERMISTOR, BIN
10	ASSEMBLY, CONTROL
11	SCREW (STAINLESS)
12	SWITCH, REED
13	CLAMP, THERMISTOR
14	ASSEMBLY, FASCIA
15	MAY 9741232N
16	LATCH, PUSH
