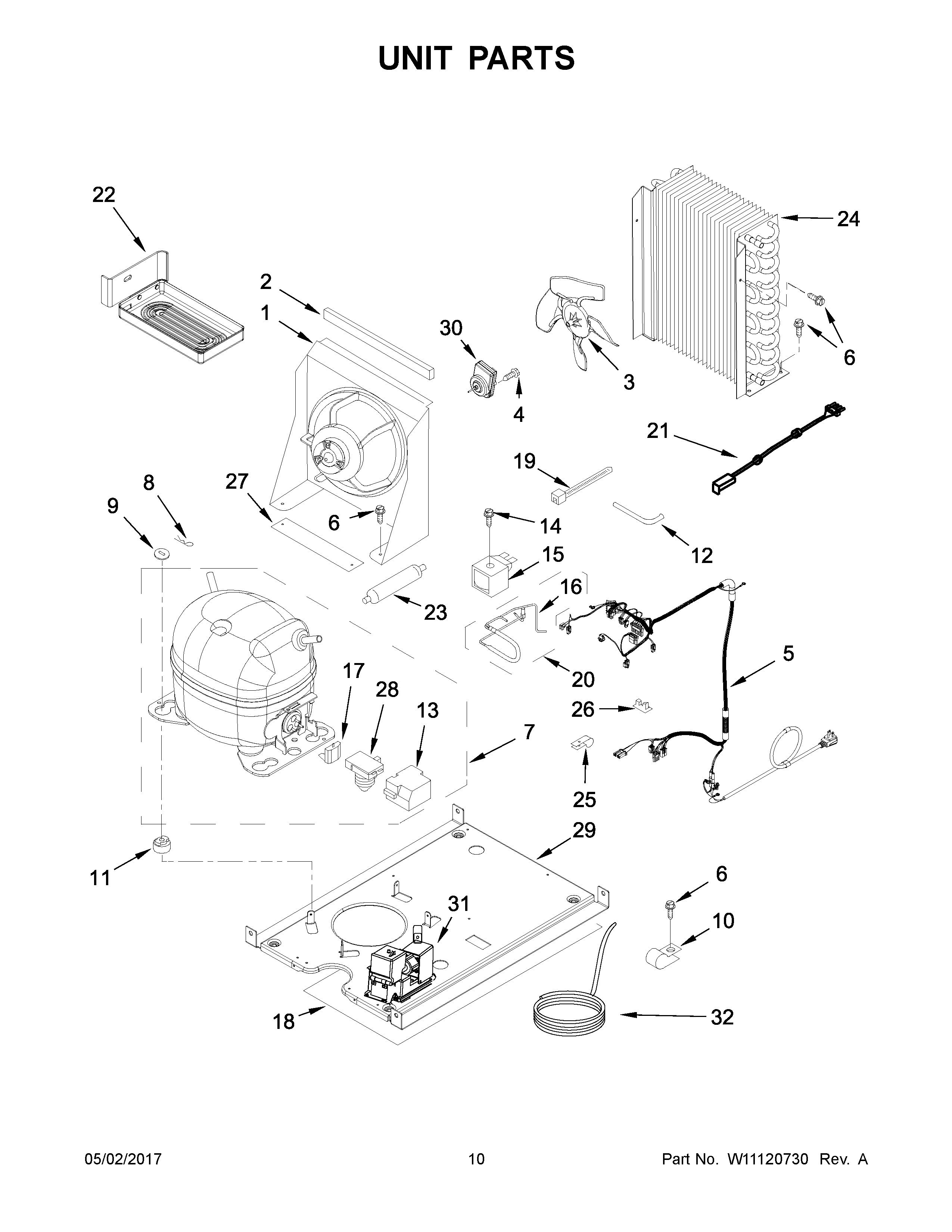

JIM159XYRS0 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	BRACKET, FAN MOUNTING
2	PAD, FOAM
3	MAY 2188935
4	MAY 8281196
5	MAY W10460856
6	Screw
7	COMPRESSOR
8	CLIP, COMPRESSOR MOUNTING
9	SHIM
10	CLAMP, POWER CORD
11	GROMMET, COMPRESSOR
12	TUBE, PROCESS
13	COVER, TERMINAL
14	SCREW
15	COIL, SOLENOID
16	BODY, SOLENOID VALVE
17	PROTECTOR, OVERLOAD
18	SHIELD, HEAT
19	TIE, WIRE
20	VALVE, HOT GAS
21	JUMPER, WIRE (CONDENSER FAN)
22	TRAY, DRIP
23	DRIER
24	CONDENSER
25	Clamp, Cable
26	Clip-Wiring
27	PAD, FOAM
28	DEVICE, START
29	BASE, UNIT
30	MAY W10609117
31	ASSEMBLY, DRAIN PUMP
32	HOSE, DRAIN
