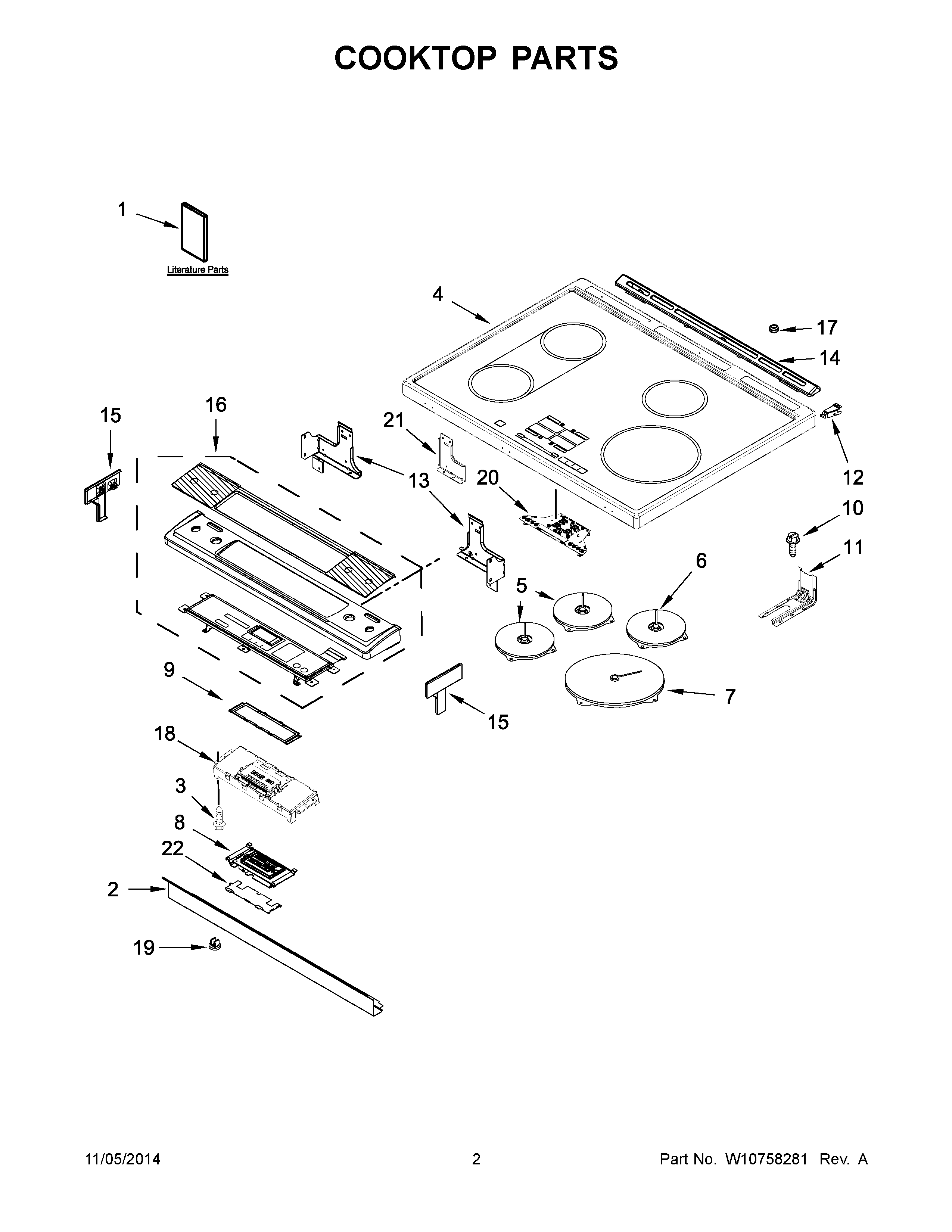

JIS1450CDP0 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10740211
NI	CLIP, WIRE
NI	MAY W10598170
NI	MAY W10575120
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10580316
1A	USE AND CARE GUIDE
1G	WIRING DIAGRAM
1B	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
1C	TIPS, SAFE COOKING (ENGLISH)
1D	TIPS, SAFE COOKING (FRENCH)
1F	MAY W10400065
1E	MAY W10400064
2	CONSOLE, LOWE
3	SCREW
4	COOKTOP (BLACK)
5	ELEMENT (LEFT FRONT AND LEFT REAR)
6	HOTPLATE (LEFT FRONT AND RIGHT REAR)
7	HOTPLATE (RR)
8	MAY W10603095
9	BRACKET, CONTROL
10	SCREW, ANTI-TIP KIT
11	BRACKET, ANTI-TIP
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
13	SUPPORT, COOKTOP (RIGHT)
14	VENT, TRIM TOP (STAINLESS)
15	ENDCAP (STAINLESS (LEFT))
15A	ENDCAP (STAINLESS (RIGHT))
16	CONSOLE (STAINLESS)
17	BUMPER
18	CONTROL, MRC2
19	GROMMET
20	MAY W10502919
21	BRACKET, CONSOLE (CE
22	BRACKET, CONTROL
