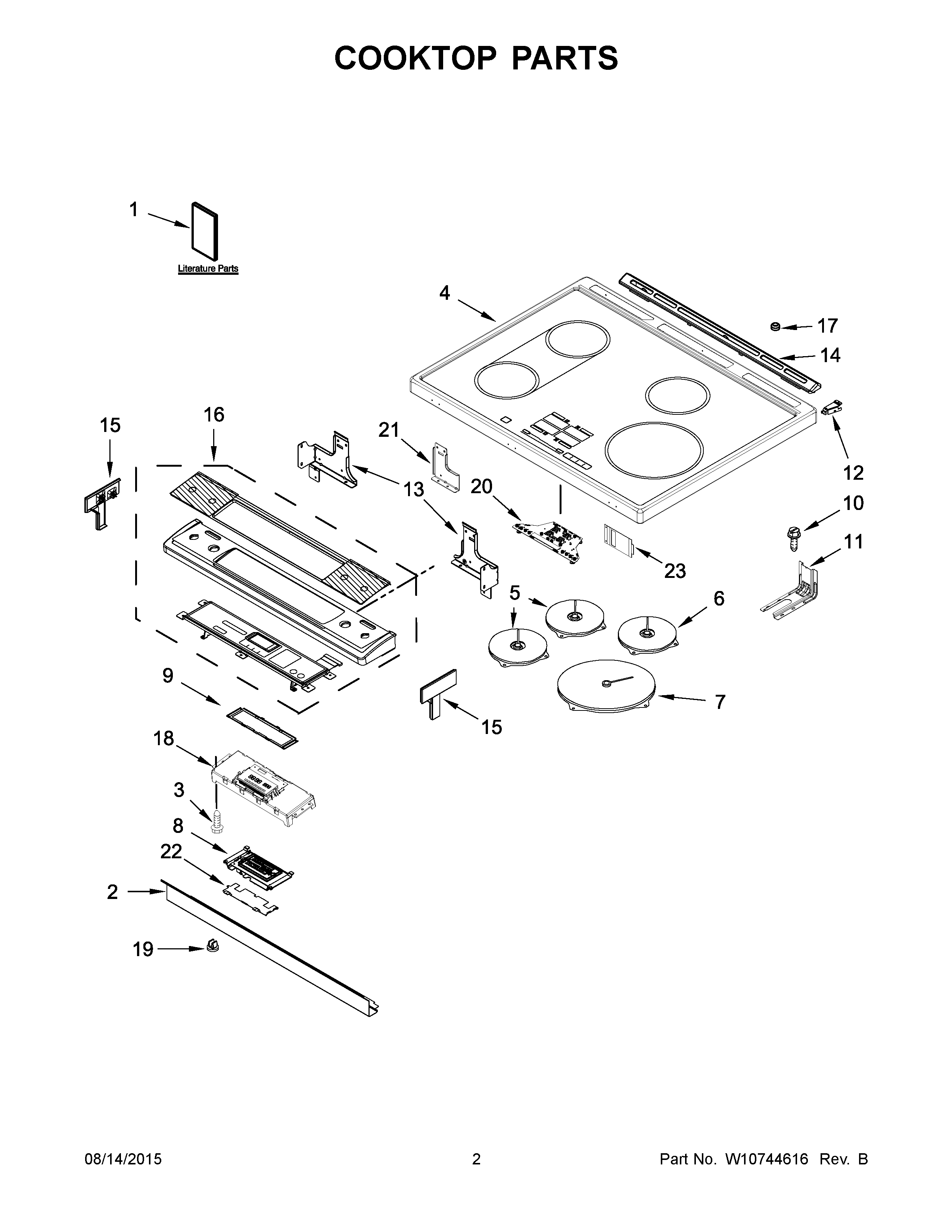

JIS1450CDS0 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10740211
NI	MAY W10598170
NI	CLIP, WIRE
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10580316
NI	MAY W10575120
1	INSTALLATION, INSTRUCTIONS
1C	TIPS, SAFE COOKING (ENGLISH)
1A	USE AND CARE GUIDE
1G	WIRING DIAGRAM
1B	SHEET, TECH
1E	MAY W10400064
1D	TIPS, SAFE COOKING (FRENCH)
1F	MAY W10400065
2	MAY W10743281
3	SCREW
4	COOKTOP (BLACK)
5	ELEMENT (LEFT FRONT AND LEFT REAR)
6	HOTPLATE (LEFT FRONT AND RIGHT REAR)
7	HOTPLATE (RR)
8	MAY W10603095
9	BRACKET, CONTROL
10	SCREW, ANTI-TIP KIT
11	BRACKET, ANTI-TIP
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13	SUPPORT, COOKTOP (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
14	VENT, TRIM TOP (STAINLESS)
15A	ENDCAP (STAINLESS (RIGHT))
15	ENDCAP (STAINLESS (LEFT))
16	CONSOLE (STAINLESS)
17	BUMPER
18	CONTROL, MRC2
19	GROMMET
20	USER, INTERFACE
21	BRACKET, CONSOLE (CE
22	BRACKET, CONTROL
23	SHIELD, KEYPAD
