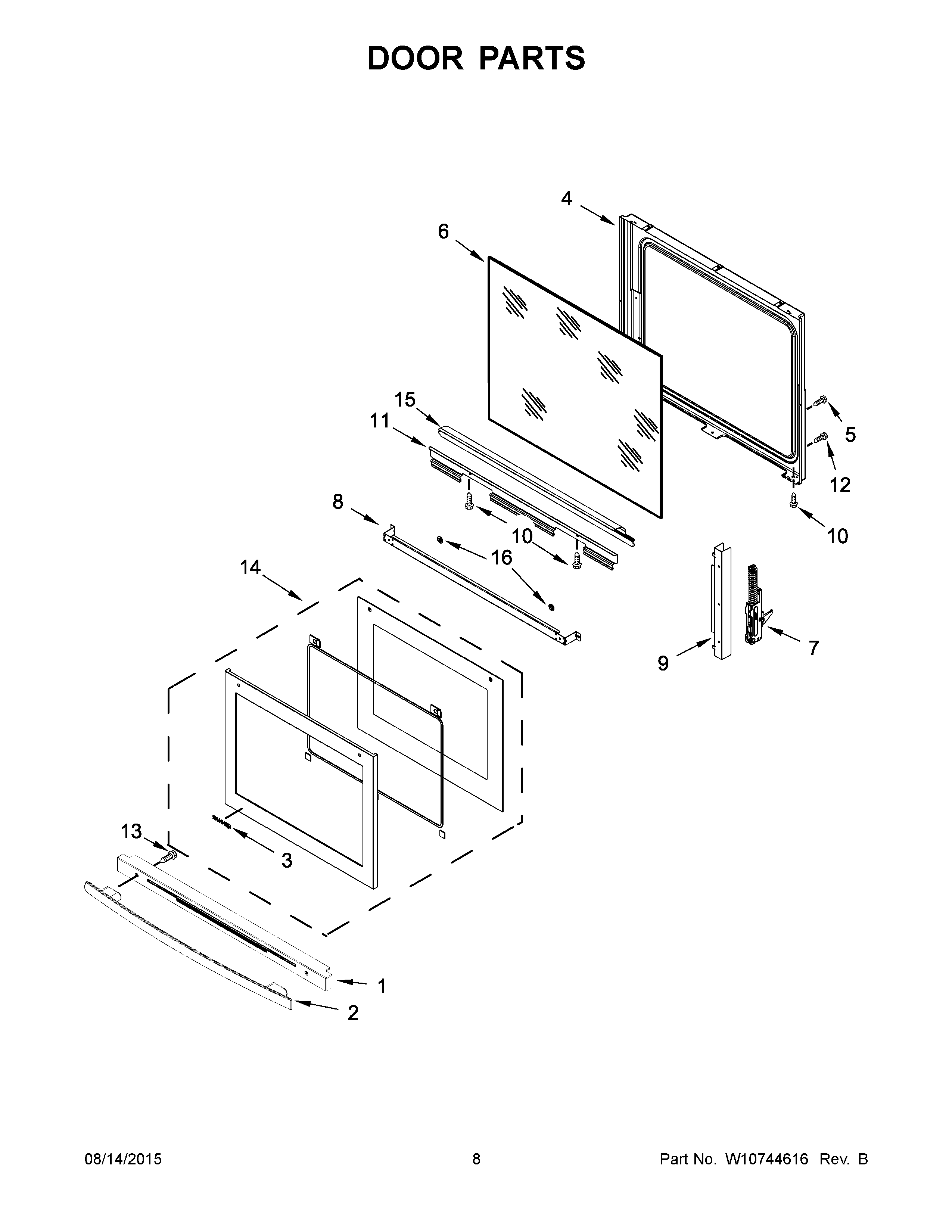

JIS1450CDS0 05 – DOOR PARTS

Products

Position	Product
1	VENT, TRIM TOP (STAINLESS)
2	ASSEMBLY, DOOR HANDLE (STAINLESS)
3	ASSEMBLY, BADGE (STAINLESS)
4	MAY W10541882
5	SCREW
6	MAY W10541888
7	HINGE, SLOW CLOSE (STAINLESS MODELS)
8	BRACKET, GLASS UPPER HANDLE
9	MAY W10541883
10	SCREW
11	MAY W10541885
12	MAY W10031780
13	SCREW
14	ASSEMBLY, OUTER DOOR (STAINLESS)
15	SCOOP, DOOR (STAINLESS)
16	WASHER, DOOR
