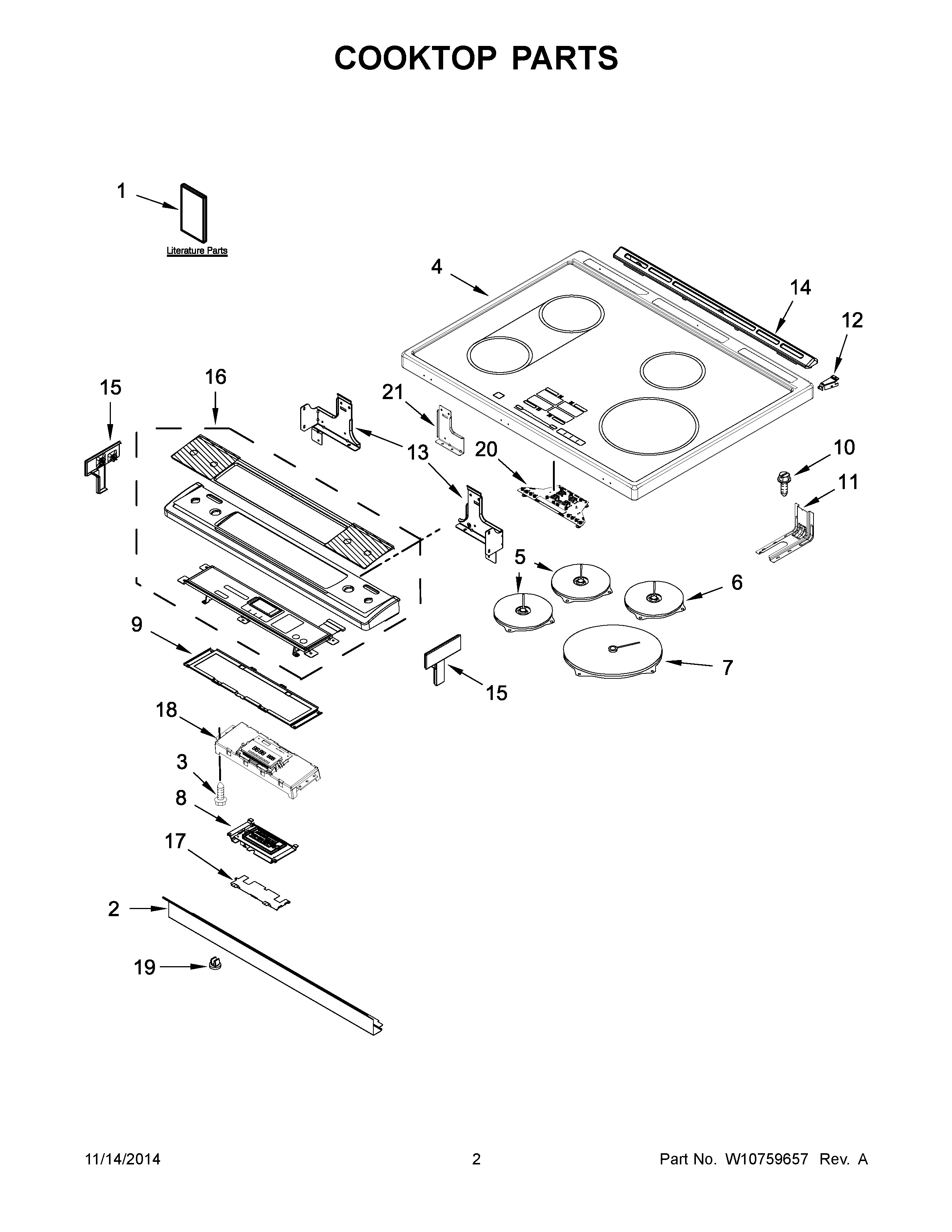

JIS1450DP0 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10598170
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10740205
NI	MAY W10580316
NI	MAY W10575120
1C	TIPS, SAFE COOKING (ENGLISH)
1B	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
1A	USE AND CARE GUIDE
1F	MAY W10400065
1E	MAY W10400064
1G	WIRING DIAGRAM
1D	TIPS, SAFE COOKING (FRENCH)
2	CONSOLE, LOWE
3	SCREW
4	COOKTOP (BLACK)
5	ELEMENT (LEFT FRONT AND LEFT REAR)
6	HOTPLATE (LEFT FRONT AND RIGHT REAR)
7	HOTPLATE (RR)
8	MAY W10603095
9	BRACKET, CONTROL
10	SCREW, ANTI-TIP KIT
11	BRACKET, ANTI-TIP
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13A	SUPPORT, COOKTOP (LEFT)
13	SUPPORT, COOKTOP (RIGHT)
14	VENT, TRIM TOP (STAINLESS)
15A	ENDCAP (STAINLESS (RIGHT))
15	ENDCAP (STAINLESS (LEFT))
16	CONSOLE (STAINLESS)
17	BRACKET, CONTROL
18	CONTROL, MRC2
19	GROMMET
20	MAY W10502919
21	BRACKET, CONSOLE (CE
