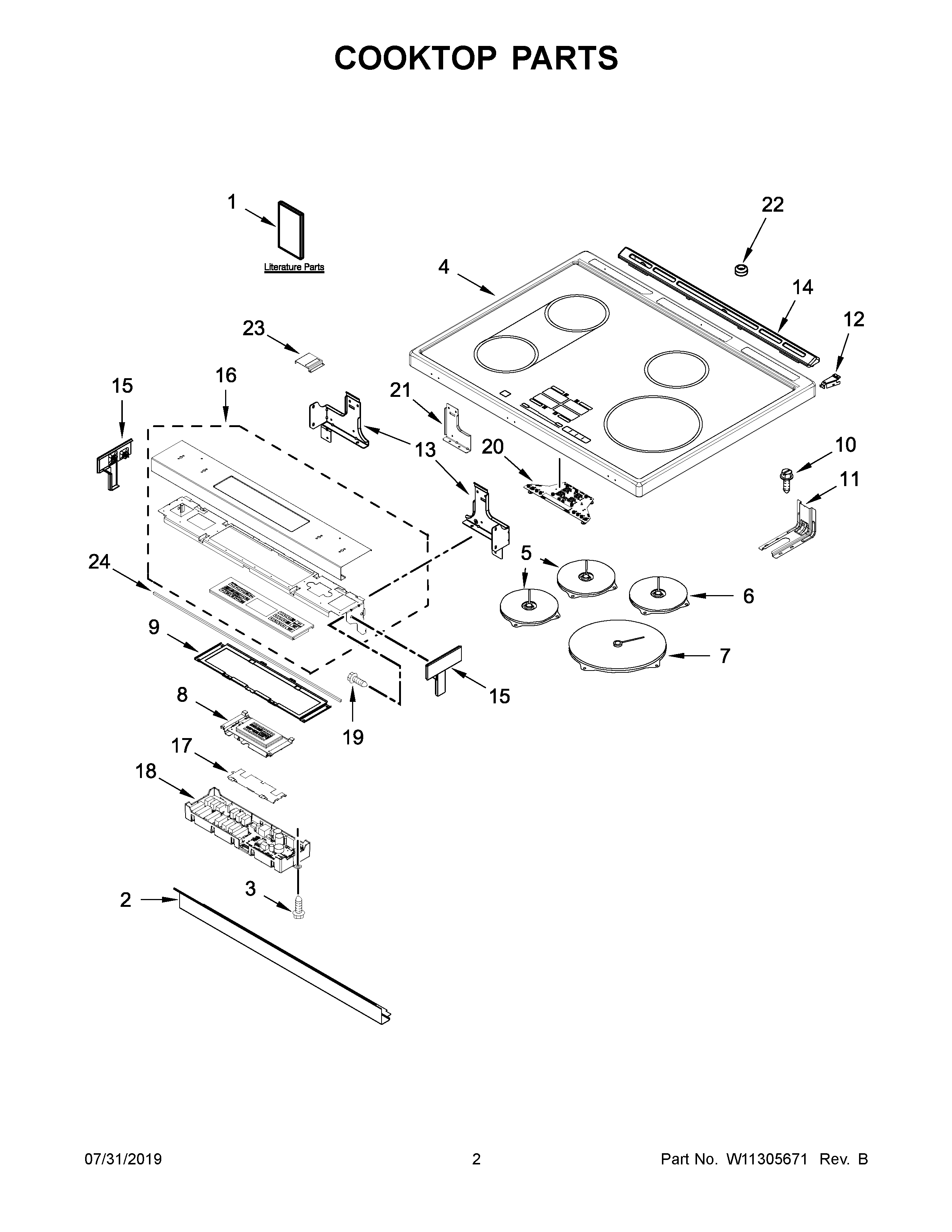

JIS1450DP2 02 – COOKTOP PARTSadmin2025-04-26T09:24:16+00:00JIS1450DP2 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, MAIN |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W11172426 |
| NI | MAY W10575120 |
| NI | MAY W11172530 |
| 1B | SHEET, TECH |
| 1D | MAY W10400065 |
| 1C | MAY W10400064 |
| 1 | INSTALLATION, INSTRUCTIONS |
| 1A | USE AND CARE GUIDE |
| 1E | WIRING DIAGRAM |
| 2 | MAY W10743281 |
| 3 | SCREW |
| 4 | COOKTOP (BLACK) |
| 5 | ELEMENT (LEFT FRONT AND LEFT REAR) |
| 6 | HOTPLATE (LEFT FRONT AND RIGHT REAR) |
| 7 | HOTPLATE (RR) |
| 8 | MAY W10759324 |
| 9 | BRACKET, CONTROL |
| 10 | SCREW, ANTI-TIP KIT |
| 11 | BRACKET, ANTI-TIP |
| 12 | BRACE, CORNER (LEFT) |
| 12A | BRACE, CORNER (RIGHT) |
| 13A | SUPPORT, COOKTOP (LEFT) |
| 13 | SUPPORT, COOKTOP (RIGHT) |
| 14 | VENT, TRIM TOP (STAINLESS) |
| 15A | ENDCAP (STAINLESS (RIGHT)) |
| 15 | ENDCAP (STAINLESS (LEFT)) |
| 16 | CONSOLE (STAINLESS) |
| 17 | BRACKET, CONTROL |
| 18 | CONTROL, ELECTRONIC (MAXWELL) |
| 19 | SCREW |
| 20 | USER, INTERFACE |
| 21 | BRACKET, CONSOLE (CE |
| 22 | BUMPER |
| 23 | SHIELD, KEYPAD |
| 24 | GASKET, CONSOLE/COOKTOP |
