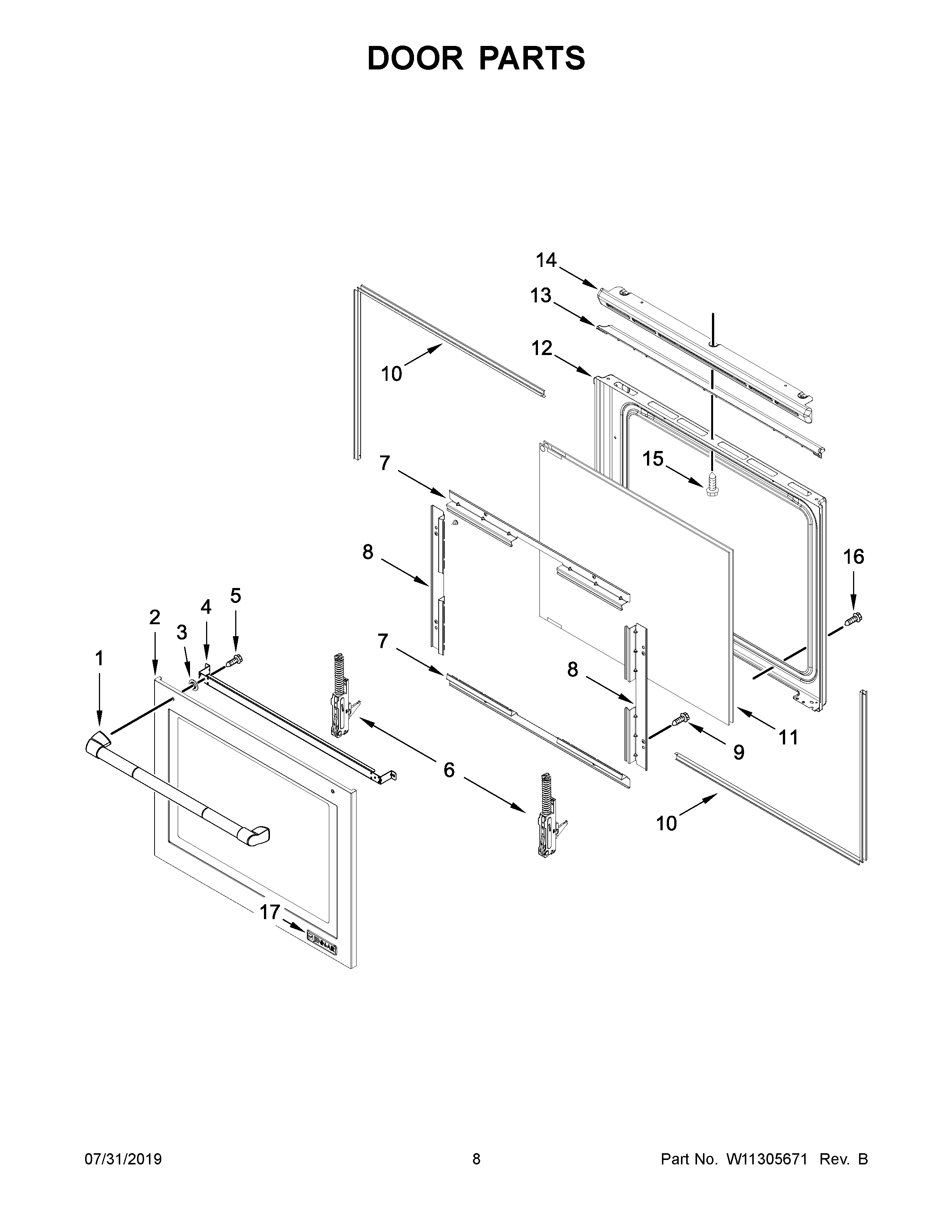

JIS1450DP2 05 – DOOR PARTSadmin2025-04-26T09:25:39+00:00JIS1450DP2 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, DOOR HANDLE (STAINLESS) |
| 2 | ASSEMBLY, OUTER DOOR (STAINLESS) |
| 3 | WASHER, DOOR |
| 4 | BRACKET, GLASS UPPER HANDLE |
| 5 | MAY W10530626 |
| 6 | HINGE, SLOW CLOSE |
| 7 | RAIL, HORIZONTAL SUPPORT |
| 8 | RAIL, VERTICAL SUPPORT |
| 9 | SCREW |
| 10 | SPACER, GLASS |
| 11 | MAY W11223202 |
| 12 | LINER, DOOR |
| 13 | SCOOP, DOOR (STAINLESS) |
| 14 | VENT, TRIM TOP (STAINLESS) |
| 15 | SCREW |
| 16 | MAY W10031780 |
| 17 | MAY W10159578 |
