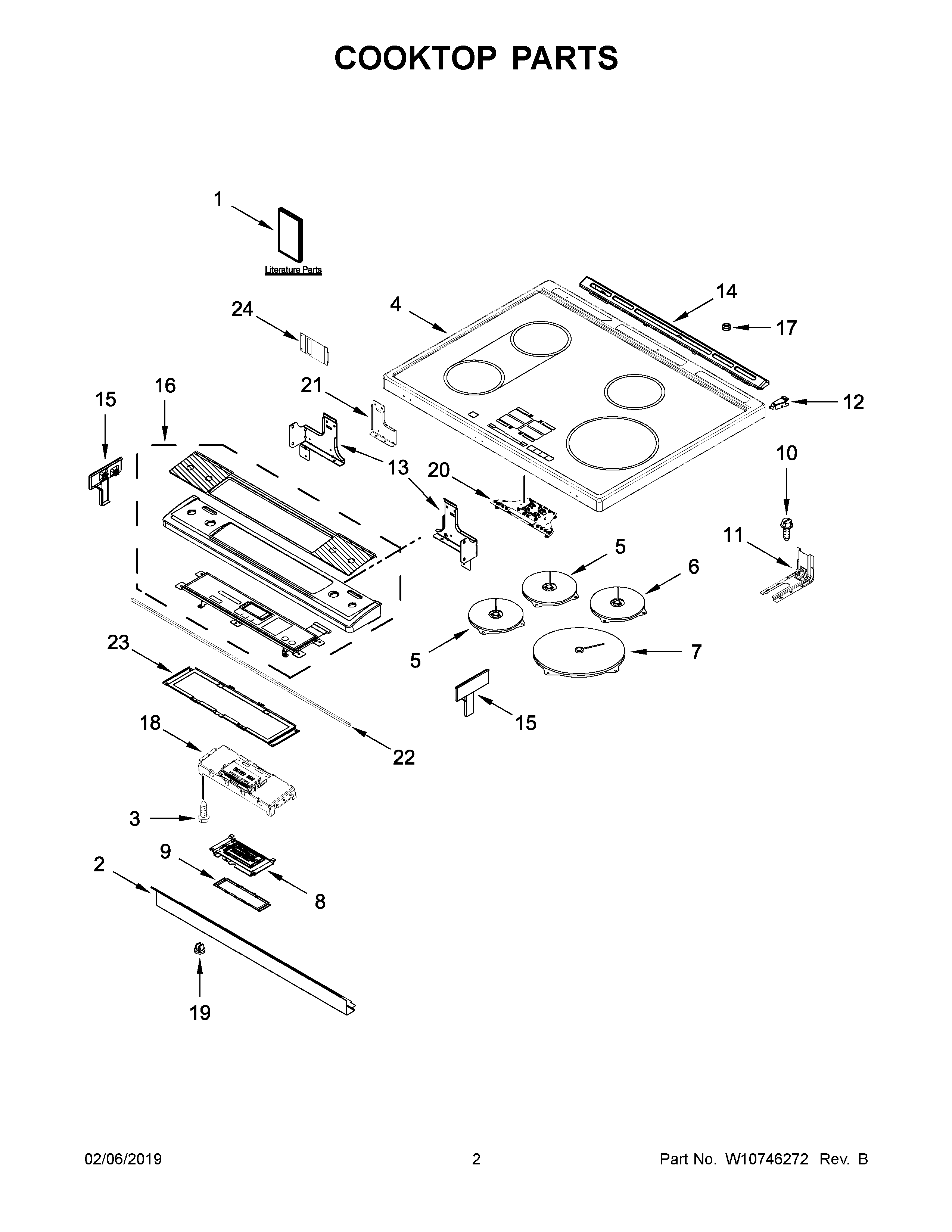

JIS1450DS0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	MAY W10580316
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10598170
NI	MAY W10575120
NI	CLIP, WIRE
1E	WIRING DIAGRAM
1A	USE AND CARE GUIDE
1B	SHEET, TECH
1	MAY W11047689
1D	MAY W10400065
1C	MAY W10400064
2	MAY W10743281
3	SCREW
4	COOKTOP (BLACK)
5	ELEMENT (LEFT FRONT AND LEFT REAR)
6	HOTPLATE (LEFT FRONT AND RIGHT REAR)
7	HOTPLATE (RR)
8	MAY W10603095
9	BRACKET, CONTROL
10	SCREW, ANTI-TIP KIT
11	BRACKET, ANTI-TIP
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13	SUPPORT, COOKTOP (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
14	VENT, TRIM TOP (STAINLESS)
15A	ENDCAP (STAINLESS (RIGHT))
15	ENDCAP (STAINLESS (LEFT))
16	CONSOLE (STAINLESS)
17	BUMPER
18	CONTROL, MRC2
19	GROMMET
20	USER, INTERFACE
21	BRACKET, CONSOLE (CE
22	GASKET, CONSOLE/COOKTOP
23	BRACKET, CONTROL
24	SHIELD, KEYPAD
