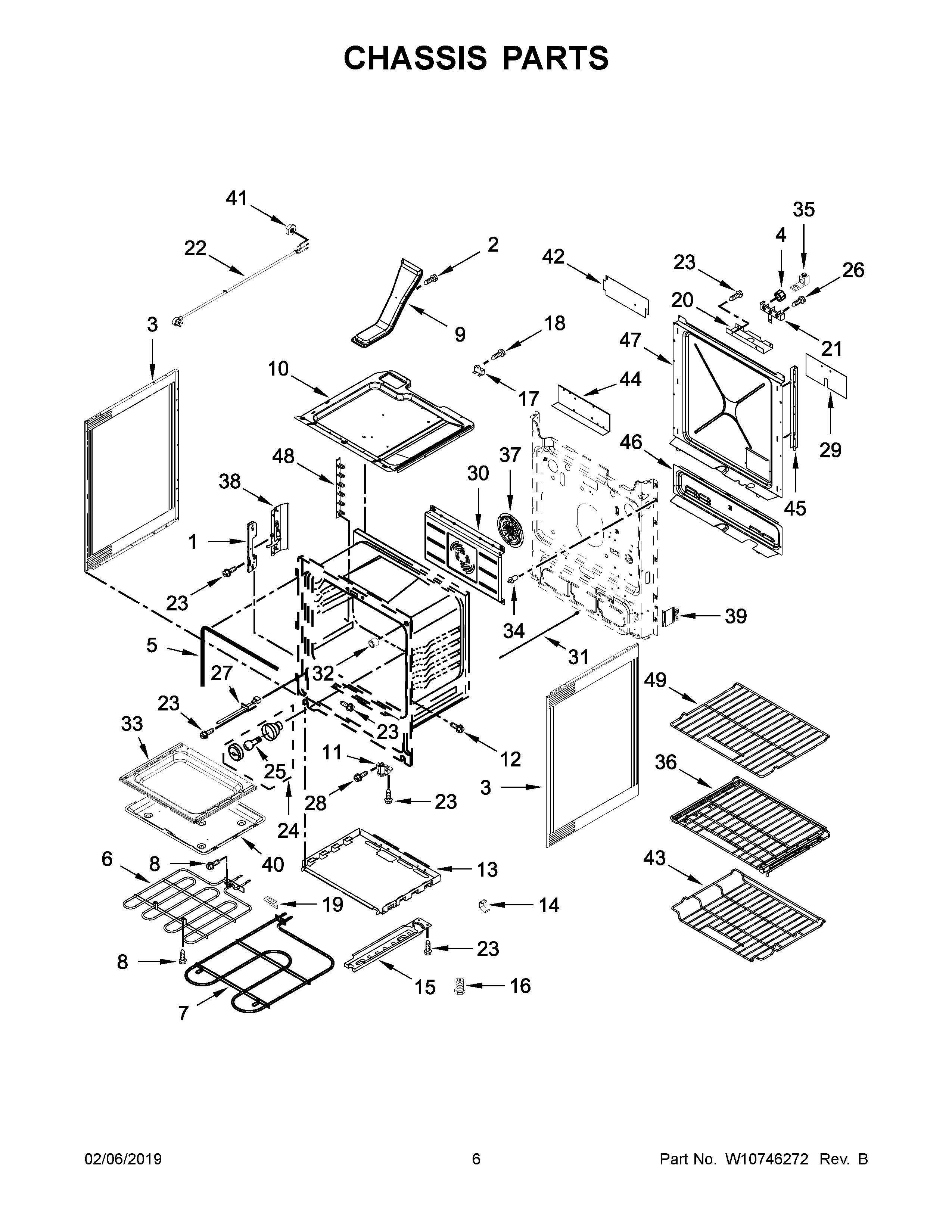

JIS1450DS0 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7111P017-60
NI	INSULATION, HEAT SHIELD
NI	INSULATION, WRAPPER
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BOTTOM
NI	STRAP, INSULATION
NI	INSULATION, MAIN BACK
1	HINGE, RECEIVER
3	PANEL, SIDE (BLACK)
4	NUT
5	MAY W10162385
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	MAY W10362924
9	ASSEMBLY, FLUE
10	BOX, BURNER SI
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	SHIELD, BAKE
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	MAY W10035900
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	CORD, POWER
23	SCREW
24	ASSEMBLY, LIGHT
25	RANGE ONLY 40W 120V APPL BULB
26	SCREW
27	MAY W10586204
28	SCREW
29	MAY W10655441
30	BAFFLE, FULL CONVECTION
31	ROD, REAR DOOR
32	SPACER, DOOR
33	BOTTOM, OVEN
34	SWITCH, DOOR
35	KIT, BARE WIRE ADAPTER BLOCK
36	MAY W10554008
37	MAY W10874472
38	RECEIVER, SLOW CLOSE HINGE
39	BRACKET, SUPPORT
40	MAY W10346147
41	WP7103P027-60 Whirlpool Nut
42	SHIELD, WIRE
43	RACK, MAXIMUM CAPACITY
44	SHIELD, HEAT
45	MAY W10162241
46	MAY W10162248
47	MAY W10289172
48	RACK, LADDER
49	RACK, HEAVY DUTY
