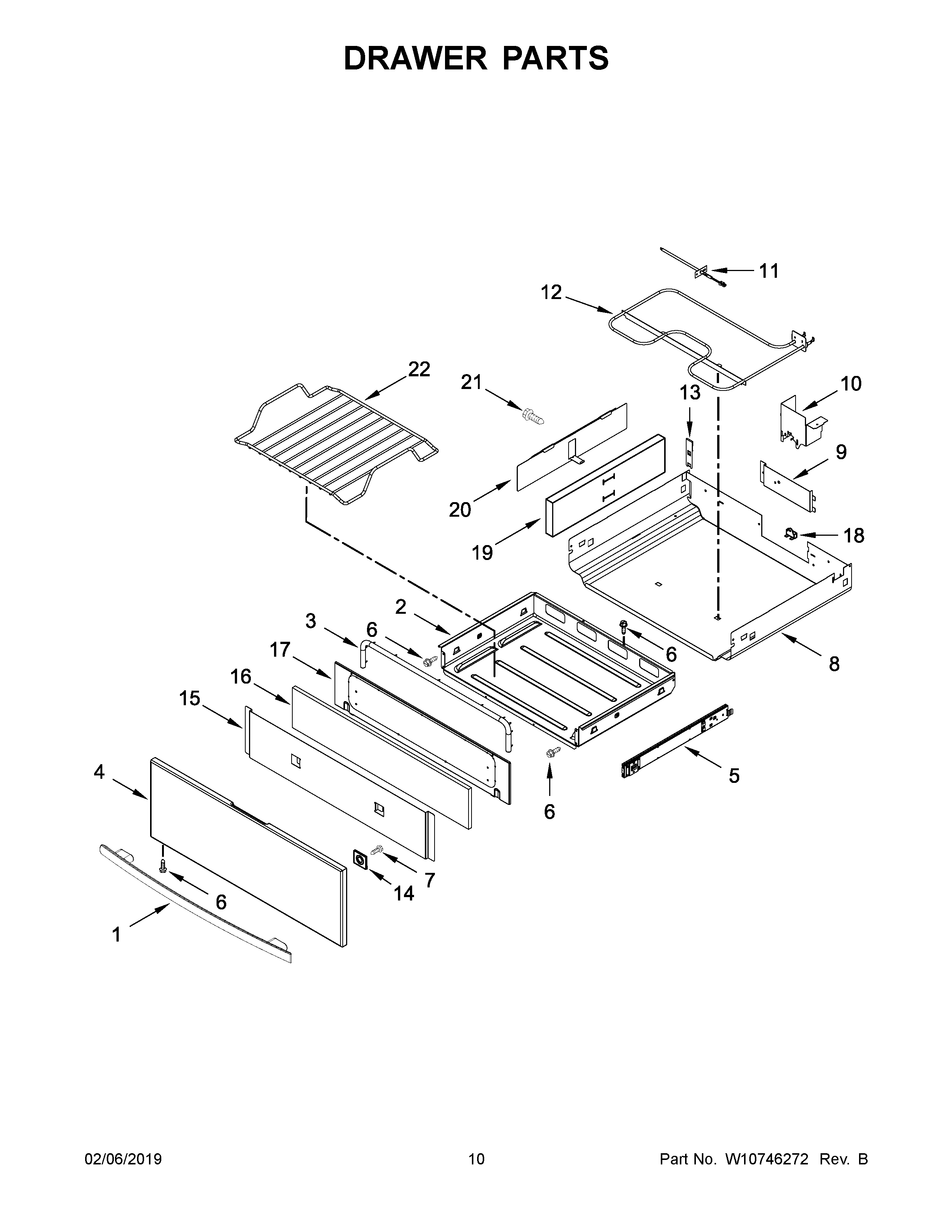

JIS1450DS0 06 – DRAWER PARTS

Products

Position	Product
1	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	DRAWER, BAKE
3	SEAL, DRAWER
4	PANEL, DRAWER FRONT (STAINLESS)
5	SLIDE, DRAWER (LEFT)
5A	SLIDE, DRAWER (RIGHT)
7	SCREW
8	MAY W10634260
9	COVER, GAS VALVE
10	MAY W10634259
11	SENSOR
12	ELEMENT, BAKE
13	COVER, SIDE
14	MAY 3823F017-45
15	INSULATION, DRAWER FRONT
16	INSULATION, DRAWER
17	PANEL, FRONT INNER
18	FUSE, THERMAL
19	MAY W10550984
20	MAY W10550985
21	SCREW
22	RACK, BAKE DRAWER
