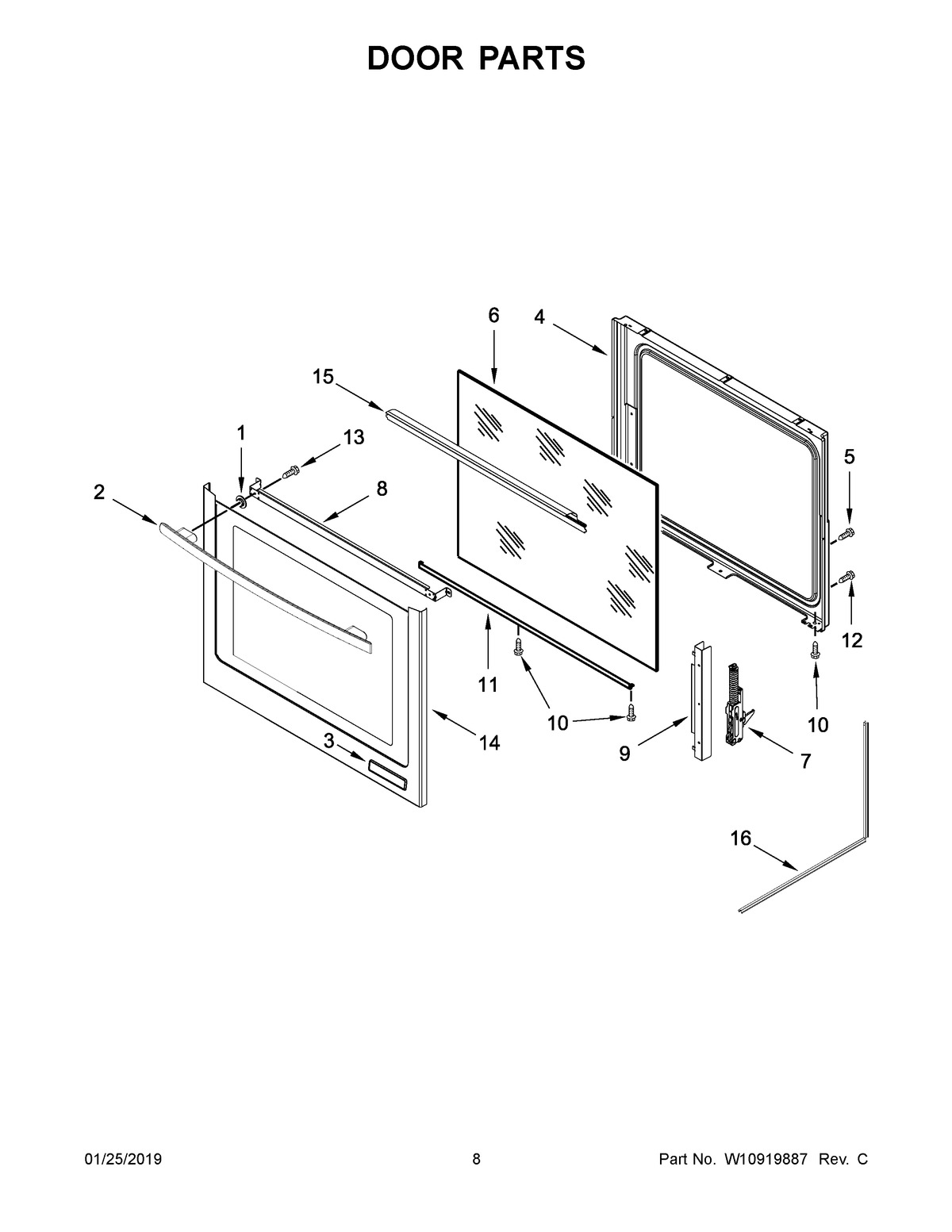

JIS1450DS1 05 – DOOR PARTS

JIS1450DS1 05 – DOOR PARTS

Written by

in

JIS1450DS1 05 – DOOR PARTS

Products

PositionProduct
1WASHER, DOOR
2ASSEMBLY, DOOR HANDLE (STAINLESS)
3ASSEMBLY, BADGE (STAINLESS)
4LINER, DOOR
5SCREW
6GLASS, INNER
7HINGE, SLOW CLOSE
8BRACKET, GLASS UPPER HANDLE
9RAIL, VERTICAL SUPPORT
10SCREW
11RAIL, HORIZONTAL SUPPORT
12MAY W10031780
13SCREW (STAINLESS MODELS)
14ASSEMBLY, OUTER DOOR (STAINLESS)
15SCOOP, DOOR (STAINLESS)
16SPACER, GLASS
