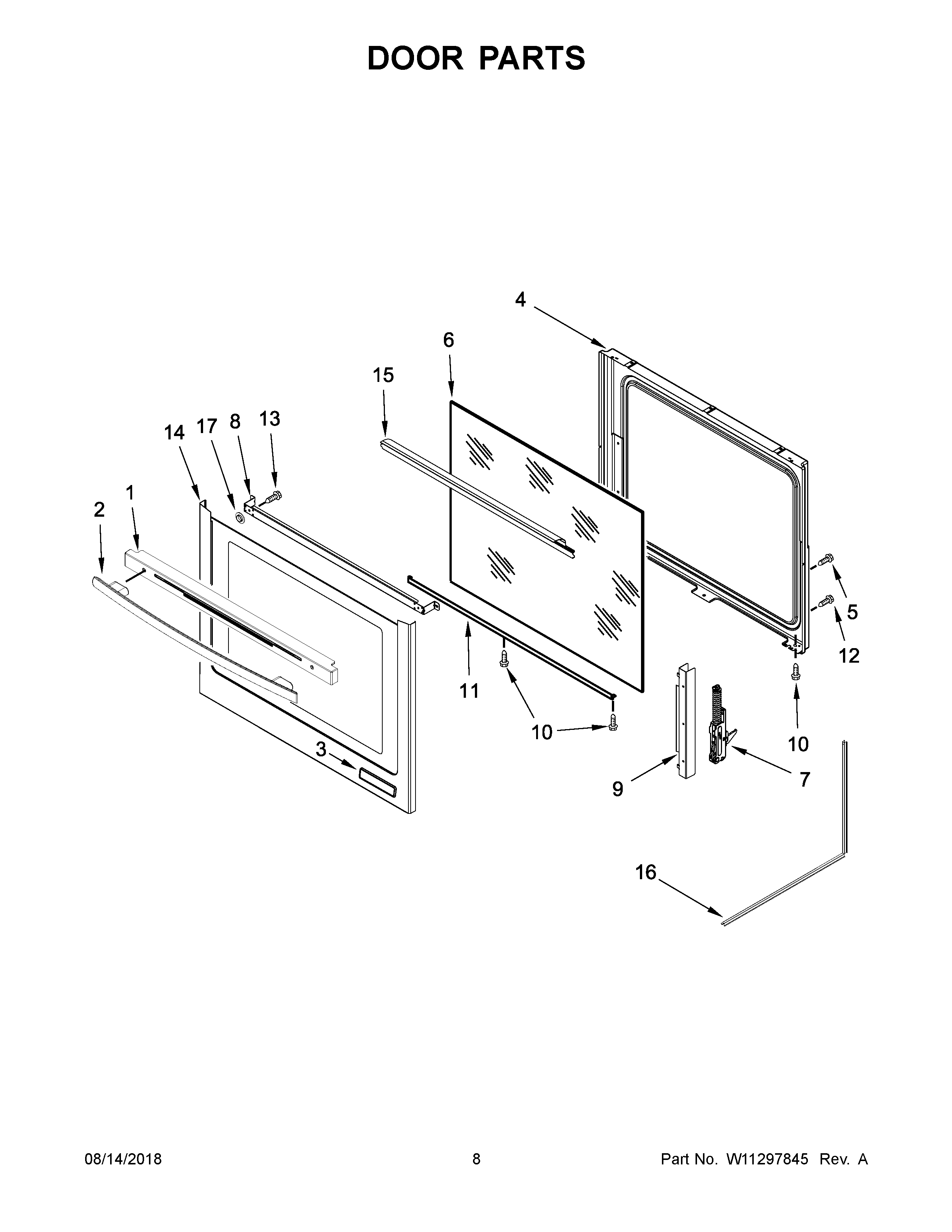

JIS1450DS2 05 – DOOR PARTS

Products

Position	Product
1	VENT, TRIM TOP (STAINLESS)
2	ASSEMBLY, DOOR HANDLE (STAINLESS)
3	ASSEMBLY, BADGE (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	HINGE, SLOW CLOSE
8	BRACKET, GLASS UPPER HANDLE
9	RAIL, VERTICAL SUPPORT
10	SCREW
11	RAIL, HORIZONTAL SUPPORT
12	MAY W10031780
13	SCREW
14	DOOR, COMPLETE (STAINLESS)
15	SCOOP, DOOR (STAINLESS)
16	SPACER, GLASS
17	WASHER, DOOR
