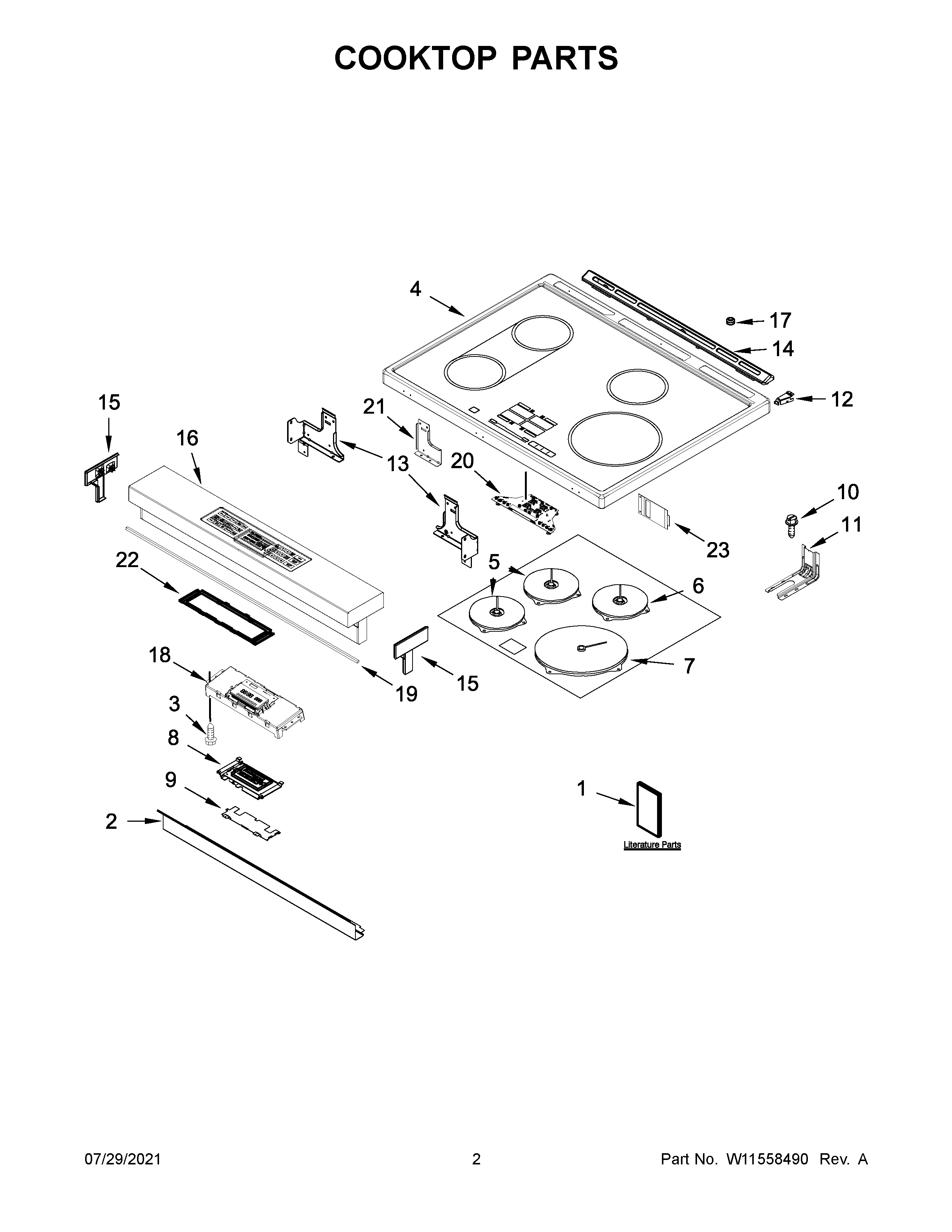

JIS1450DS3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11454514 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	3400964 Whirlpool Oven Clip
NI	W11226775 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
1	INSTALLATION, INSTRUCTIONS
1A	USE AND CARE GUIDE
1B	TECH SHEET
1C	QUICK START GUIDE
1D	QUICK START GUIDE (FRENCH)
2	W10743281 Whirlpool Mounting Bracket
3	SCREW
4	W10751485 Whirlpool Cooktop
5	W11672688 Whirlpool Surface Element
6	WPW10410580 Whirlpool Hot Plate
7	WPW10410578 Whirlpool Hot Plate
8	W11120573 Whirlpool Range Power Board
9	W10558372 Whirlpool Bracket Mounting
10	SCREW, ANTI-TIP KIT
11	W11502257 Whirlpool Anchor Tip
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11170796 Whirlpool Vent Trim
15	W10557751 Whirlpool Panel End Cap
15A	W10557754 Whirlpool Endcap Panel
16	W11043339 Whirlpool Control Panel
17	W11104127 Whirlpool Bumper Assembly
18	W11296051 Whirlpool Electronic Control Board + Core
19	W10802441 Whirlpool Gasket
20	W11677629 Whirlpool Display Assembly
21	W10598048 Whirlpool Support Bracket
22	W10557780 Whirlpool Bracket Mounting
23	SHIELD, KEYPAD
