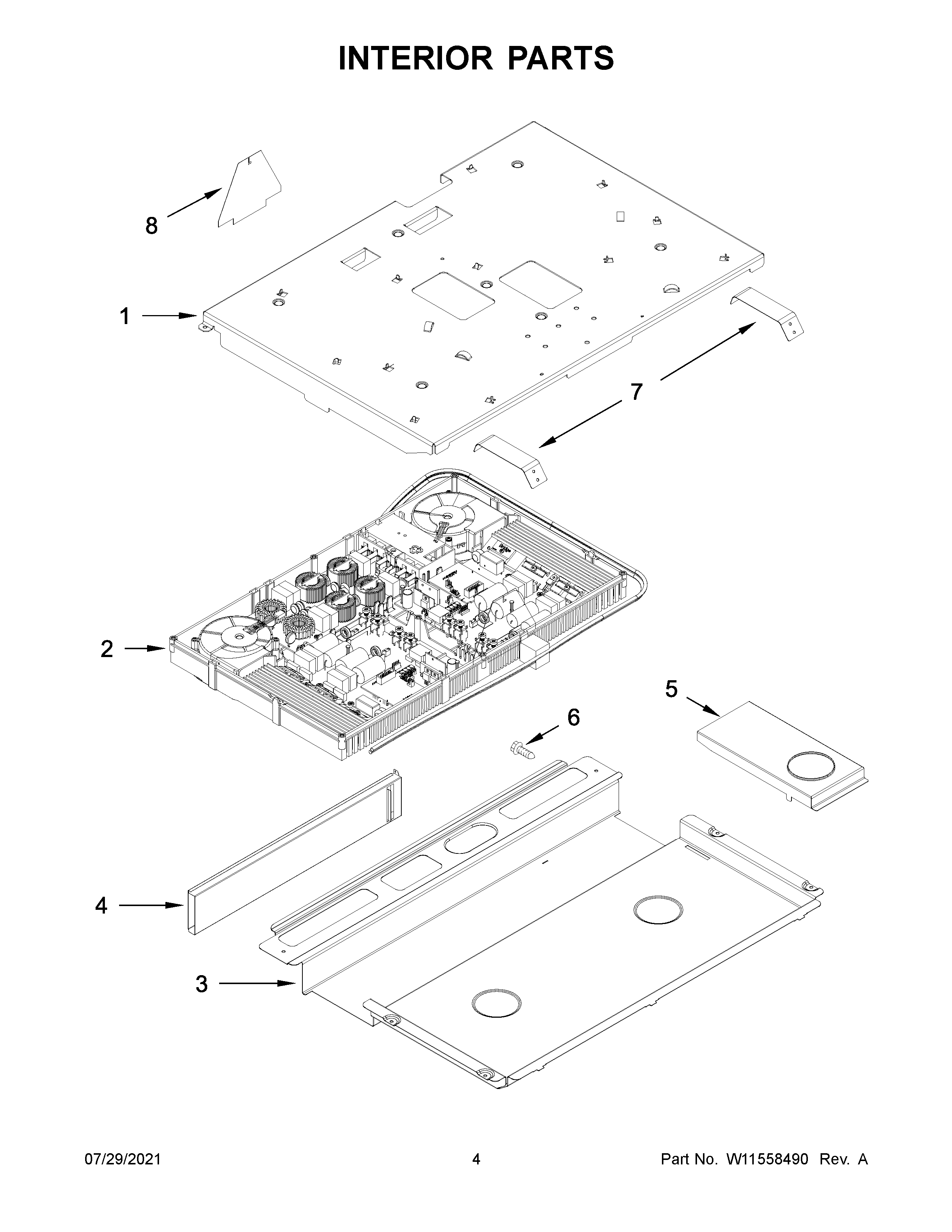

JIS1450DS3 03 – INTERIOR PARTS

Products

Position	Product
1	PAN, INDUCTION (UPPER)
2	ASSEMBLY, INDUCTION MODULE
3	W10536319 Whirlpool Pan
4	ASSEMBLY, INDUCTION SIDE DUCT
5	DUCT, RECIRCULATION PLATE
6	WP3196557 Whirlpool Screw
7	SPRING (CANTILEVER)
8	W10884792 Whirlpool Appliance Insulation
