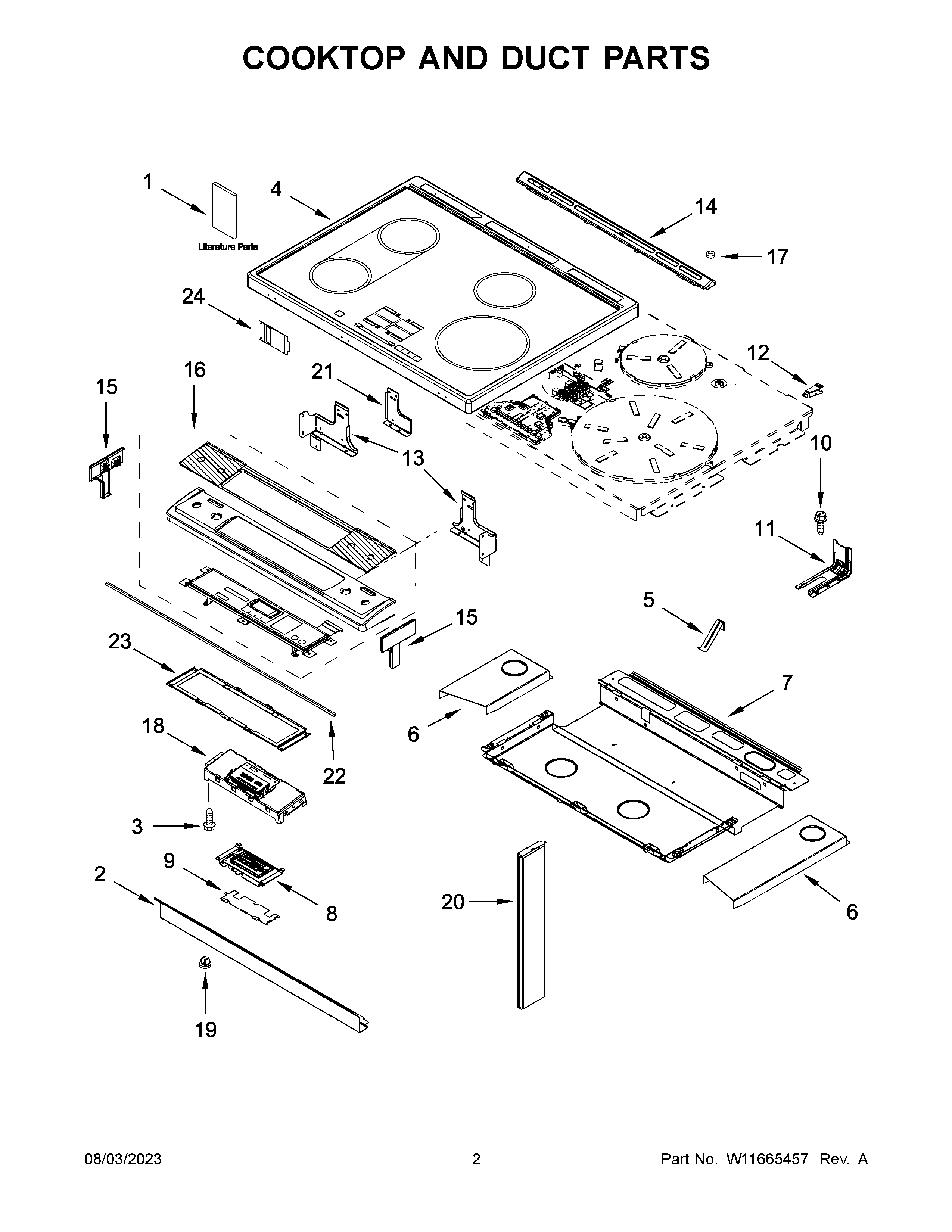

JIS1450ML0 02 – COOKTOP AND DUCT PARTS

Products

Position	Product
NI	W11226772 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11691348 Whirlpool Electronic Control Core
NI	W11025616 Whirlpool Wire Harness
1C	DIMENSION GUIDE
1A	TECH SHEET
1	USE AND CARE GUIDE
1B	QUICK START GUIDE
2	W10743281 Whirlpool Mounting Bracket
3	SCREW
4	COOKTOP (BLACK)
5	SPRING (CANTILEVER)
6A	DUCT, RECIRCULATION PLATE (RIGHT)
6	DUCT, RECIRCULATION PLATE (LEFT)
7	PAN, INDUCTION (LOWER)
8	W11108634 Whirlpool Display
9	W10558372 Whirlpool Bracket Mounting
10	SCREW, ANTI-TIP KIT
11	W11502257 Whirlpool Anchor Tip
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11170796 Whirlpool Vent Trim
15A	W10557754 Whirlpool Endcap Panel
15	W10557751 Whirlpool Panel End Cap
16	CONSOLE (STAINLESS)
17	W11104127 Whirlpool Bumper Assembly
18	W11701893-includeCORE Whirlpool Electronic Control+Core
19	W11025100 Whirlpool Insert
20	ASSEMBLY, INDUCTION SIDE DUCT
21	W10598048 Whirlpool Support Bracket
22	W10802441 Whirlpool Gasket
23	W10557780 Whirlpool Bracket Mounting
24	SHIELD, KEYPAD
