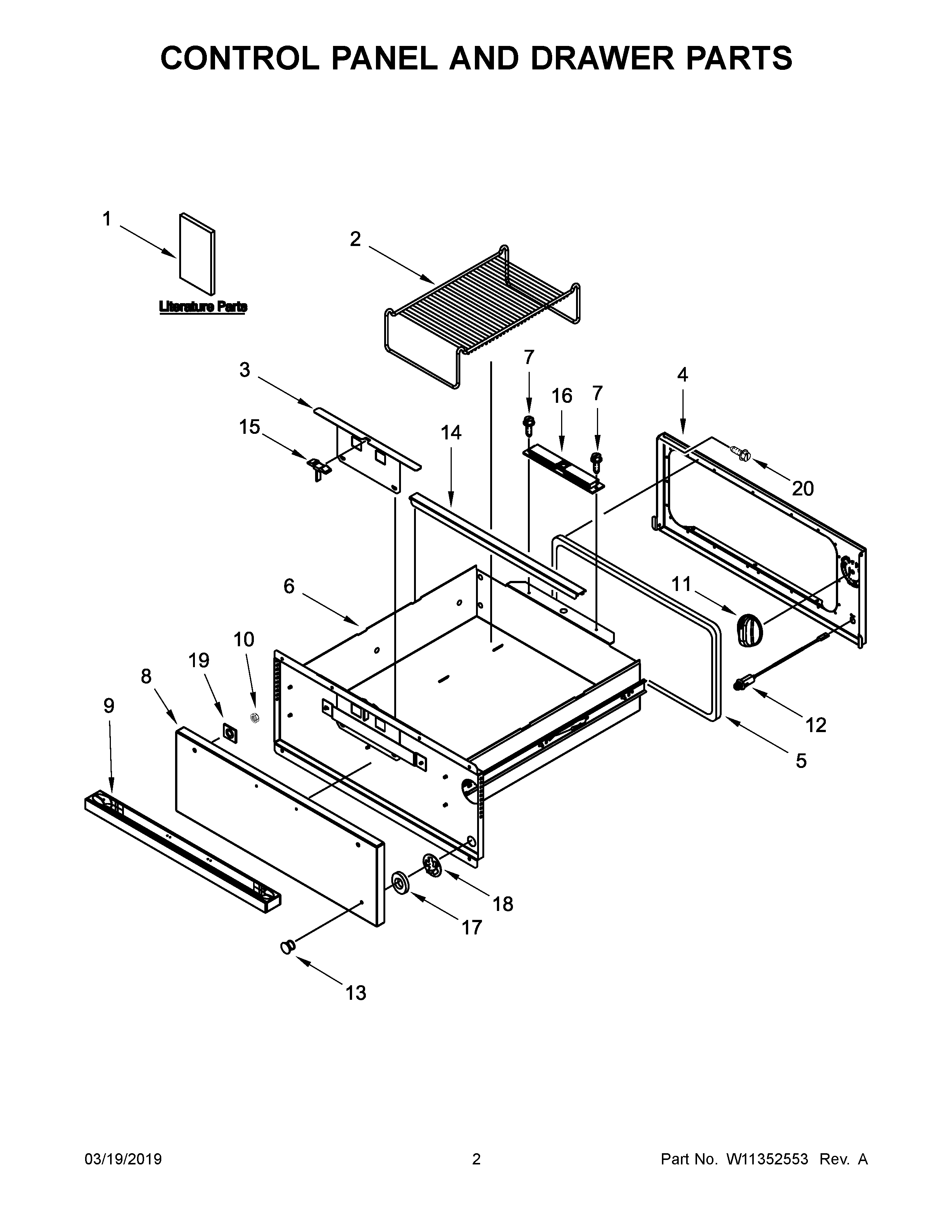

JJD3027IM00 02 – CONTROL PANEL AND DRAWER PARTS

JJD3027IM00 02 – CONTROL PANEL AND DRAWER PARTS

Written by

in

JJD3027IM00 02 – CONTROL PANEL AND DRAWER PARTS

Products

PositionProduct
1MAY W11295550
1ASHEET, TECH
1BMAY W11295554
2RACK, WARMING DRAWER
3SLIDE, VENT
4PANEL, FRONT
5GASKET, DRAWER
6ASSEMBLY, DRAWER
7MAY 7101P376-60
8MAY W11291105
9MAY W11250936
10NUT
11KNOB, THERMOSTAT
12LIGHT, INDICATOR
13LENS, INDICATOR
14RAIL, PAN
15GRIP, VENT
16MAGNET
17SPACER, LENS
18CLIP, LENS RETAINER
19MAY 3823F017-45
20MAY 7101P434-60
