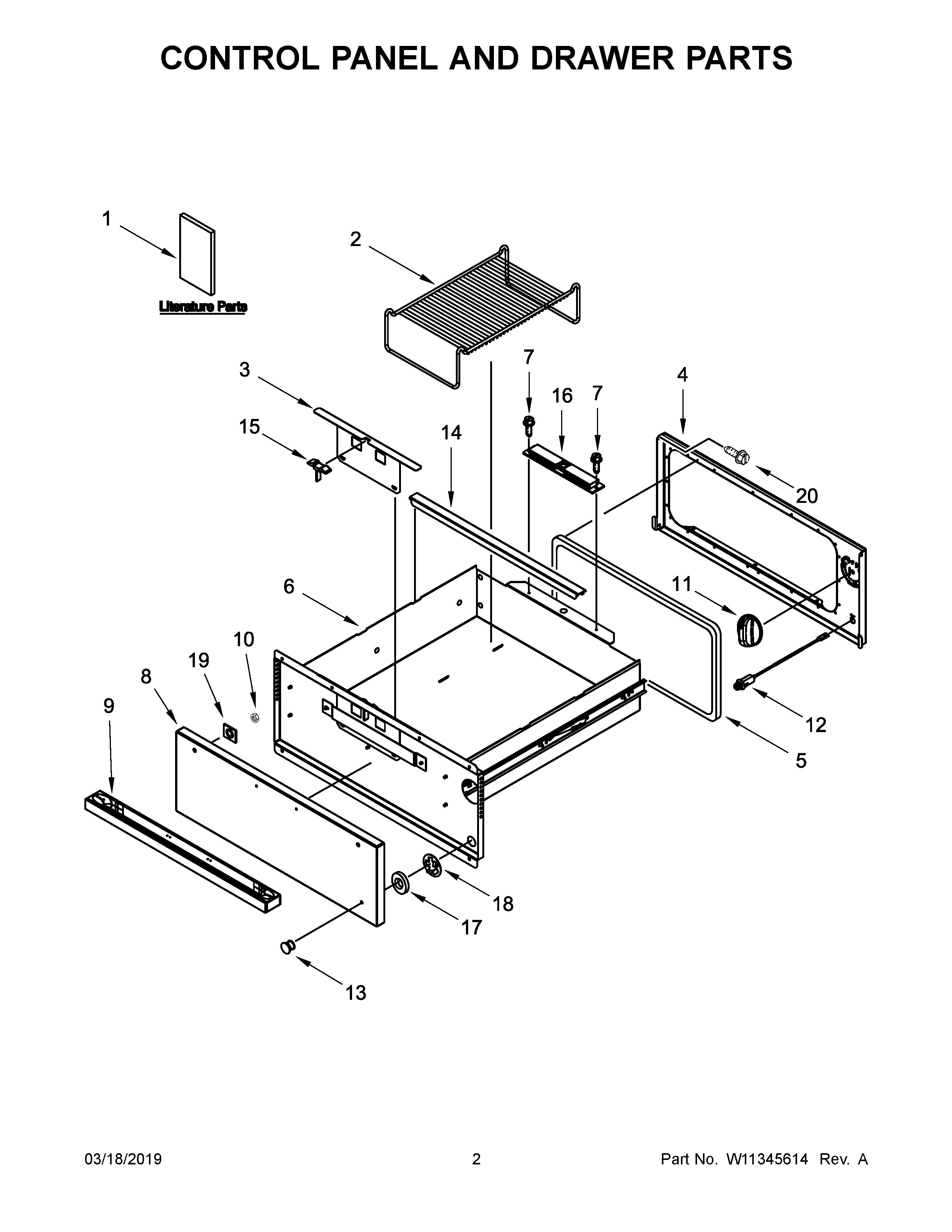

JJD3030IM00 02 – CONTROL PANEL AND DRAWER PARTS

JJD3030IM00 02 – CONTROL PANEL AND DRAWER PARTS

Written by

in

JJD3030IM00 02 – CONTROL PANEL AND DRAWER PARTS

Products

Position	Product
1B	MAY W11295554
1	MAY W11295550
1A	SHEET, TECH
2	RACK, WARMING DRAWER
3	SLIDE, VENT
4	PANEL, FRONT
5	GASKET, DRAWER
6	ASSEMBLY, DRAWER
7	MAY 7101P376-60
8	MAY W11291104
9	MAY W11250935
10	NUT
11	KNOB, THERMOSTAT
12	LIGHT, INDICATOR
13	LENS, INDICATOR
14	RAIL, PAN
15	GRIP, VENT
16	MAGNET
17	SPACER, LENS
18	CLIP, LENS RETAINER
19	MAY 3823F017-45
20	MAY 7101P434-60
