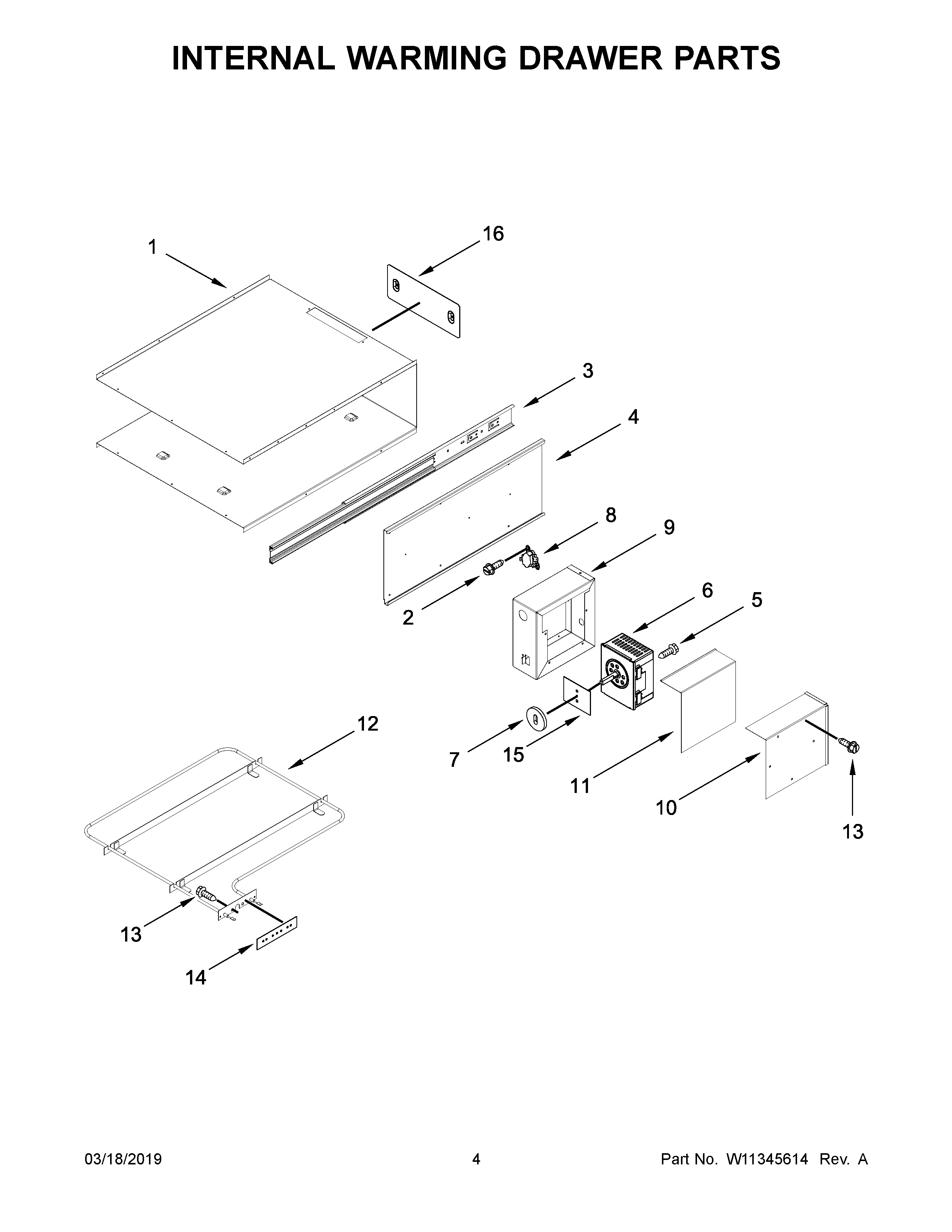

JJD3030IM00 03 – INTERNAL WARMING DRAWER PARTS

Products

Position	Product
NI	CORD, POWER
NI	SENSOR, SEALED
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW, GROUNDING
NI	RELIEF, STRAIN
1	WRAPPER
2	SCREW
3	ASSEMBLY, SLIDE
4	WALL, CAVITY (LEFT)
4A	WALL, CAVITY (RIGHT)
5	SCREW
6	CONTROL
7	GASKET, CONTROL
8	FUSE, THERMAL
9	ENCLOSURE, ELECTRIC
10	COVER, ENCLOSURE
11	GASKET, ENCLOSURE
12	ELEMENT, HEATING
13	Screw
14	SEAL, HEATING ELEMENT
15	SEAL, SWITCH
16	SHIELD, HEAT
