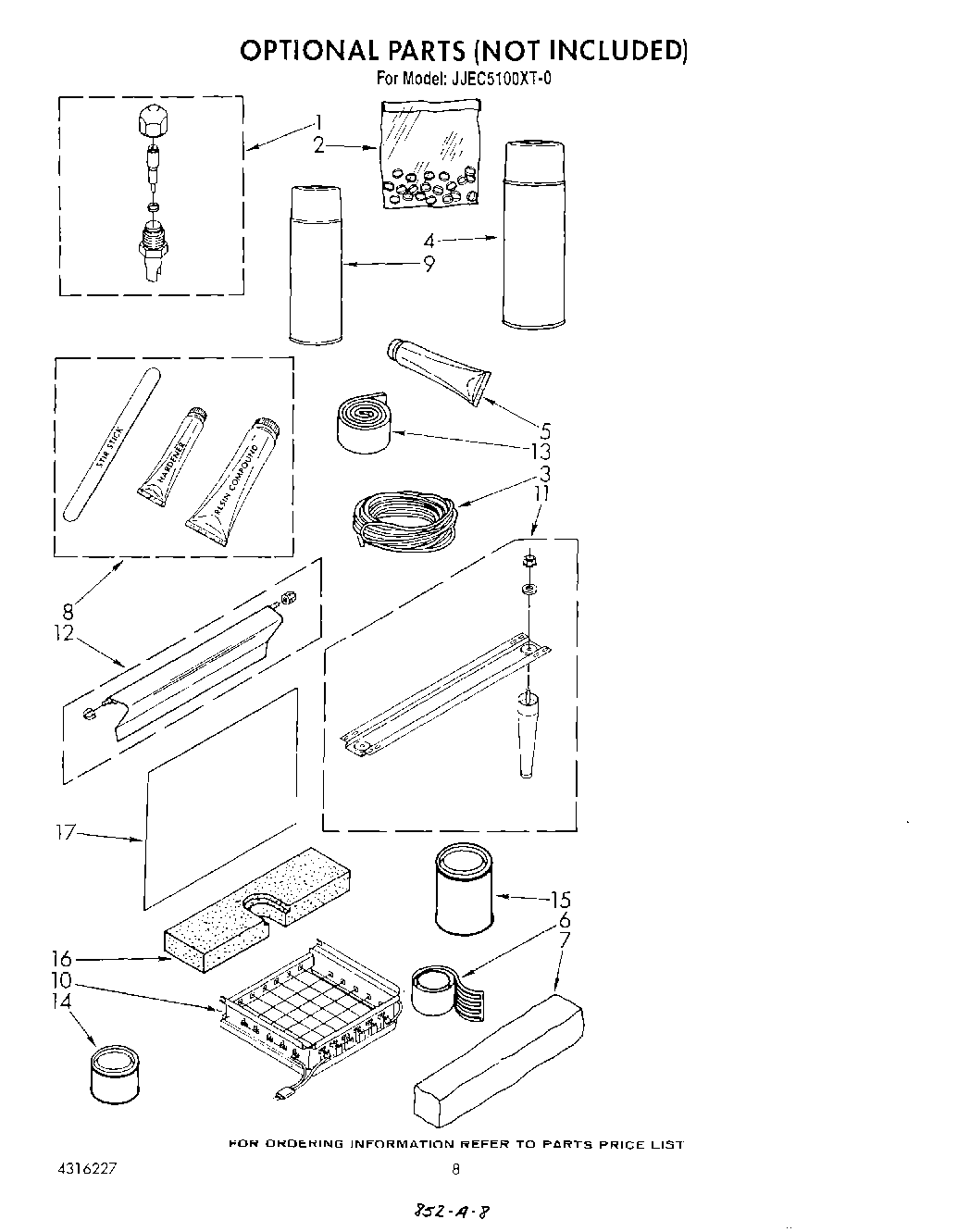

JJEC5100XT0 05 – LIT/OPTIONALadmin2025-04-26T09:32:34+00:00JJEC5100XT0 05 – LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | WP978025 Whirlpool Refrigerator Valve |
| 1 | VALVE, ACCESS (1/2``) |
| 1 | 978030 Whirlpool Refrigerator Valve |
| 1 | 978027 Whirlpool Refrigerator Primary Valve |
| 1 | 978026 Whirlpool Refrigerator Primary Valve |
| 1 | 876764 Whirlpool Refrigerator Primary Valve |
| 1 | VALVE, ACCESS (5/8``) |
| 2 | Seal, Ring (Access Valve) (20 - Pack) |
| 3 | Wire, 25`` Roll (White 12 GA.) |
| 3 | Wire, 25` Roll (Red 14 Ga.) |
| 3 | Wire, 25` Roll (Red 12 Ga.) |
| 3 | Wire, 25` Roll (Black 14 Ga.) |
| 3 | Wire, 25` Roll (Blue 16 Ga.) |
| 3 | Wire, 25`` Roll (White 14 GA.) |
| 3 | Wire, 25`` Roll (Black 12 GA.) |
| 4 | Adhesive, Insulation (24 Oz. Spray) |
| 5 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 6 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 7 | 4318168 Whirlpool Refrigerator Primary Permagum Sealer |
| 8 | WPL 799833 |
| 9 | Leveler (Thinner) (2oz.) |
| 9 | 350956 Whirlpool Spray Assembly |
| 9 | 350942 Whirlpool Spray Paint |
| 10 | Grid, Cutter (3/4`` - Cubes) |
| 10 | Grid, Cutter (1-1/4`` - Cubes (Complete Assembly)) |
| 11 | Leg, Leveling Kit |
| 12 | Ice Deflector Kit |
| 13 | TAPE, VINYL (3/4 X 108``) |
| 14 | WP503695 Whirlpool Refrigerator Sealer |
| 15 | WP505587 Whirlpool Refrigerator Sealer |
| 16 | Insulation, Kit (Bin Bottom) |
| 17 | Panel |
| 17 | Panel, Door (Walnut) |
| 17 | Panel, Door (Almond & Harvest Gold) |
| 17 | Panel, Door (White & Black) |
| 17 | Panel, Door (Stainless Steel) |
| 17 | WPL 758745 |
