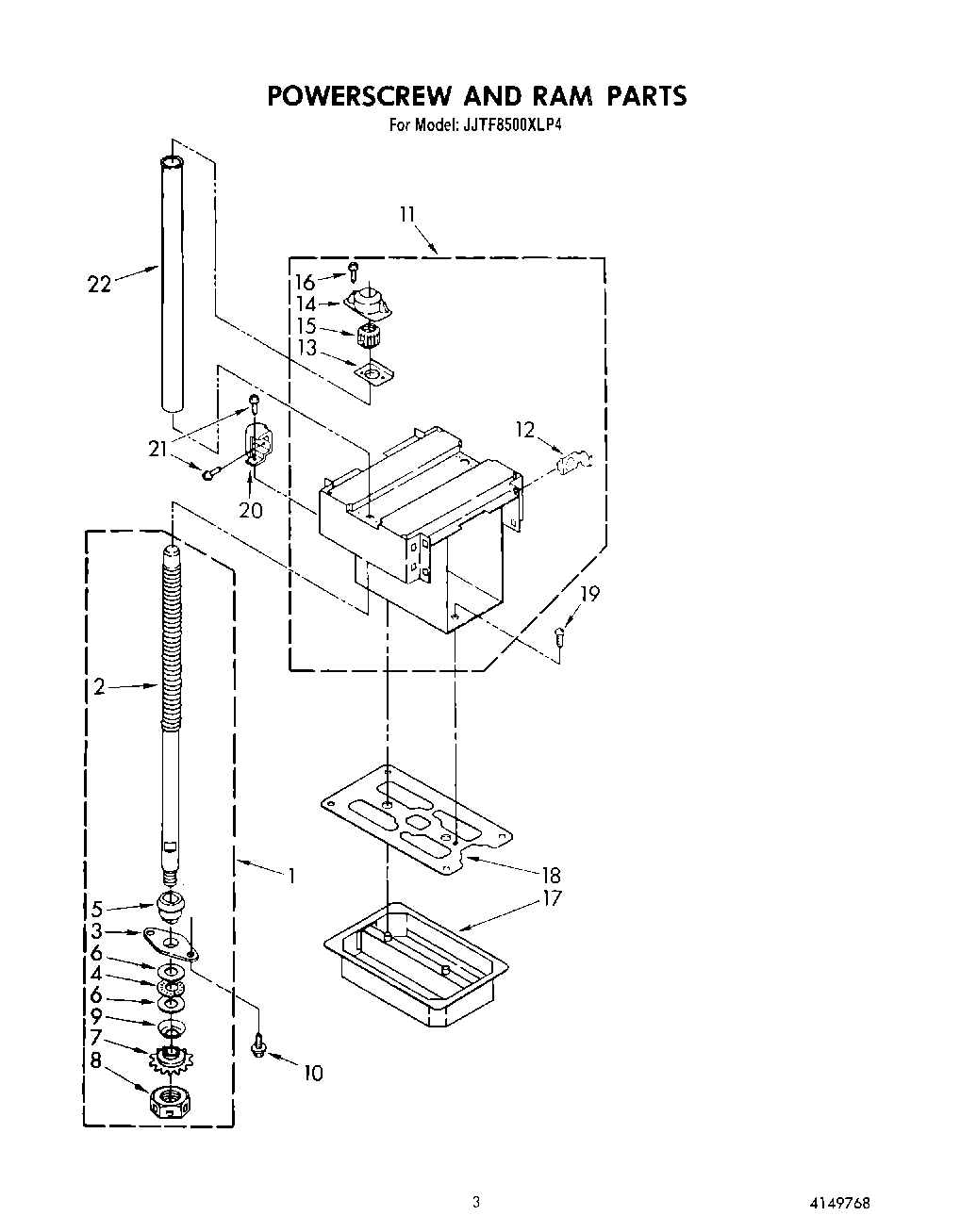

JJTF8500XLP4 03 – POWERSCREW AND RAM

JJTF8500XLP4 03 – POWERSCREW AND RAM

Written by

in

JJTF8500XLP4 03 – POWERSCREW AND RAM

Products

PositionProduct
1Screw, Power Complete Assembly (2)
2Screw, Power (Available Only As Complete Assembly)
3779121 Whirlpool Compactor Plate
4W10917043 Whirlpool Compactor Bearing
5776941 Whirlpool Compactor Power Crew Hub
6775481 Whirlpool Compactor Bearing
7SPROCKET
8Nut, Power Screw (2)
9WP777332 Whirlpool Compactor Washer
10Screw, 1/4-20 x 3/4 (4)
11Ram Assembly
12Pad, Ram (8)
13Plate, Doubler (2)
14Retainer, Nut (2)
15WP777533 Whirlpool Trash Compactor Power Nut
17Cover, Ram
18Wiper, Ram
19SCREW
20Block, Container Stop
21WP90767 Whirlpool Screw
22Protector, Powerscrew (2)
