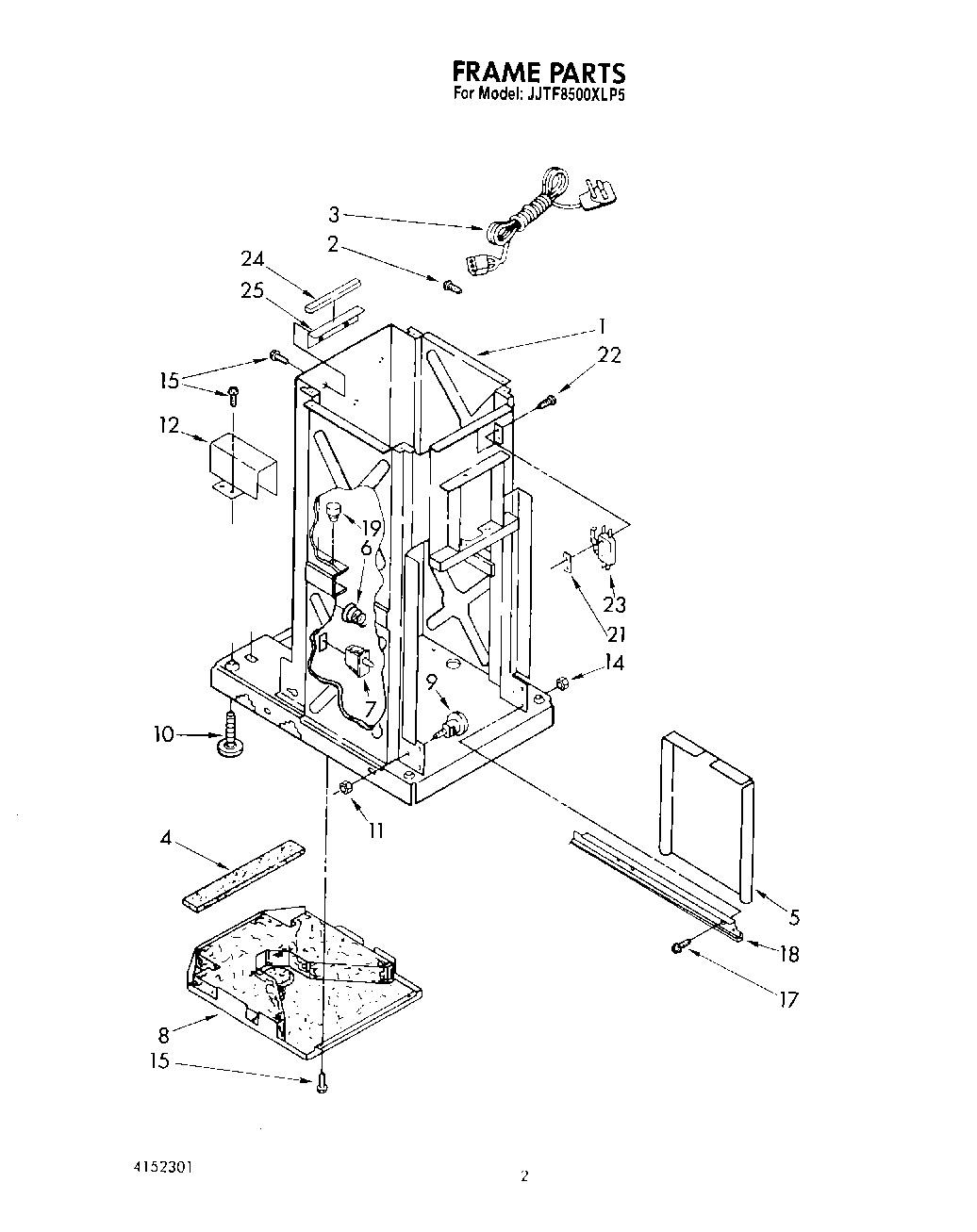

| 1 | Frame (Not a Serviceable Part) |
| 2 | WP488234 Whirlpool Air Conditioner Screw |
| 3 | Cord, Power |
| 4 | Barrier, Glass |
| 5 | Insulation, Inner Panel (2) |
| 6 | WP777180 Whirlpool Compactor Spring |
| 7 | WP4387911 Whirlpool Refrigerator Switch |
| 8 | WP780437 Whirlpool Compactor Bottom Pan |
| 9 | 882688 Whirlpool Compactor Bearing |
| 10 | WPW10001130 Whirlpool Leveling Leg |
| 11 | WP776356 Whirlpool Compactor Nut |
| 12 | Shield, Slide Track (2) |
| 14 | Nut, 6-32 (4) |
| 15 | WP489069 Whirlpool Compactor Screw |
| 17 | WP486754 Whirlpool Compactor Screw |
| 18 | SLIDE |
| 18 | WP9870975 Whirlpool Compactor Slide |
| 19 | Bumper, Ram (4) |
| 21 | Plate, Nut |
| 22 | 777849 Whirlpool Compactor Screw |
| 23 | WP777811 Whirlpool Compactor Directional Switch |
| 24 | Pad, Top Support |
| 25 | Angle, Top Support |
