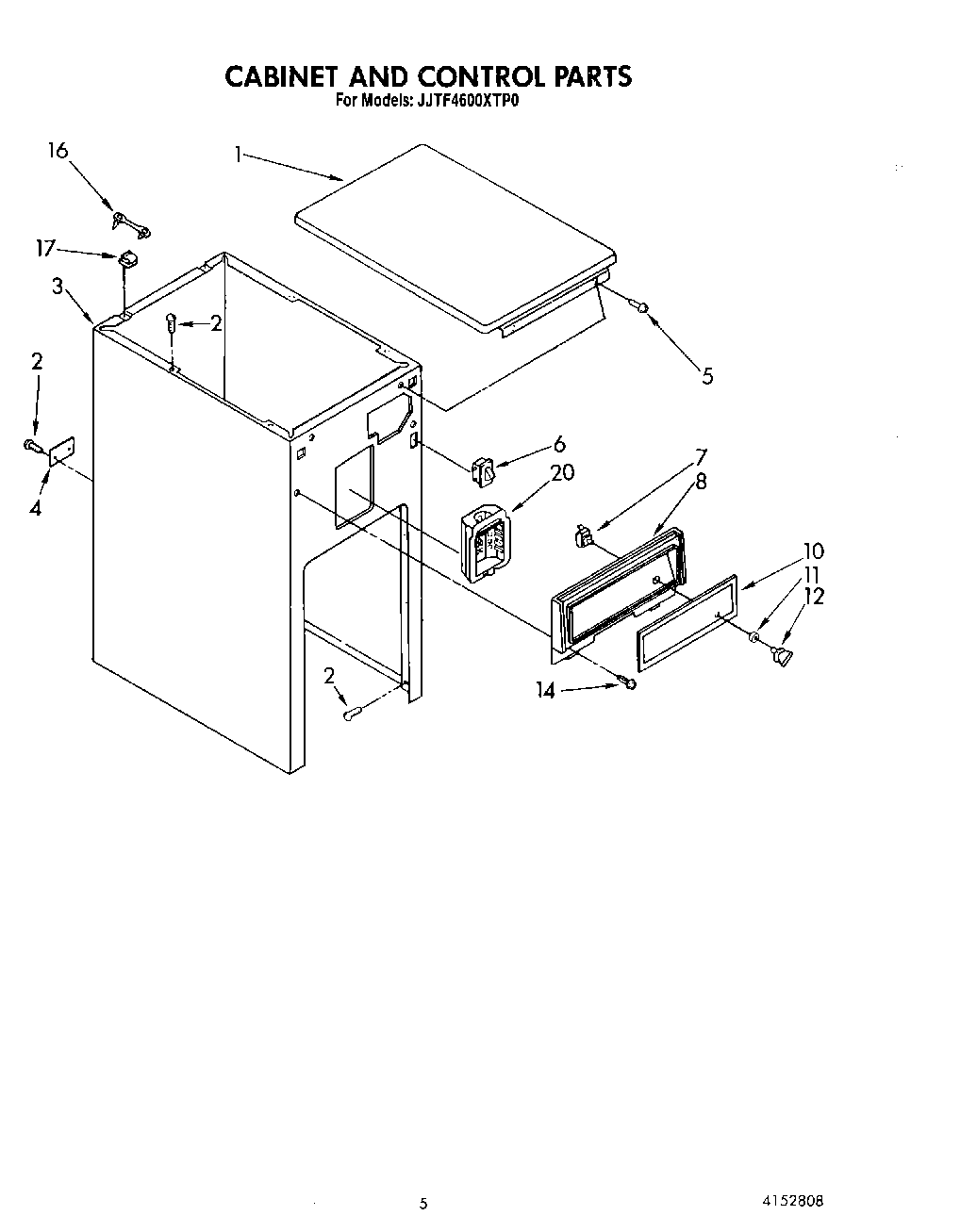

JJTU4600XTP0 05 – CABINET AND CONTROL

Products

Position	Product
1	Top, Cabinet
2	WP489069 Whirlpool Compactor Screw
3	Cabinet
4	Plate, Power Cord
5	Screw, 8-18 x 1/2
6	WP4387911 Whirlpool Refrigerator Switch
7	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8	Escutcheon, Control
10	Insert, Escutcheon
11	WP777383 Whirlpool Compactor Nut
12	Knob, Rotary Switch
14	Screw, 6-20 x 3/8 (2)
16	Clamp, Wire
17	Clip, Top Mount (2)
20	Holder, Deodorant Storage
