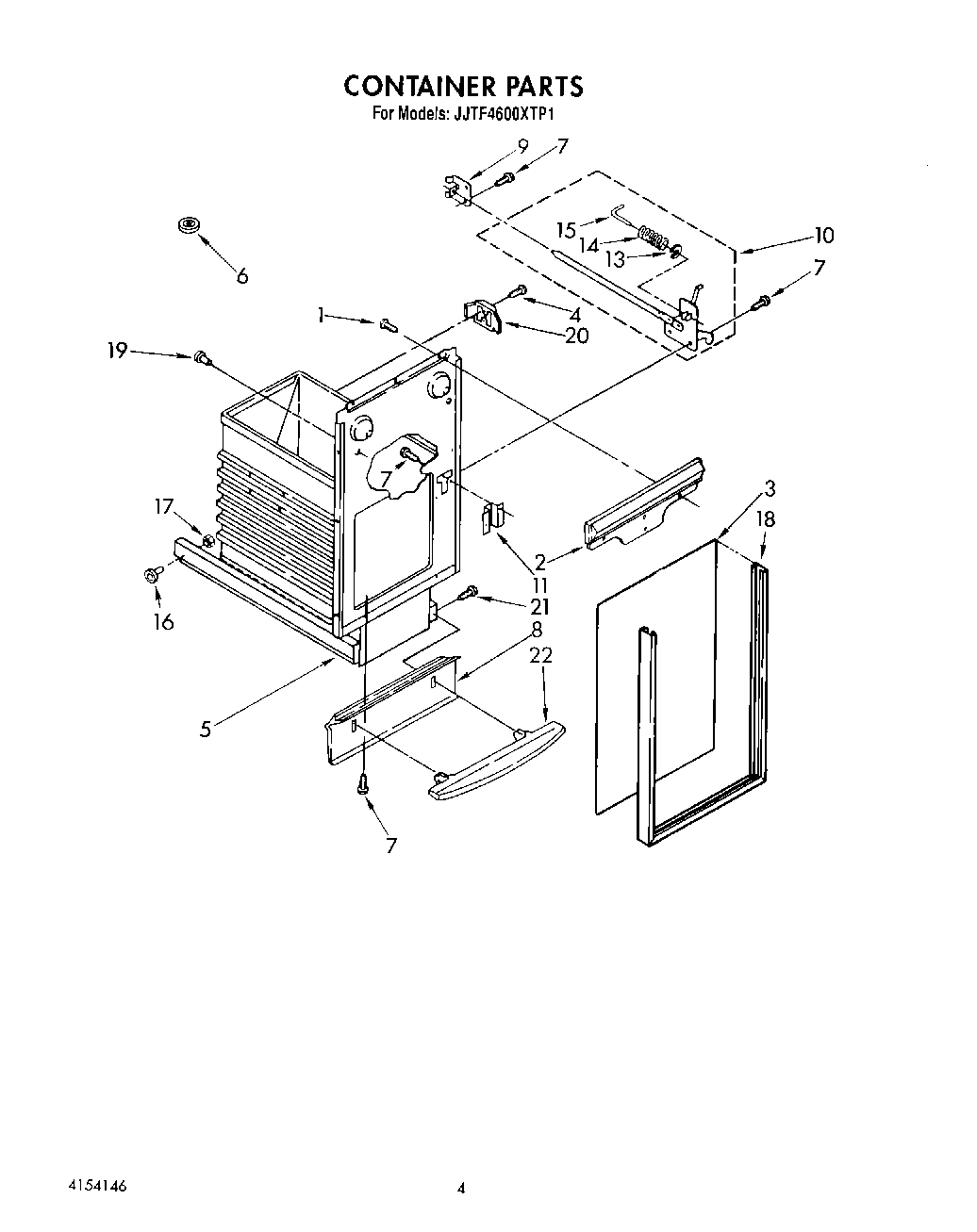

JJTU4600XTP1 04 – CONTAINER

JJTU4600XTP1 04 – CONTAINER

Written by

in

JJTU4600XTP1 04 – CONTAINER

Products

PositionProduct
2WP608732 Whirlpool Compactor Handle
3Panel, Container Front (Almond & Black)
4Screw (2)
5Container Assembly
6Deodorizer, Solid Stick-Ups (2-Pack)
7WP489069 Whirlpool Compactor Screw
8WP777328 Whirlpool Compactor Guard
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
11775665 Whirlpool Compactor Plate Latch
13Ring, “E“
14775736 Whirlpool Compactor Spring
15Pin
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18Trim, Container (Front)
19Bumper, Container (2)
209871125 Whirlpool Compactor Actuator
21WP780263 Whirlpool Compactor Screw
22W11679165 Whirlpool Foot Pedal
