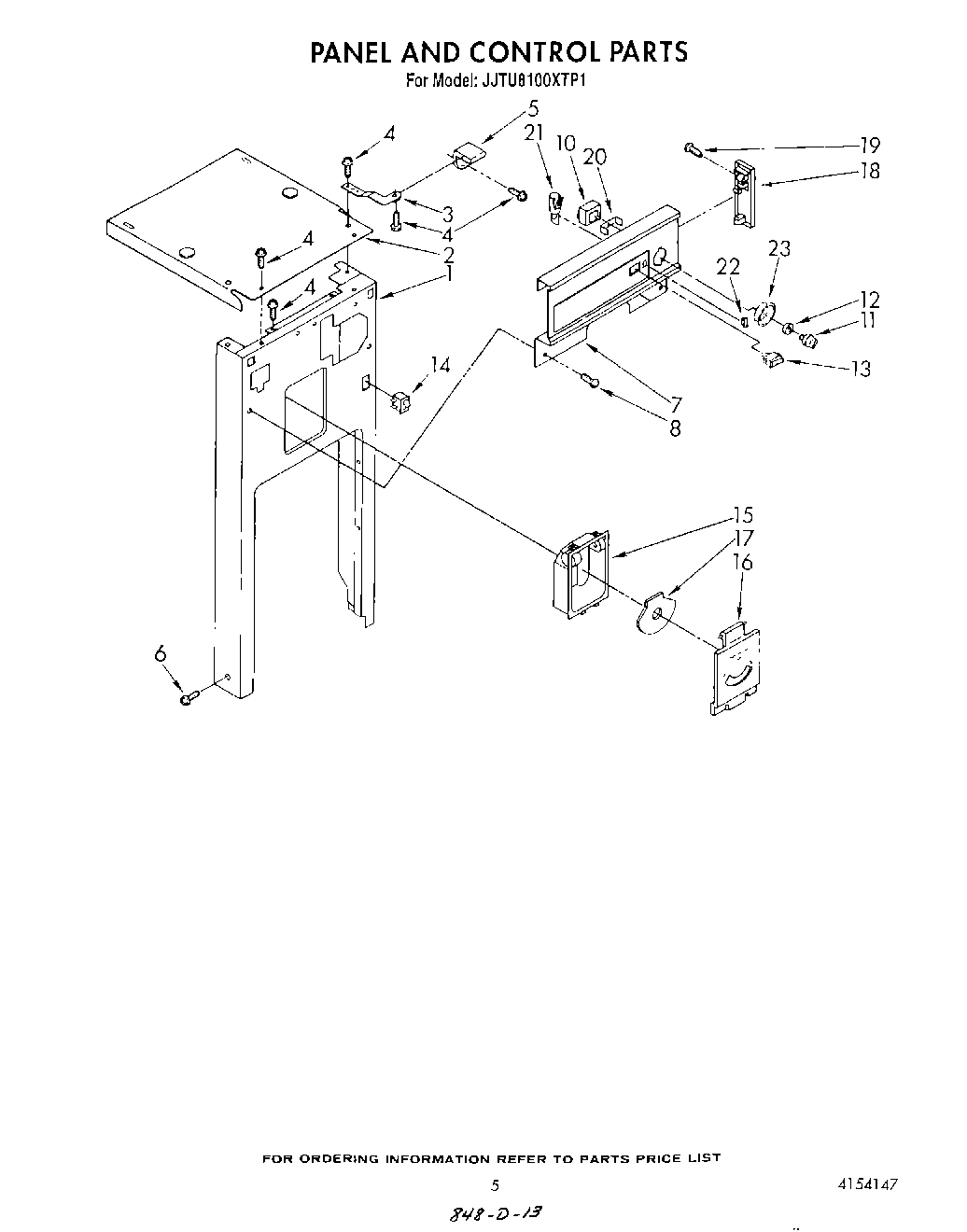

JJTU8100XTP1 05 – PANEL AND CONTROL
Written by
in
JJTU8100XTP1 05 – PANEL AND CONTROL
Products
Position
Product
1
Panel, Front Frame
2
Cover, Top
3
W11729437 Whirlpool Retaining Bracket
4
WP302868 Whirlpool Screw
5
WP780239 Whirlpool Compactor Bracket Retainer
6
WP489069 Whirlpool Compactor Screw
7
Escutcheon, Control
7
Escutcheon, Control (Optional-White)
8
Screw, 6-20 x 3/8 (2)
10
675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11
776594 Whirlpool Power Switch Knob
12
WP777383 Whirlpool Compactor Nut
13
WP4314961 Whirlpool Lite Switch
14
WP4387911 Whirlpool Refrigerator Switch
15
Compartment, Air Flow
16
Cover, Air Flow
17
Dail, Air Flow
18
End Cap, R.H.
18
End Cap, L.H.
20
Bracket, Switch
21
Light, Indicator
22
Lens, Indicator
23
Bezel
←
