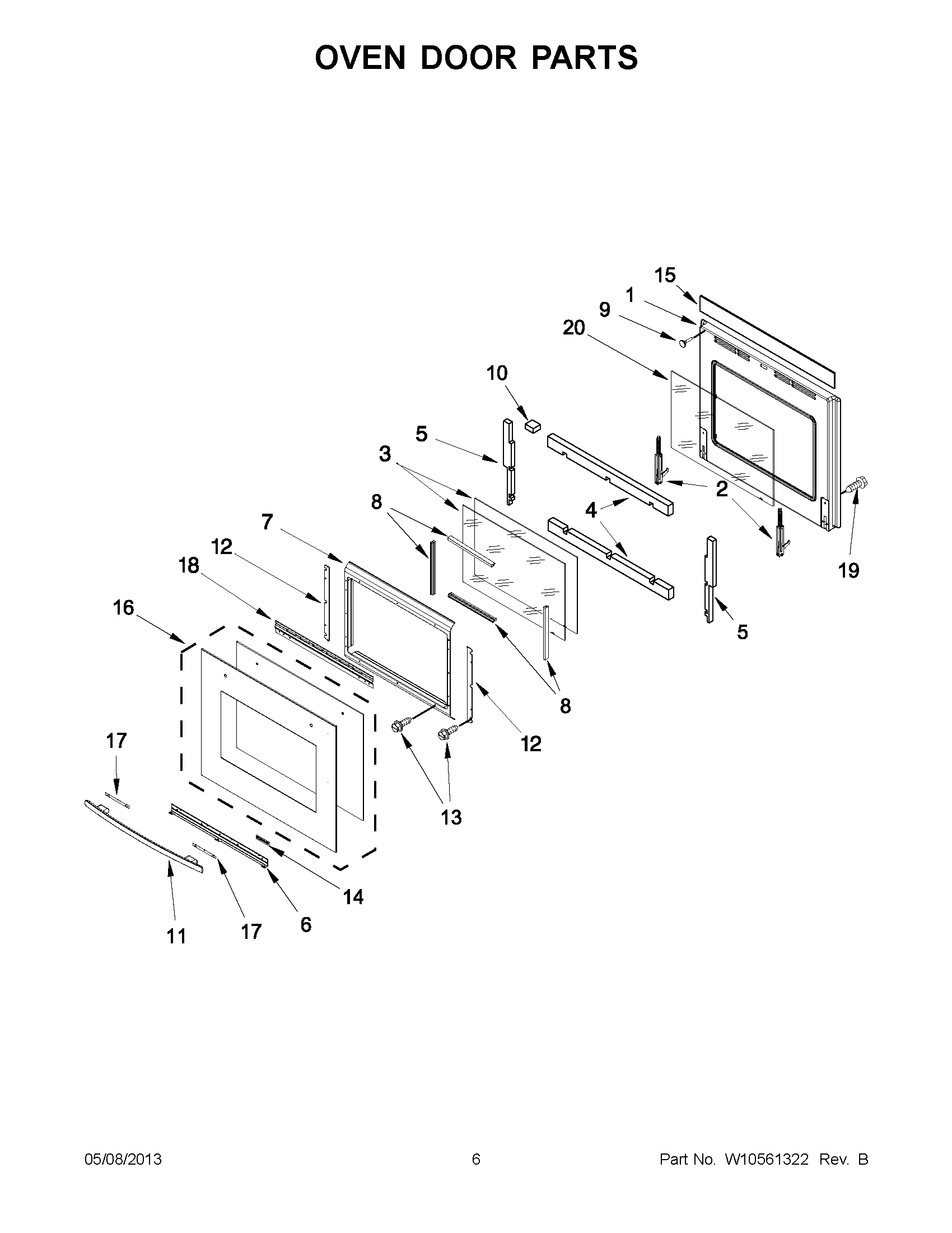

JJW2330WS01 03 – OVEN DOOR PARTS

JJW2330WS01 03 – OVEN DOOR PARTS

Written by

in

JJW2330WS01 03 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10187019
2HINGE, DOOR (2) (STAINLESS)
3MAY W10176100
4MAY W10273676
5MAY W10273591
6BRACKET, DOOR CLIP
7MAY W10176103
8MAY W10305979
9MAY W10176233
10MAY W10296505
11MAY W10186756
12MAY W10186882
13MAY 7101P426- 60
14ASSEMBLY, BADGE (STAINLESS)
15INSULATION, OVEN DOOR
16KIT, GLASS ASSY. (STAINLESS)
17MAY W10213722
18MAY W10176126
19MAY W10254050
20MAY W10213803
