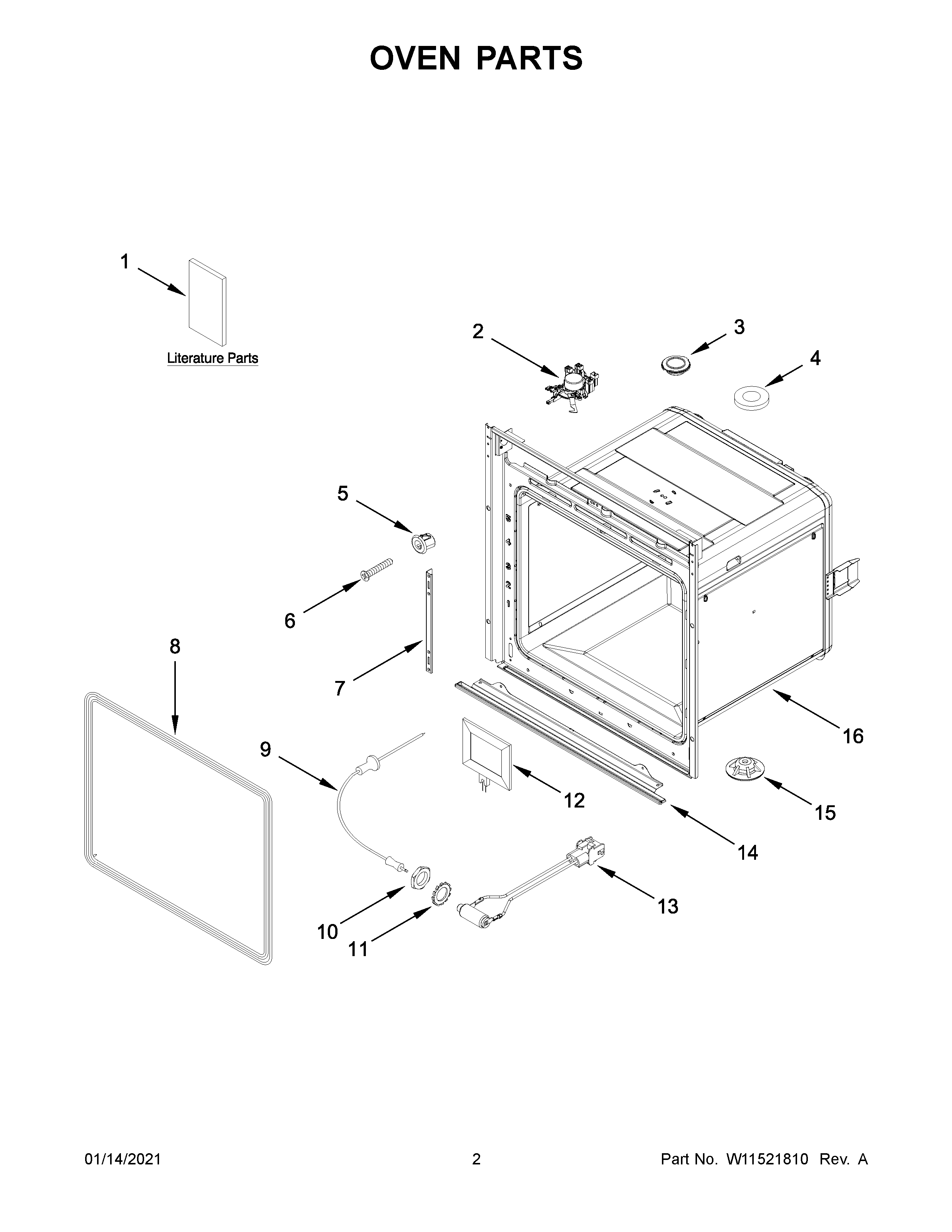

JJW2424HM0 02 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	KIT, POWER CORD (NO PLUG)
1A	USE AND CARE GUIDE
1B	TECH SHEET
1	INSTALLATION INSTRUCTIONS
2	W11347847 Whirlpool Door Latch
3	CAP
4	GASKET, TOP PANEL
5	BUMPER
6	KIT, ADJUSTMENT SCREW
7	RECEIVER, HINGE
8	W10518387 Whirlpool Oven Door Gasket
9	PROBE, MEAT
10	NUT, MEAT PROBE
11	WASHER, MEAT PROBE
12	W11348087 Whirlpool Light Bulb
13	SOCKET, MEAT PROBE WITH HARNESS
14	W10517979 Whirlpool Trim Assembly
15	FOOT, LEVEL OVEN
