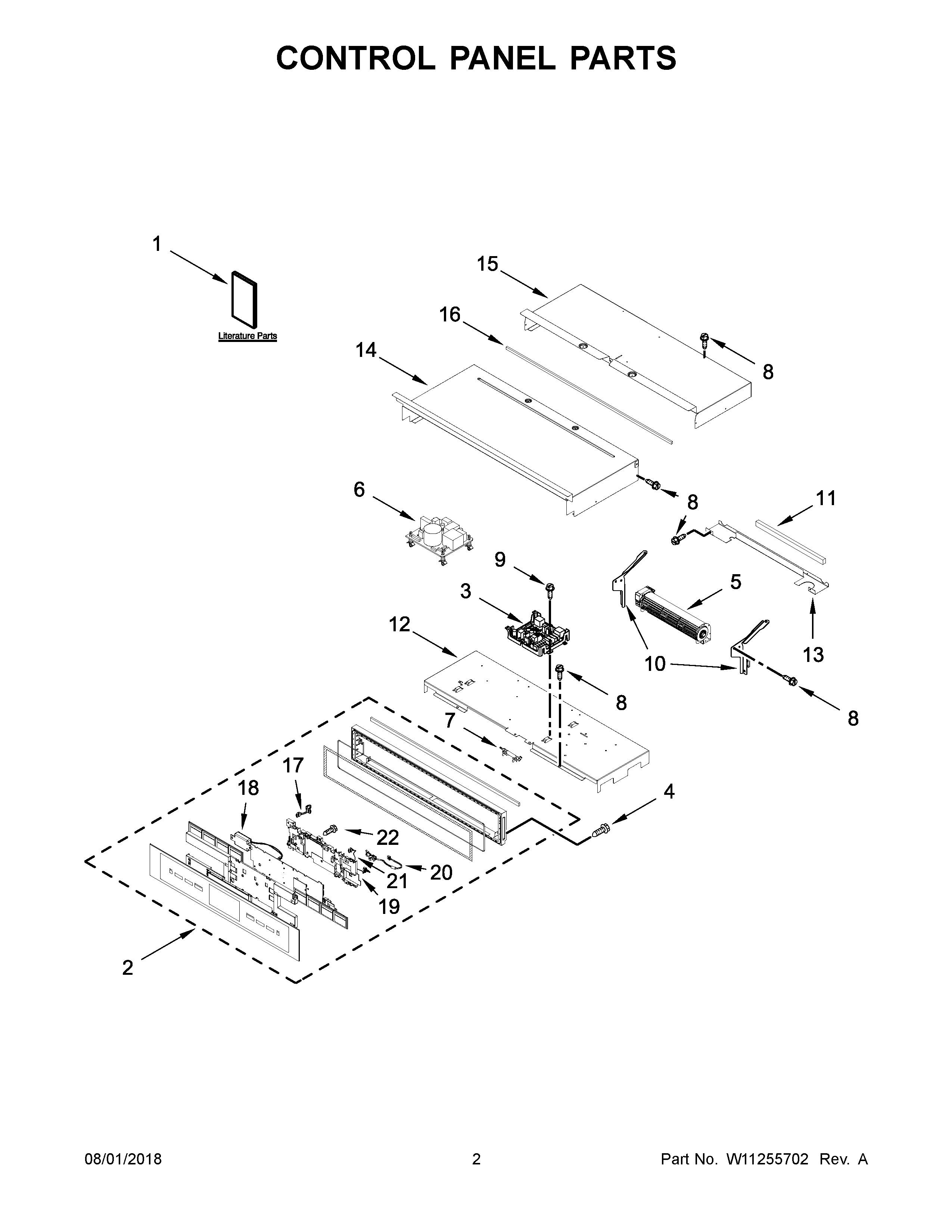

JJW2427DB03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLAMP, CONDUIT
NIHARNESS, DOOR LATCH
NIBRACKET, HARNESS
NIHARNESS, EOL
NILINER (NOT A SERVICEABLE PART)
NICLIP, HARNESS
NIHARNESS, MAIN
NIMAY 4450800
NIHARNESS, SIGNAL
NISTRAP, LEAD GROUND
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1BSHEET, TECH
2MAY W10855942
3CONTROL (WITH POWER SUPPLY)
4Screw (2) (Black)
5BLOWER
6BOARD, POWER SUPPLY
7FUSE, THERMAL
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12TRAY, ELECTRONIC
13CHASSIS, BACK DIVIDER
14CHASSIS, COVER TOP FRONT 27"
15CHASSIS, COVER TOP BACK 27"
16GASKET, RUBBER
17HARNESS, KEYPAD (LEFT TO CENTER)
18ASSEMBLY, SPEAKER
19HOUSING
20JUMPER HARNESS, POWER SUPPLY
21HARNESS, KEYPAD (RIGHT TO CENTER)
22MAY W10489172
