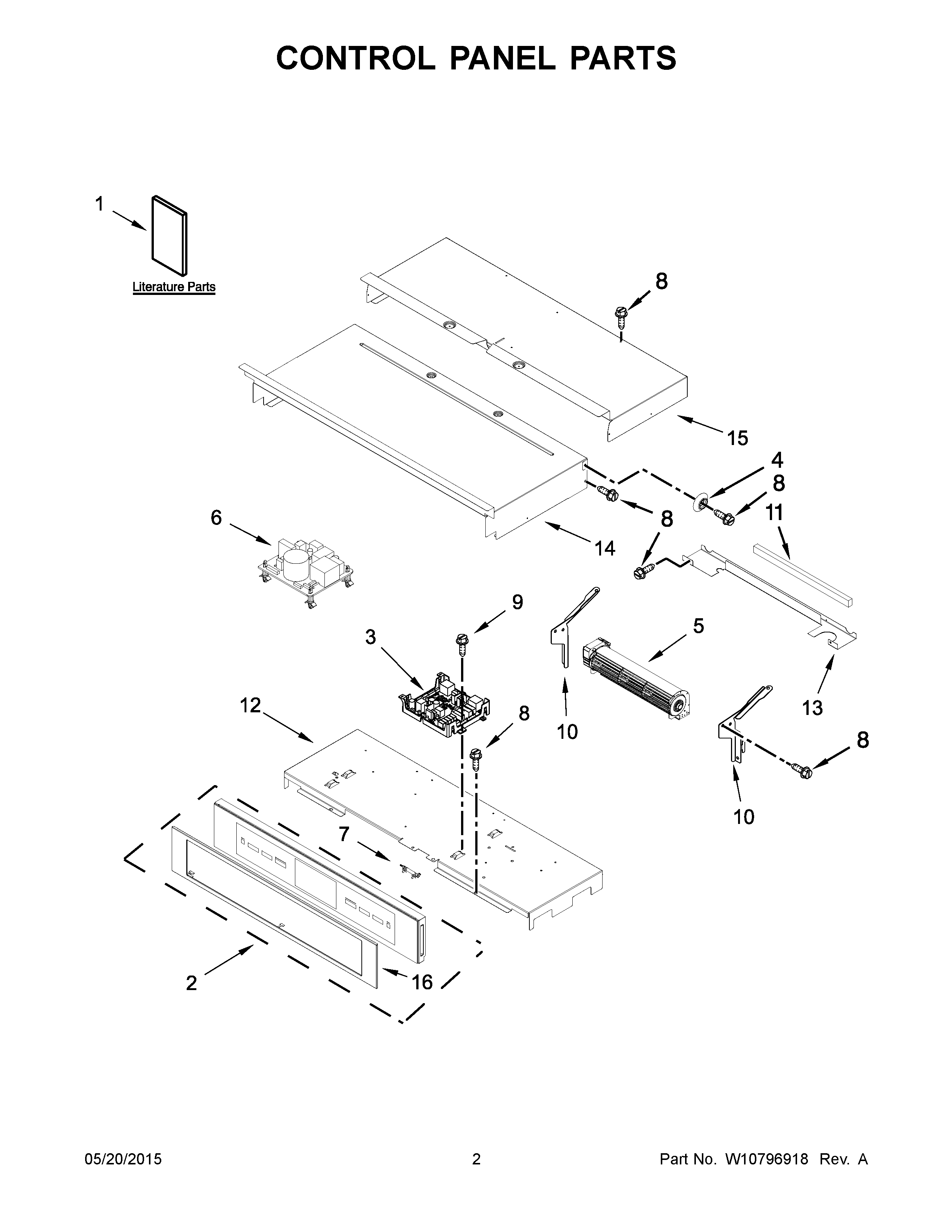

JJW2427DS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, DOOR LATCH
NI	CLAMP, CONDUIT
NI	HARNESS, EOL
NI	HARNESS, SIGNAL
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
NI	BRACKET, HARNESS
NI	STRAP, LEAD GROUND
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2	MAY W10713611
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	BOARD, POWER SUPPLY
7	FUSE, THERMAL
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	MAY W10694467
13	CHASSIS, BACK DIVIDER
14	CHASSIS, COVER TOP FRONT 27"
15	CHASSIS, COVER TOP BACK 27"
16	SKIN, CONTROL PANEL (STAINLESS)
